Abs & TRAC Actuator: Components

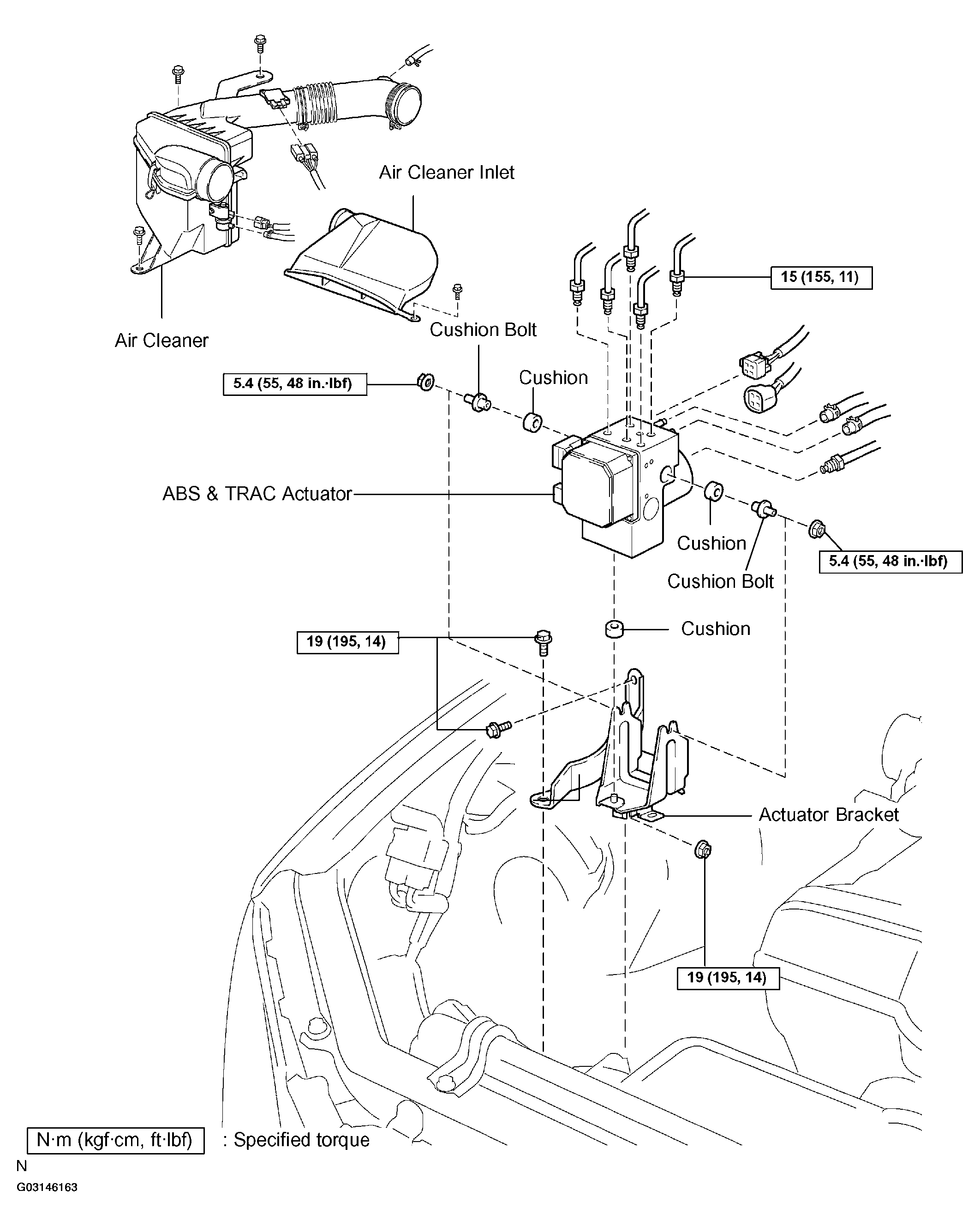

Fig 1: Identifying Components Of ABS & TRAC Actuator

G03146163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
