Engine Compartment

NOTE: Engine compartment fuses are located in the engine compartment. See Fig 1.

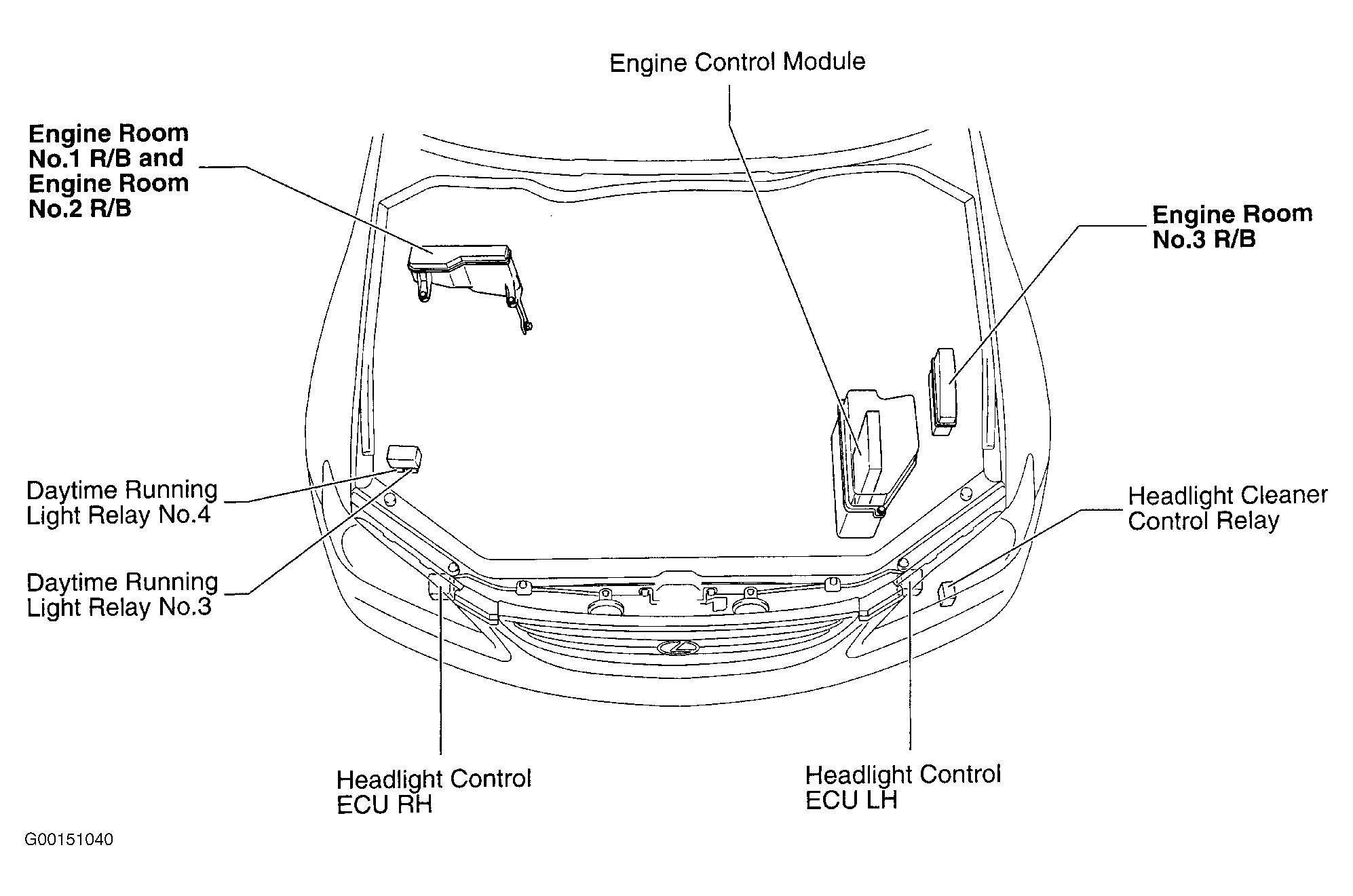

Fig 1: Locating Engine Compartment Electrical Components
G00151040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

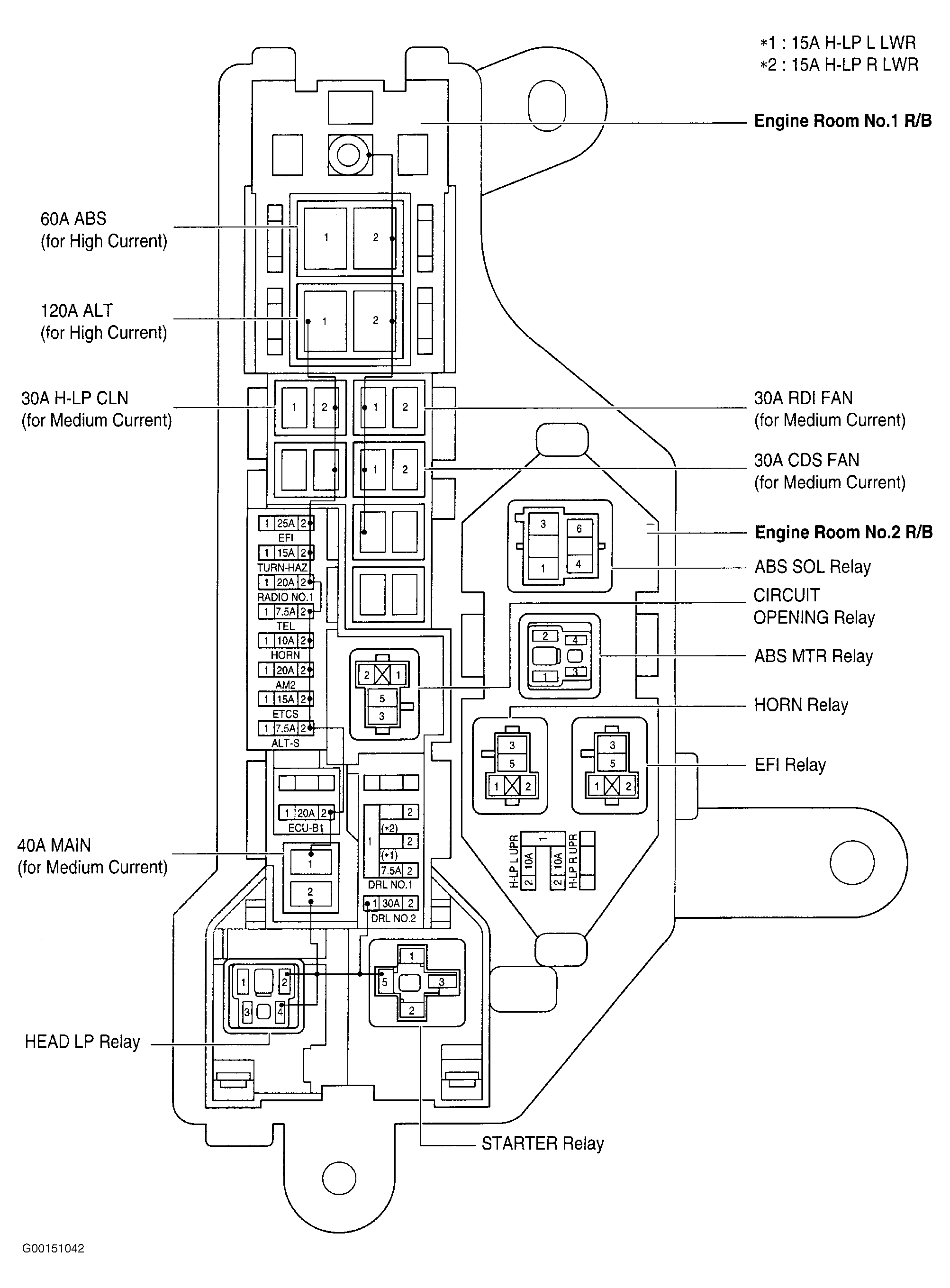

Fig 2: Identifying Engine Compartment No.1 & No.2 R/B Components
G00151042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

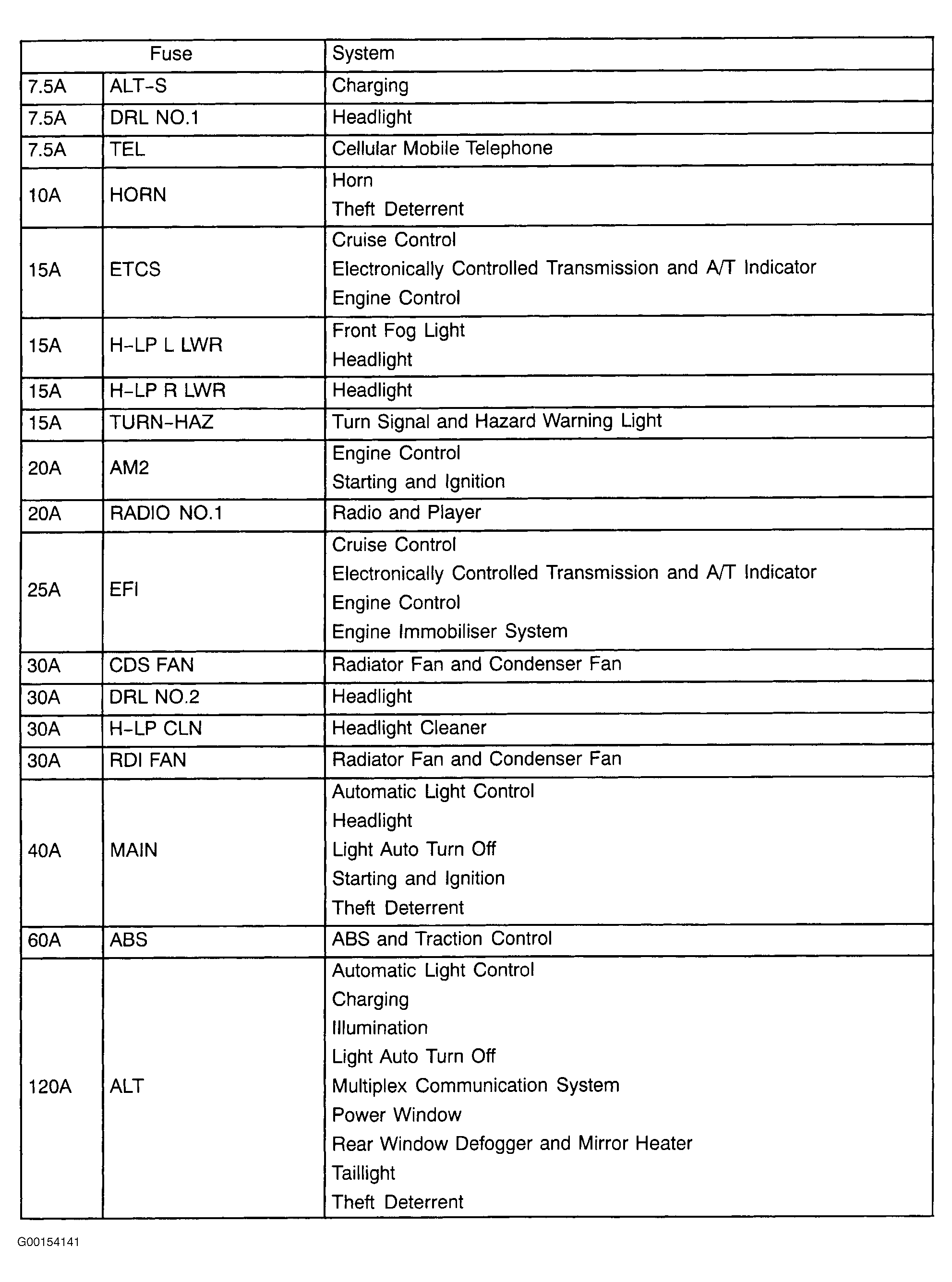

Fig 3: Engine Compartment No. 1 R/B Legend
G00154141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Compartment No. 2 R/B Legend
G00154142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

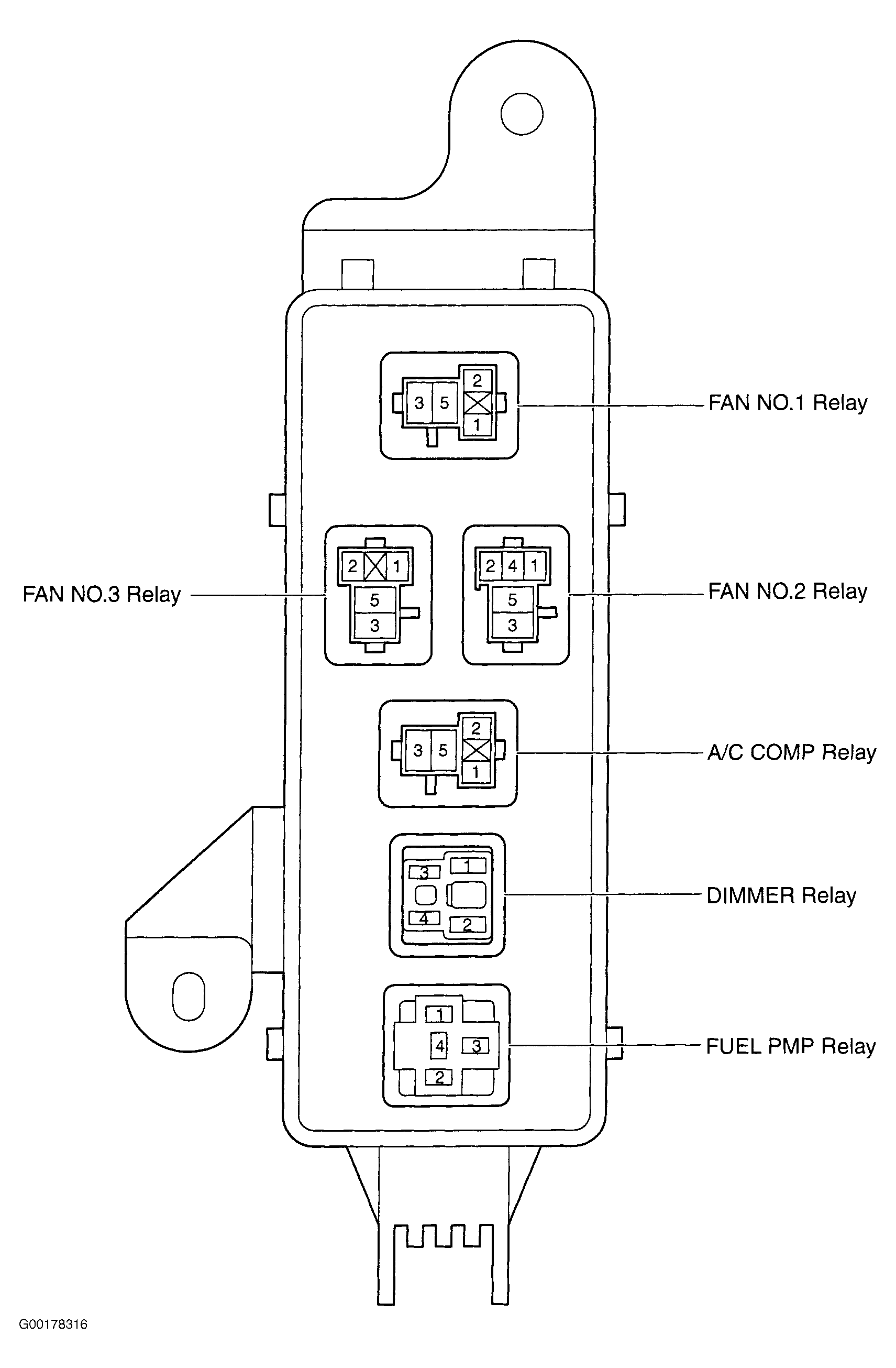

Fig 5: Identifying Engine Compartment No. 3 R/B Components
G00178316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
