Multiplex Control Systems
›
Component Locations
Component Locations
NOTE:
For component locations, see
Fig 1
-
Fig 4
.
Fig 1: Identifying Multiplex Control System Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

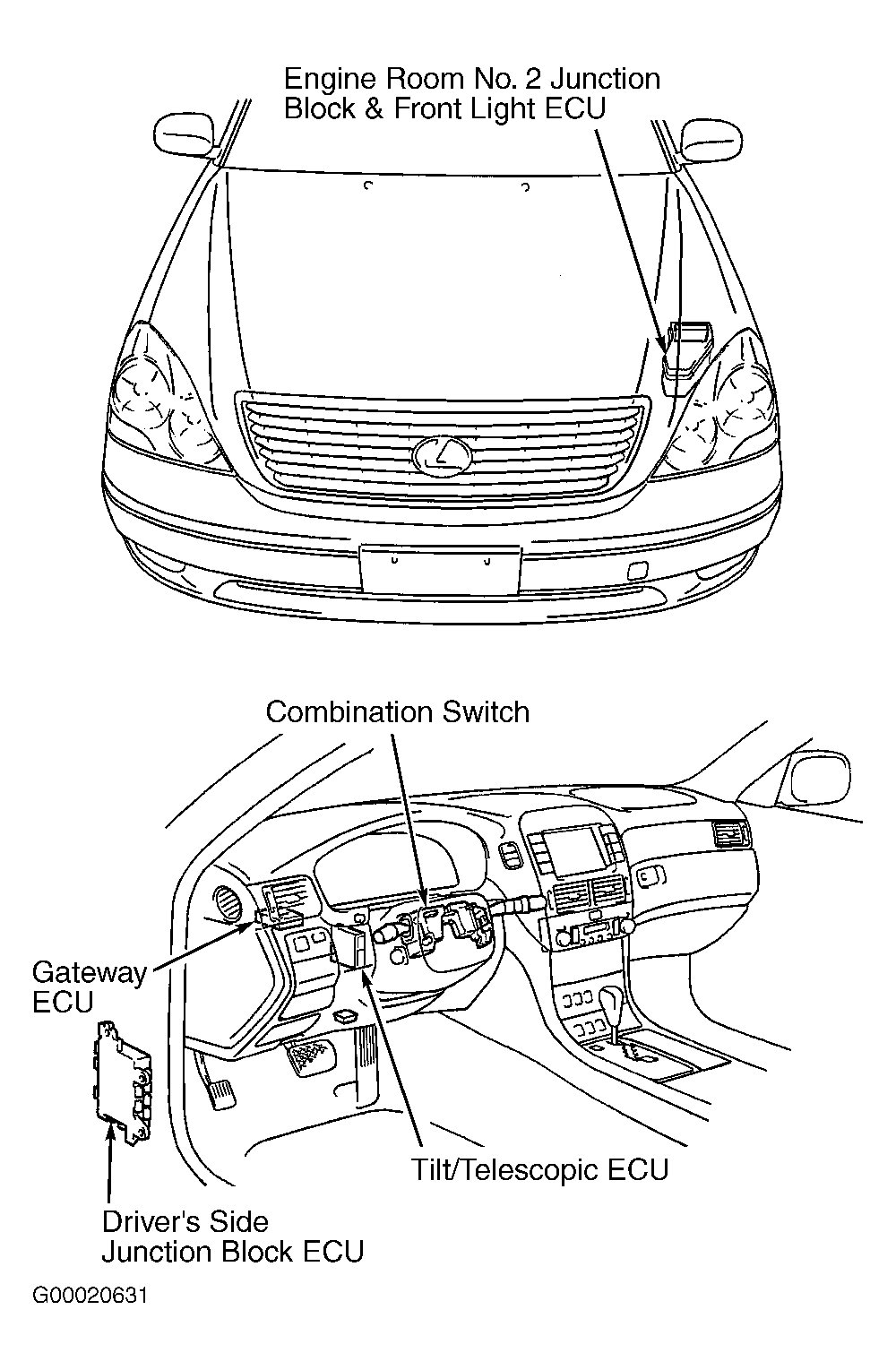

Fig 2: Identifying Multiplex Control System Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

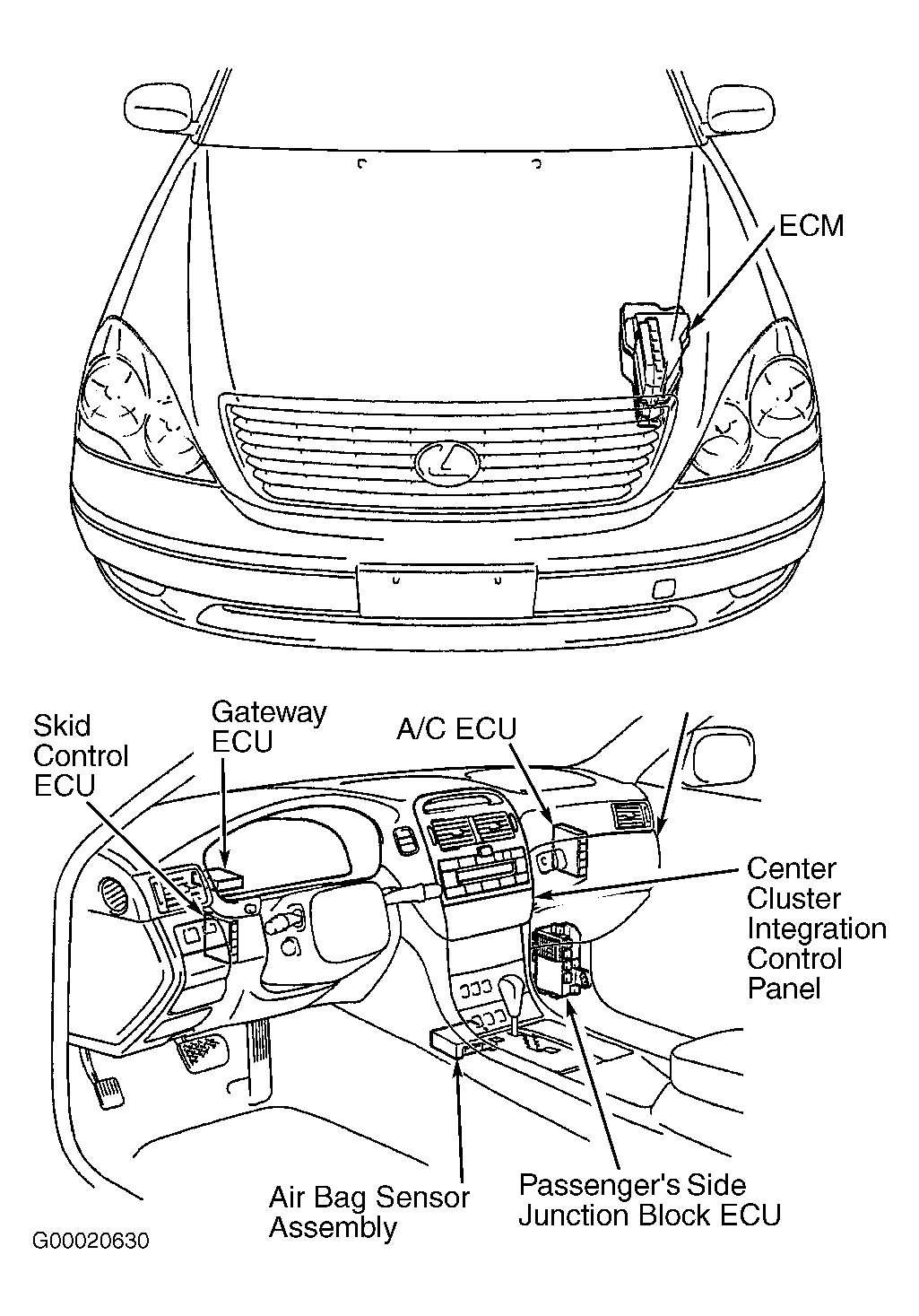

Fig 3: Identifying Multiplex Control System Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

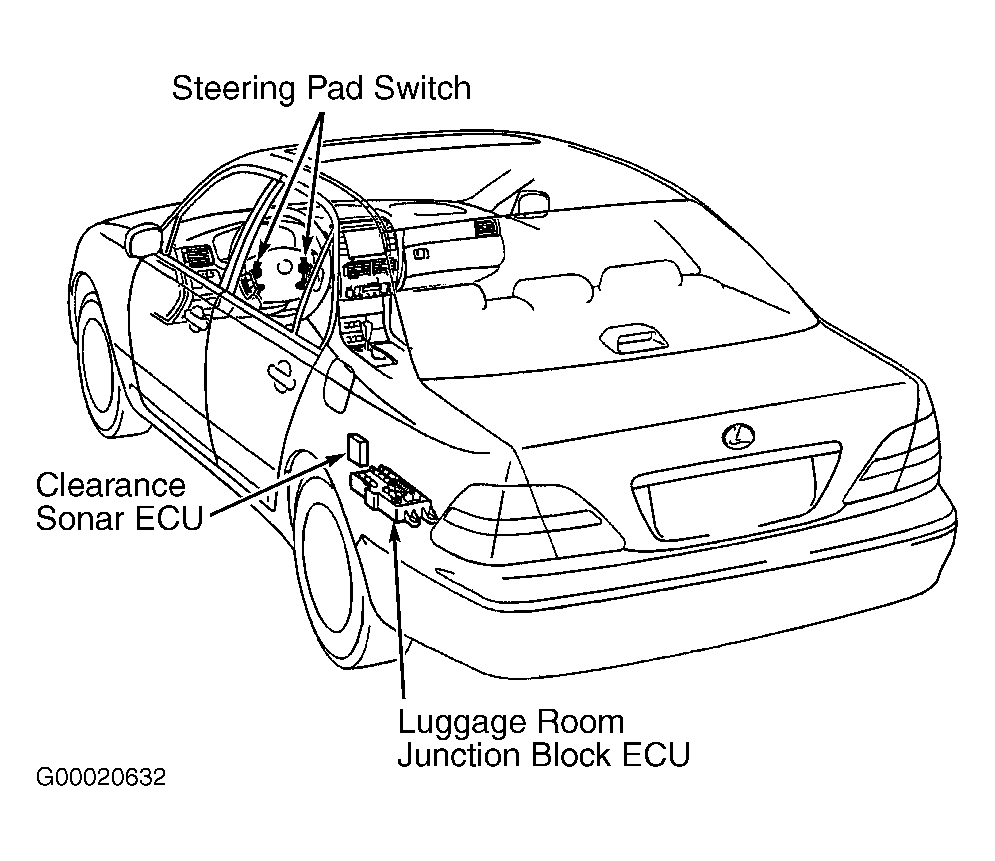

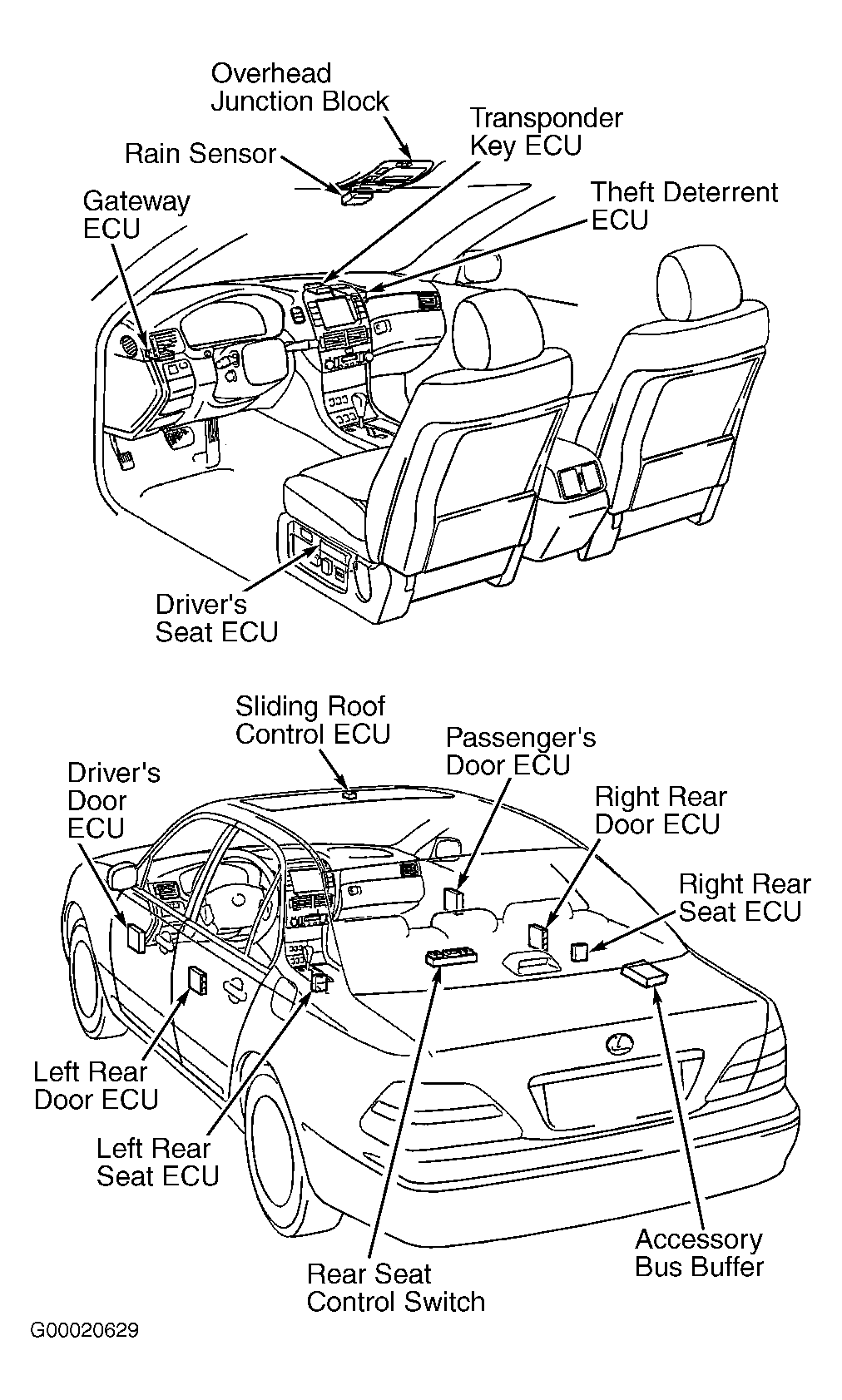

Fig 4: Identifying Multiplex Control System Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
