Terminals Of Ecu

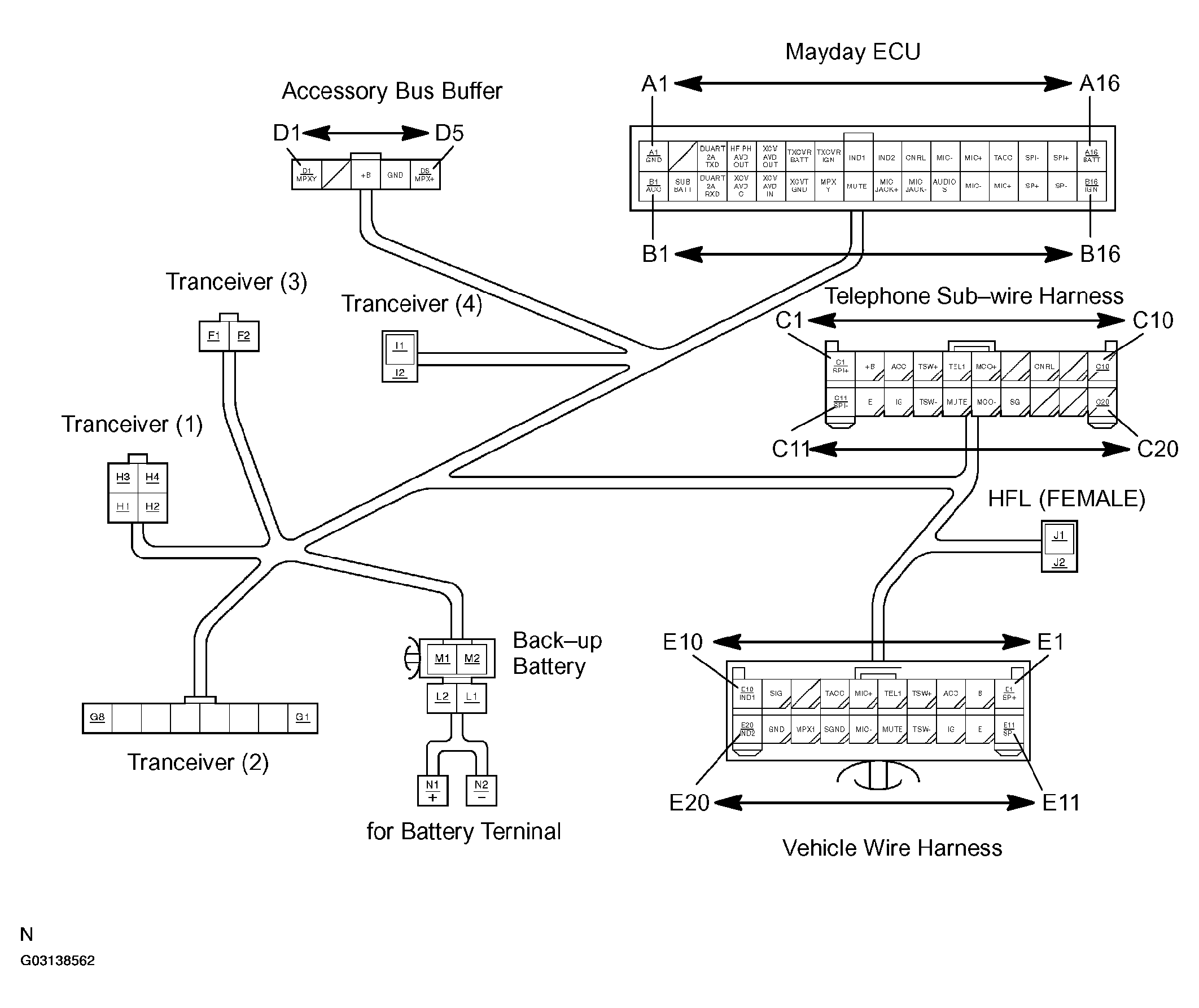

  1. CONNECTORS
    Fig 1: Identifying ECU Connector Terminals
    G03138562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

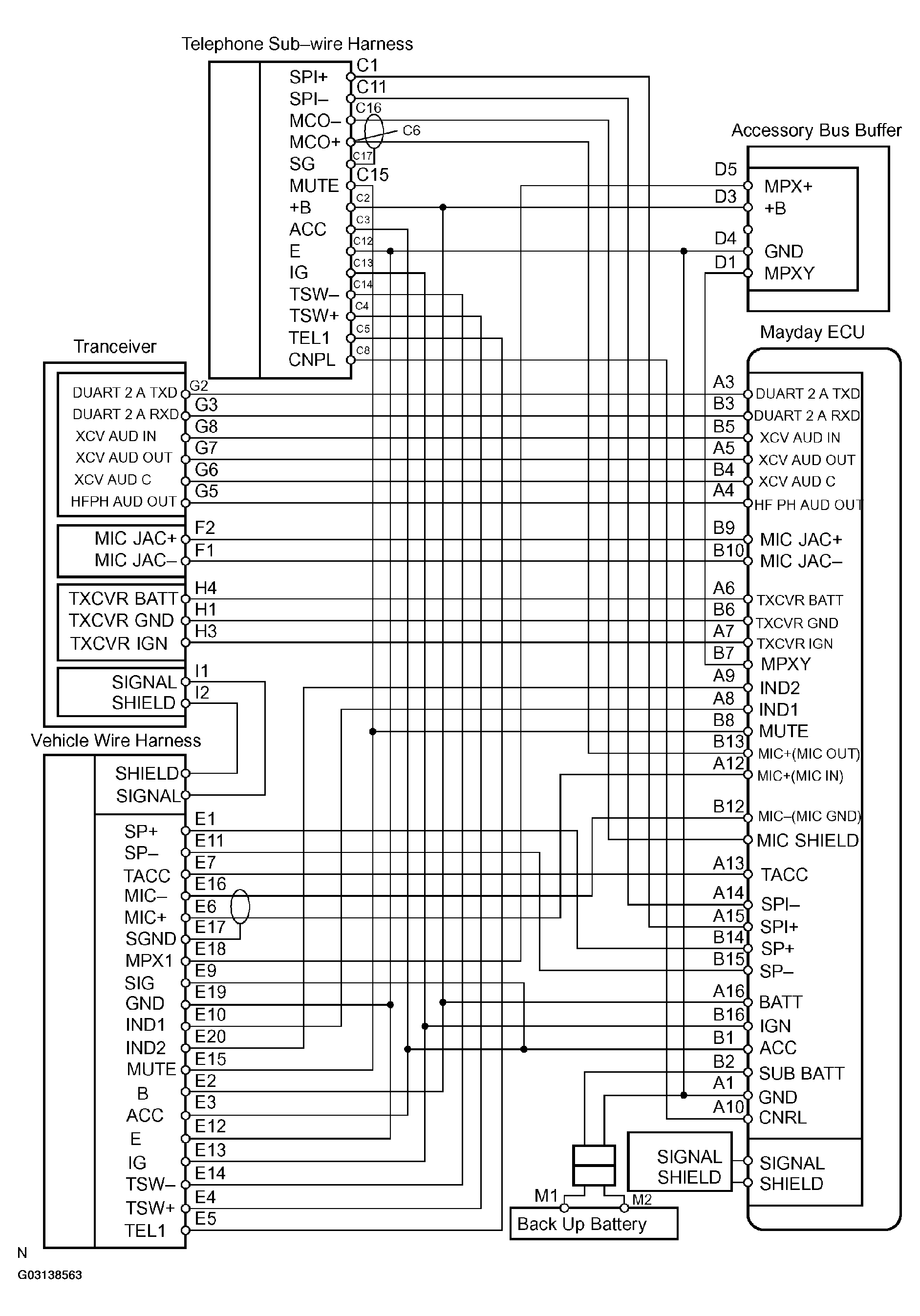

  2. WIRING DIAGRAMS
    Fig 2: ECU Wiring Diagrams
    G03138563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
