Component Locations
Component Locations
NOTE:
For component locations, see
Fig 1
.

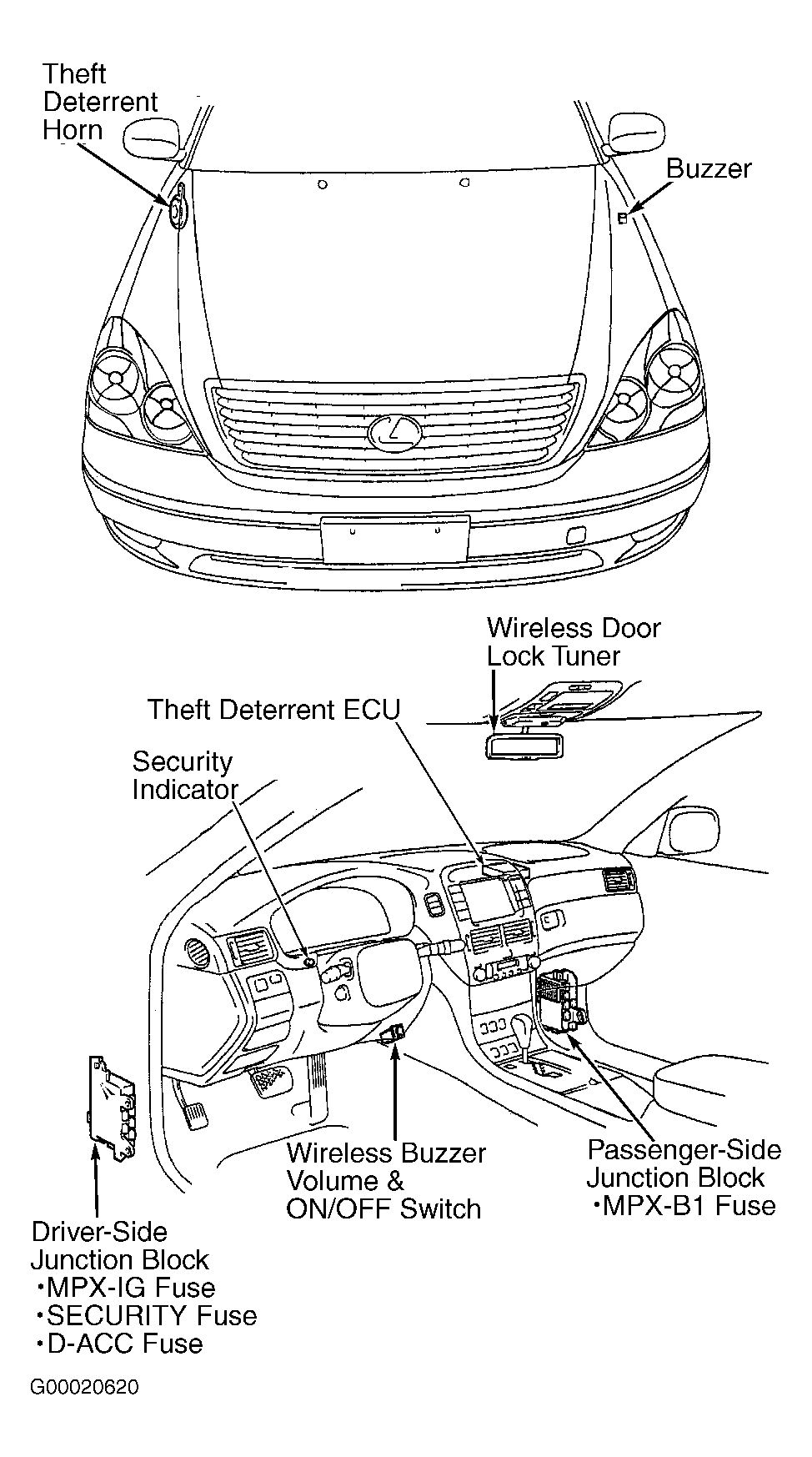

Fig 1: Locating Anti-Theft System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
