Engine Compartment (Relay Blocks)

For relay block locations, see Figure.

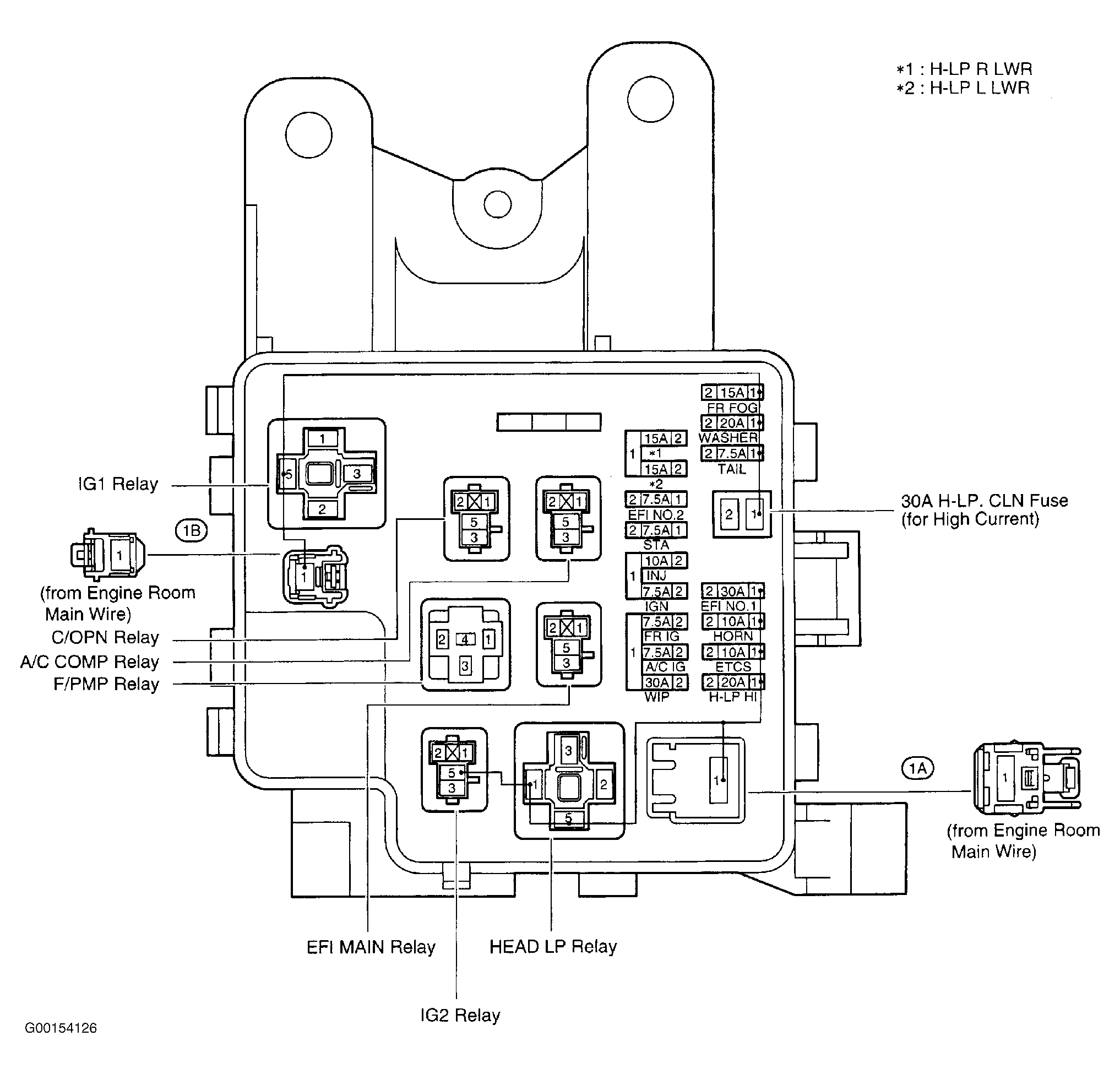

Fig 1: Identifying Engine Room No. 1 R/BComponents

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

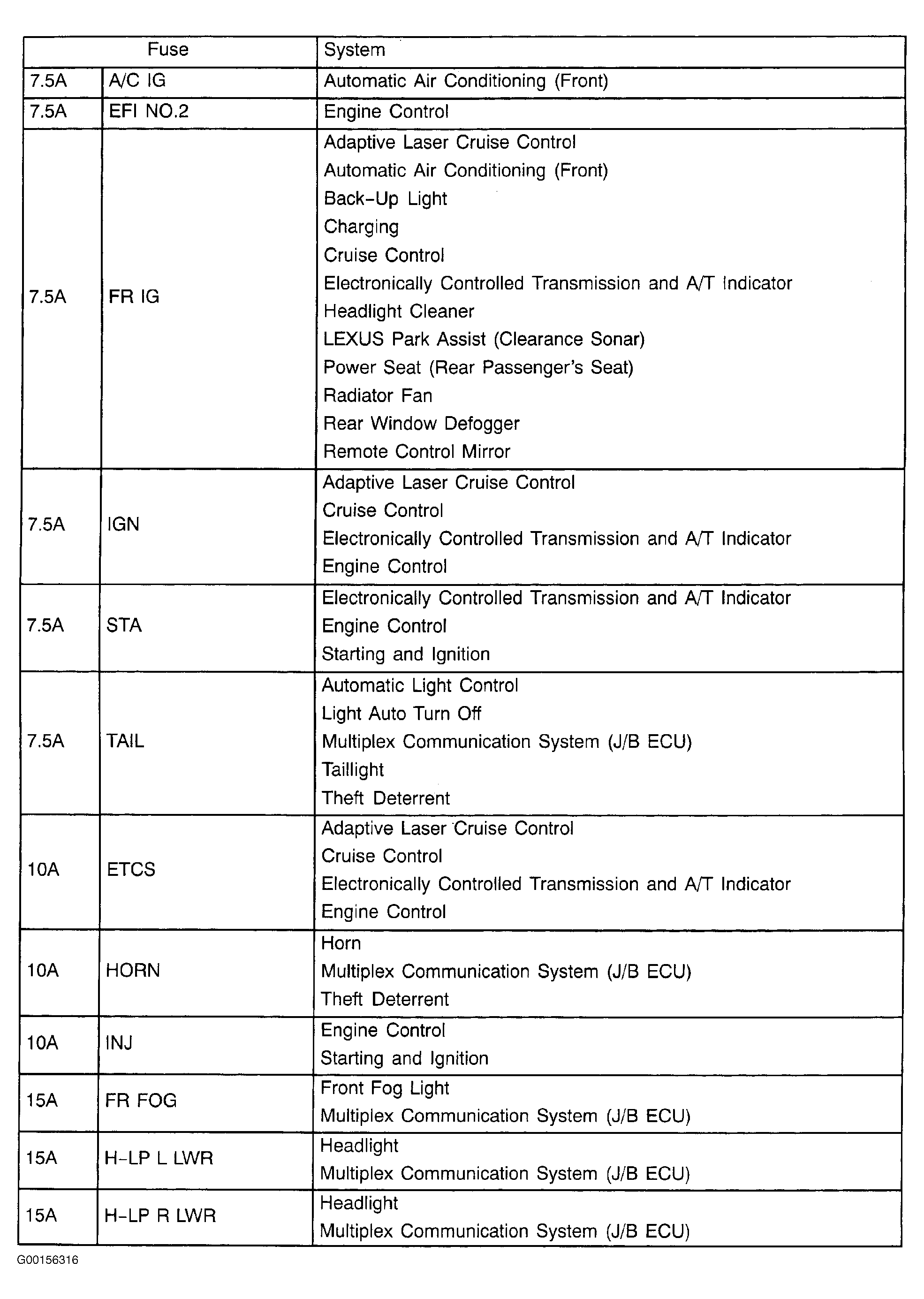

Fig 2: Engine Room No. 1 R/B Legend (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

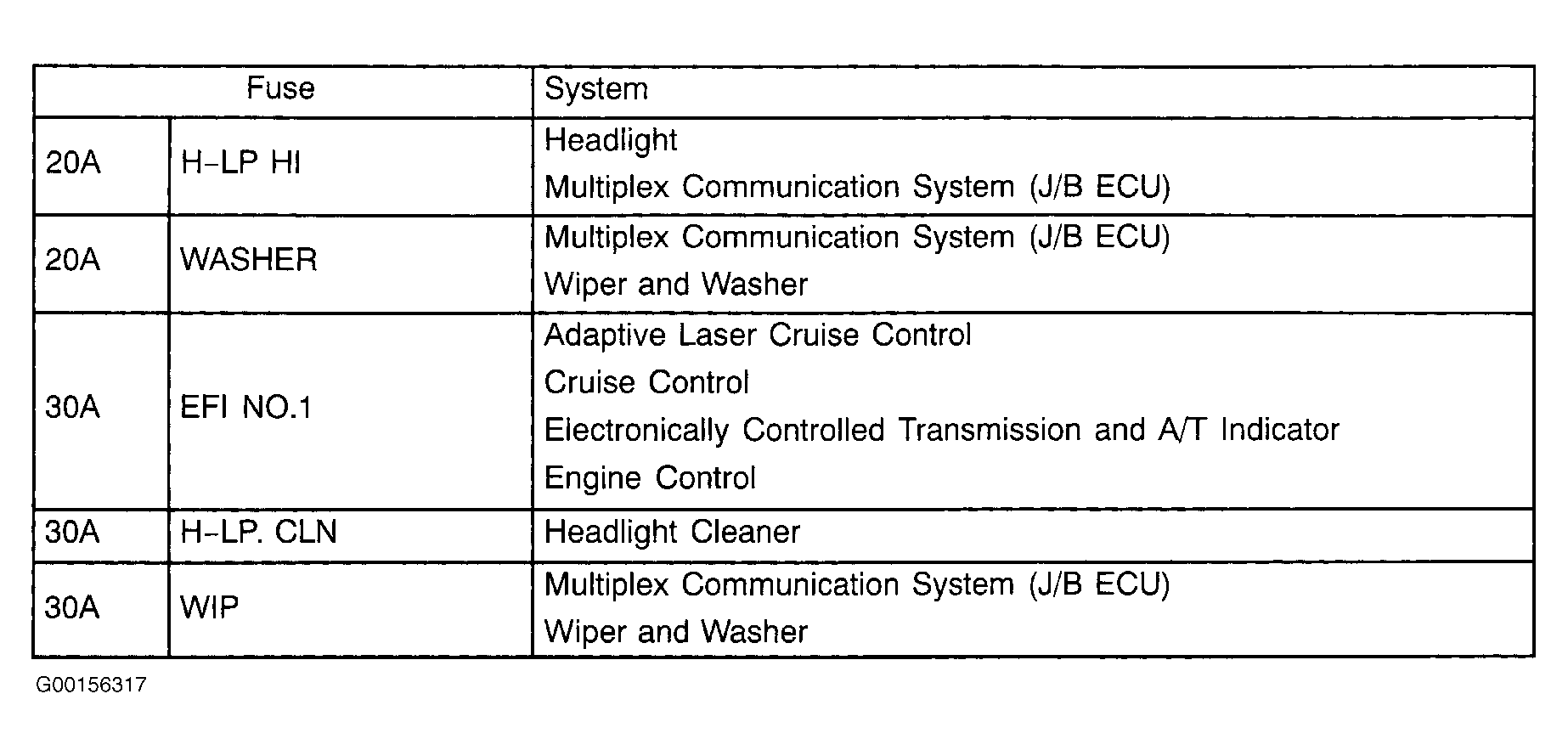

Fig 3: Engine Room No. 1 R/B Legend (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

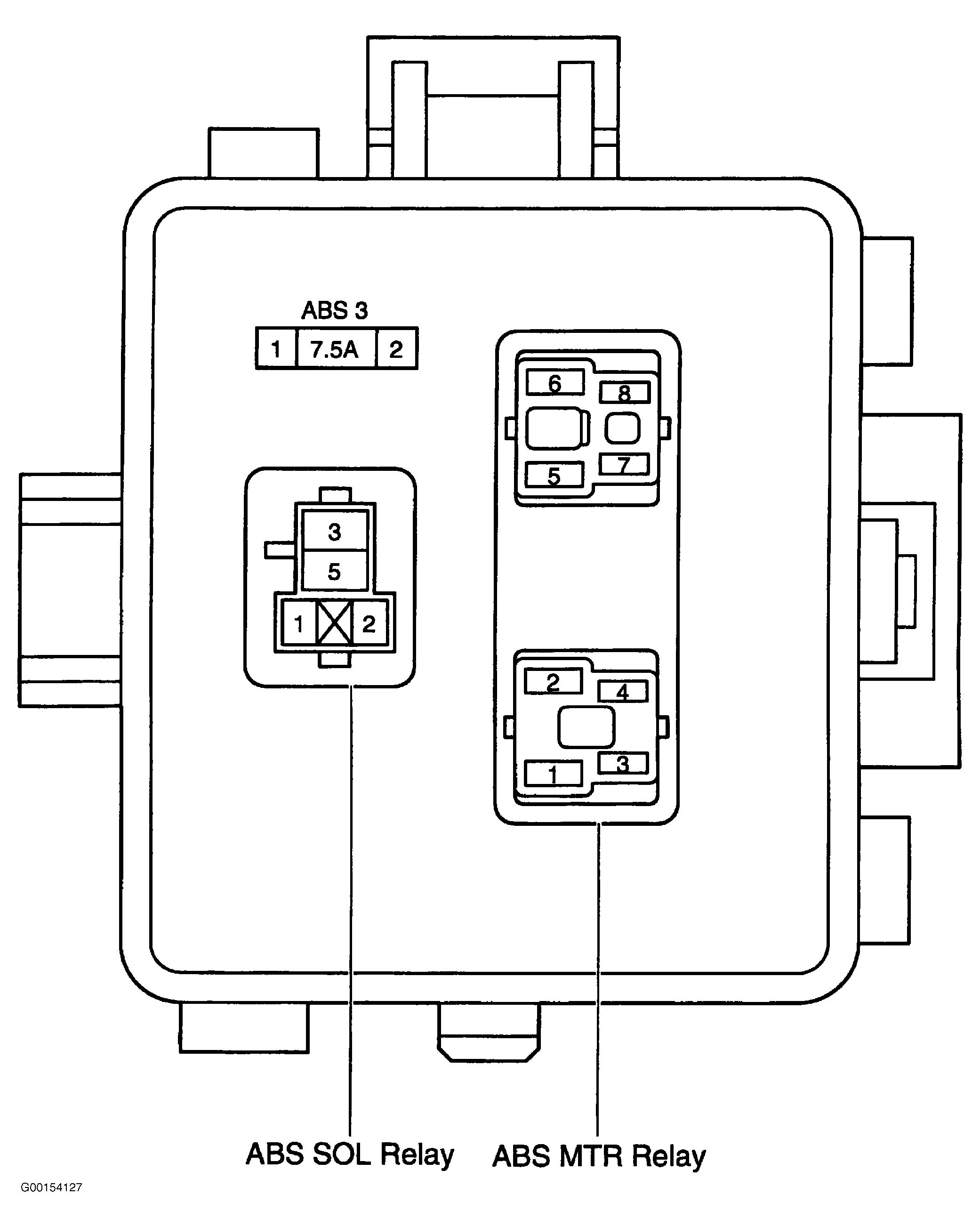

Fig 4: Identifying Engine Room No. 3 R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Room No. 3 R/B Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
