Cooling System (Mechanical): Radiator: Disassembly

1. Remove the drain plug.
2. Remove the O-ring.

SST 09230-01010

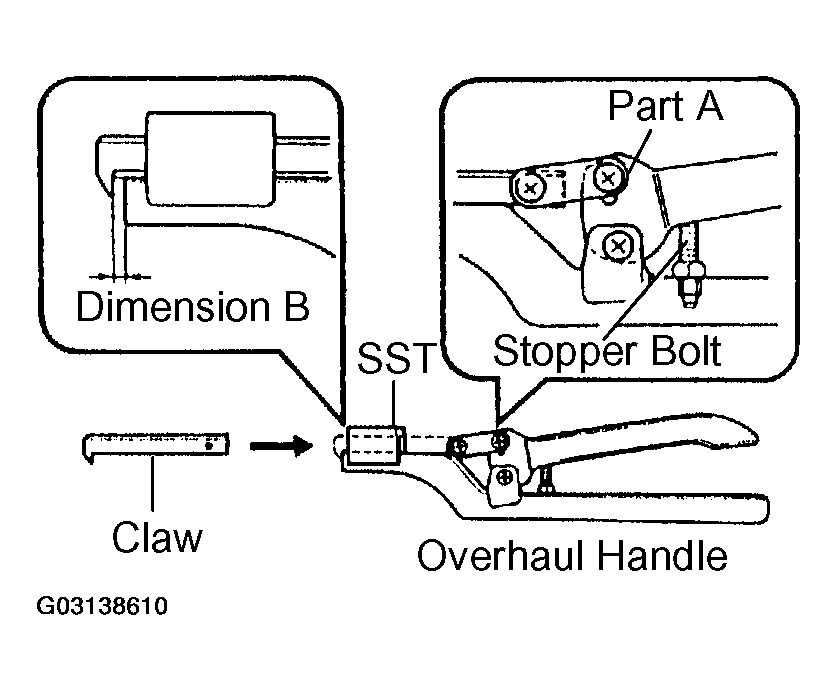

1. Install the claw to the overhaul handle, inserting it in the hole in part A as shown in the diagram.
2. While gripping the handle, adjust the stopper bolt so that dimension B is as shown in the illustration.

   Dimension B: 0.2 -- 0.3 mm (0.008 -- 0.012 in.)

   CAUTION: If this adjustment is not done the claw may be damaged.
   Fig 1: Installing Claw To Overhaul Handle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

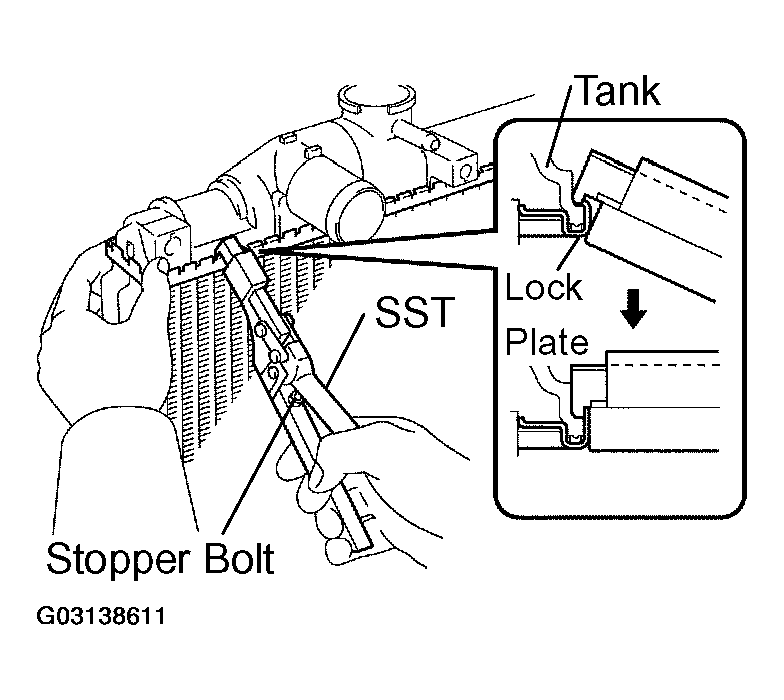

Using SST to release the caulking, squeeze the handle until stopped by the stopper bolt.

Fig 2: Squeezing Handle Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09230-01010

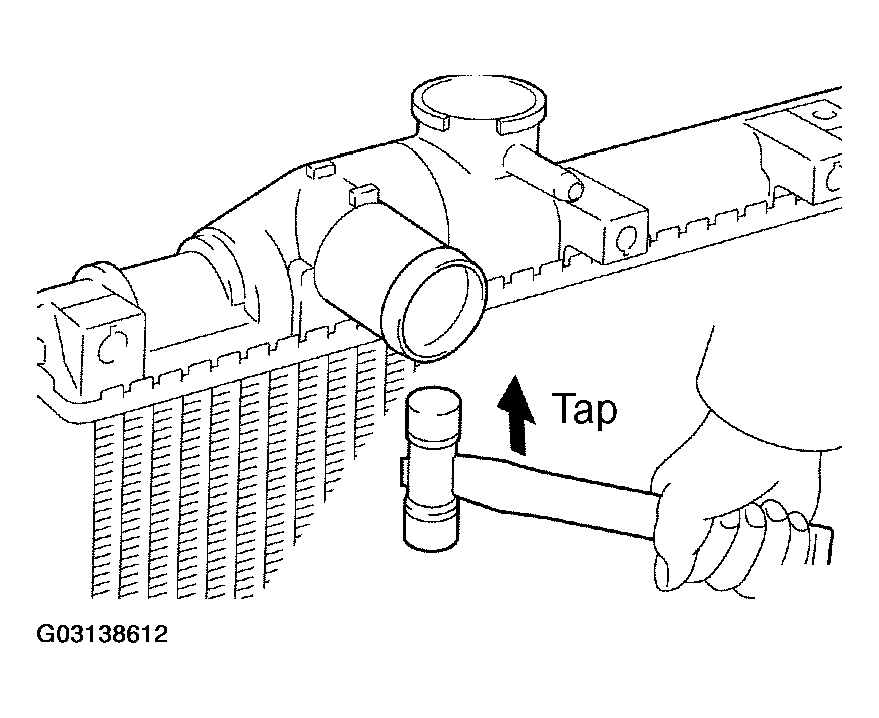

Lightly tap the bracket of the radiator (or radiator inlet or outlet) with a soft-faced hammer, and remove the tank and the O-ring.

Fig 3: Removing Tanks And O-Rings

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 inlet sub-assembly.
Fig 4: Removing Oil Cooler And O-Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the oil cooler and 2 O-rings.
