Rear A/C Control Assembly: Removal

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat center arm rest cover.
1. Slide the cooling box cover.

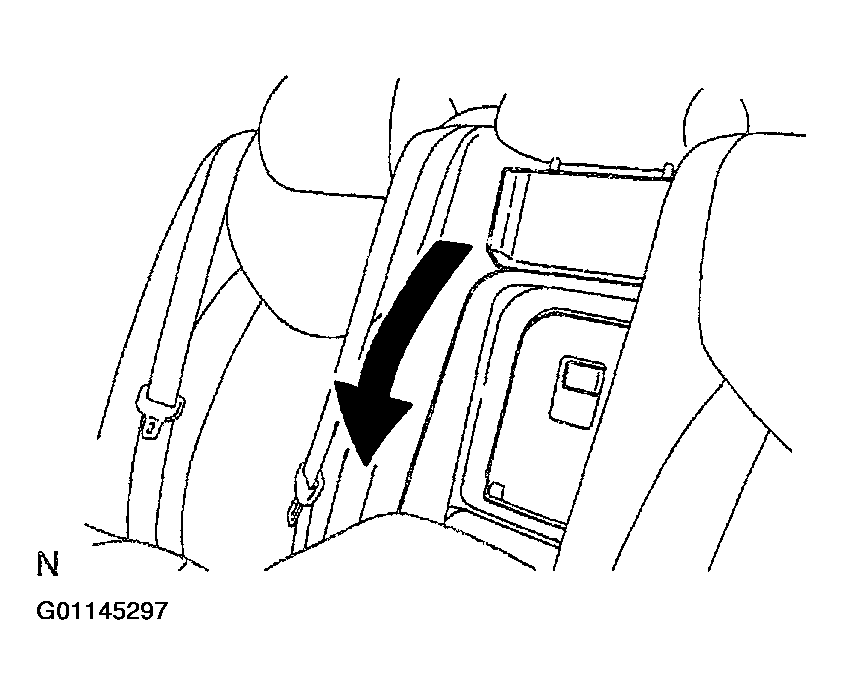

  Fig 1: Sliding Cooling Box Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and rear seat center arm rest cover.

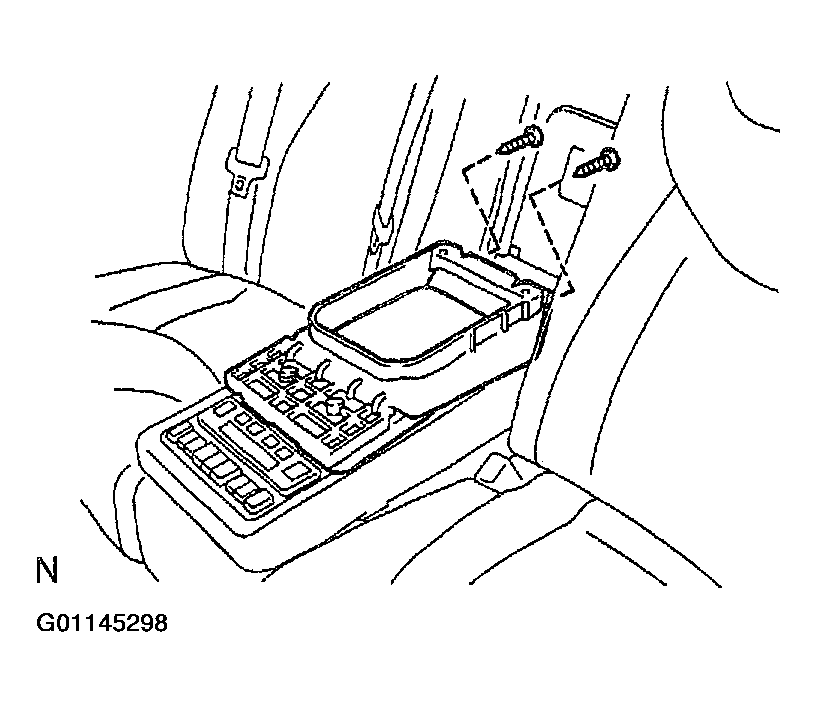

  Fig 2: Locating Screws & Rear Seat Center Arm Rest For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove rear A/C control assembly.
1. Remove the screw and rear seat center arm rest plate.

  Fig 3: Locating Screws For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 6 screws and rear A/C control assembly.
