Section 437 (Tire And Wheel): Inspection

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRE
1. Check the tires for wear and for the proper inflation pressure.
  1. Cold tire inflation pressure
  Fig 1: Cold Tire Inflation Pressure Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the tire runout.
  1. Tire runout: 3.0 mm (0.118 in.) or less

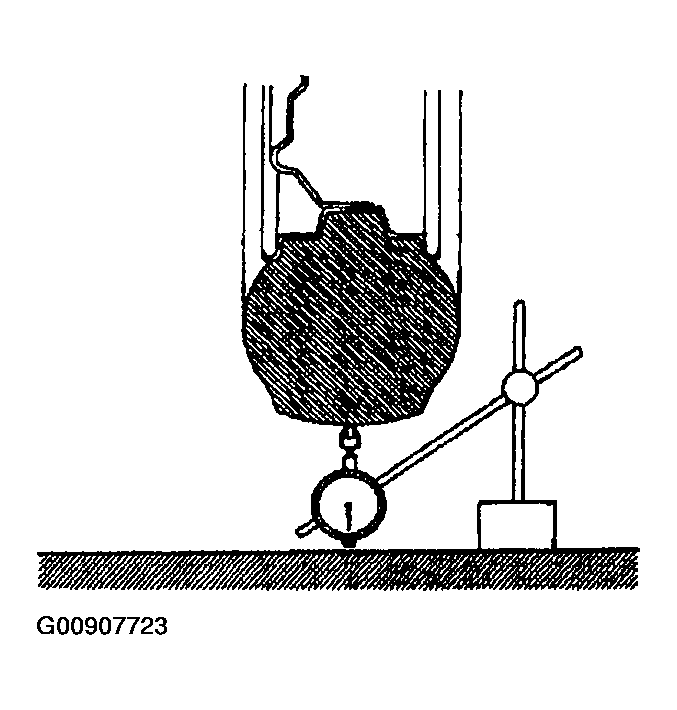

  Fig 2: Checking Tire Runout
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ROTATE TIRE
HINT:
- Rotate tires as shown in Fig 3 .
- Rotate as shown in (B) if the spare tire is included in the rotation.
Fig 3: Tire Rotation Procedure
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT WHEEL BALANCE
1. Check and adjust the Off-the car balance.
2. If necessary, check and adjust the On-the car balance.
  1. Imbalance after adjustment: 14.0 g (0.031 lb) or less

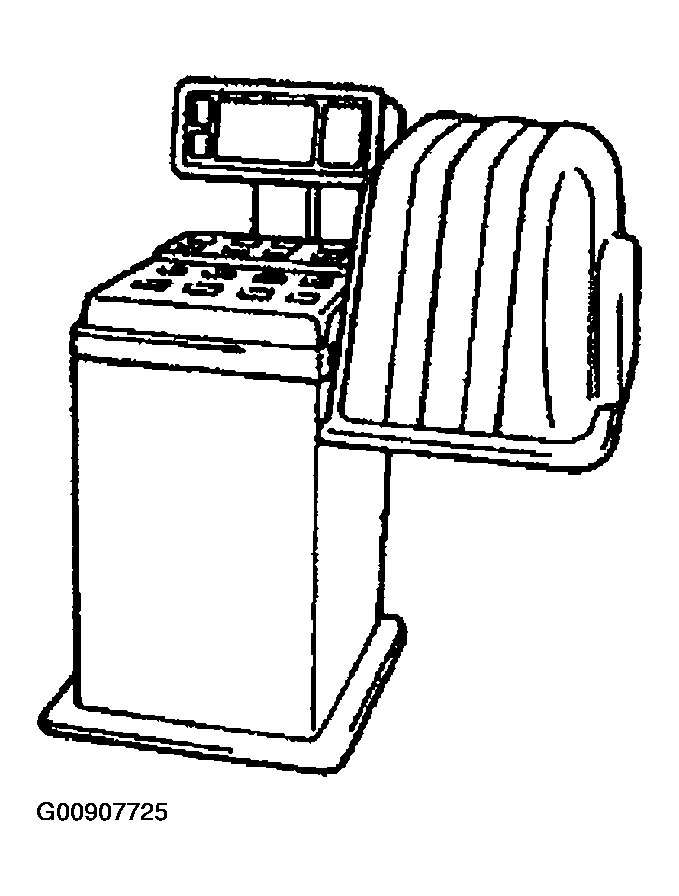

Fig 4: Identifying Wheel Balancer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK FRONT SUSPENSION FOR LOOSENESS
CHECK STEERING LINKAGE FOR LOOSENESS
CHECK BALL JOINT FOR LOOSENESS
CHECK SHOCK ABSORBER WORKS PROPERLY
- Check for oil leak
- Check the mounting bushings for wear
- Bounce front and rear of the vehicle
