Section 620 (Rear Seat (Fixed Type)): Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

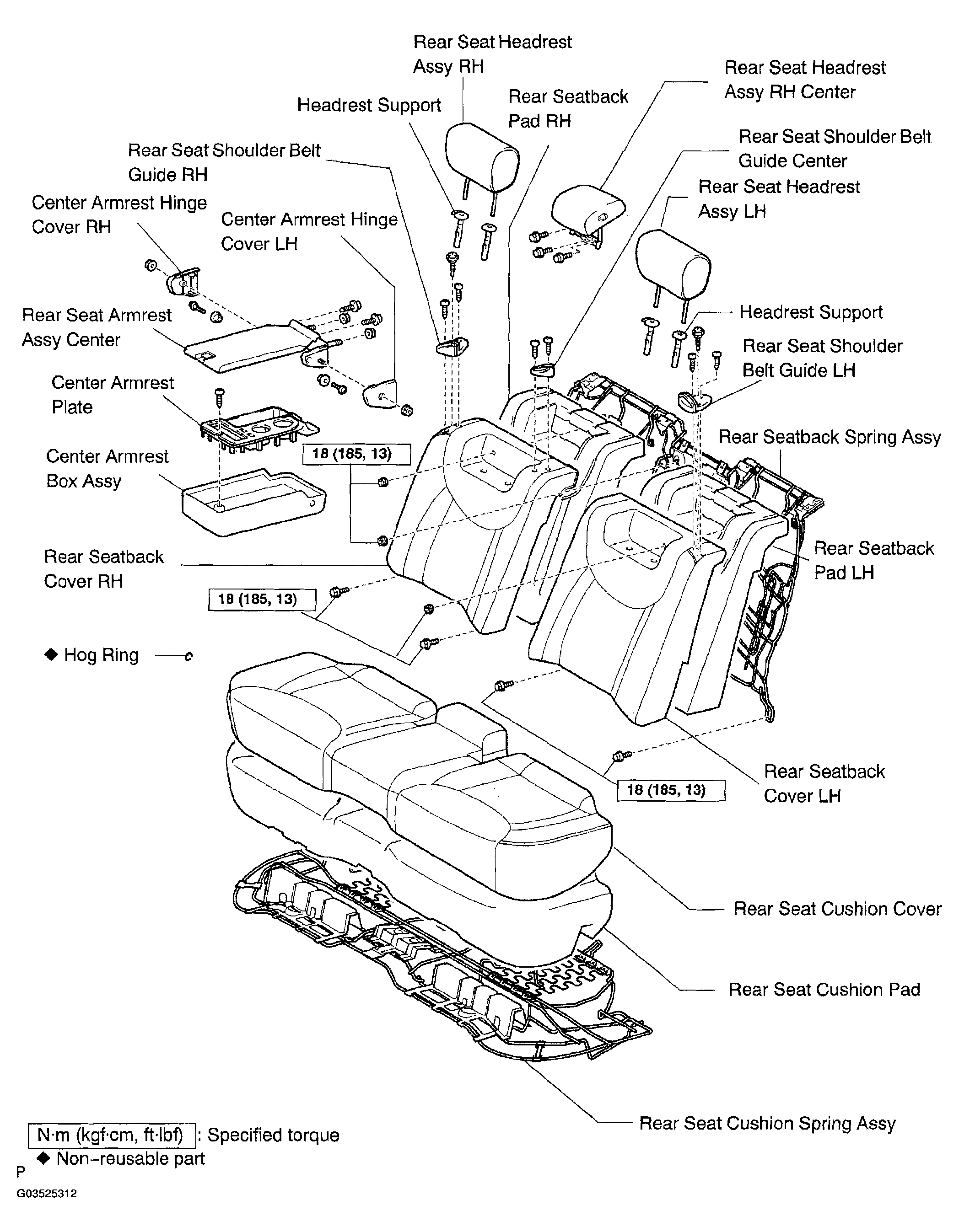

Fig 1: Exploded View Of Rear Seat Assembly Components And Torque Specifications (Fixed Type)
