Control Valve Assembly: Components

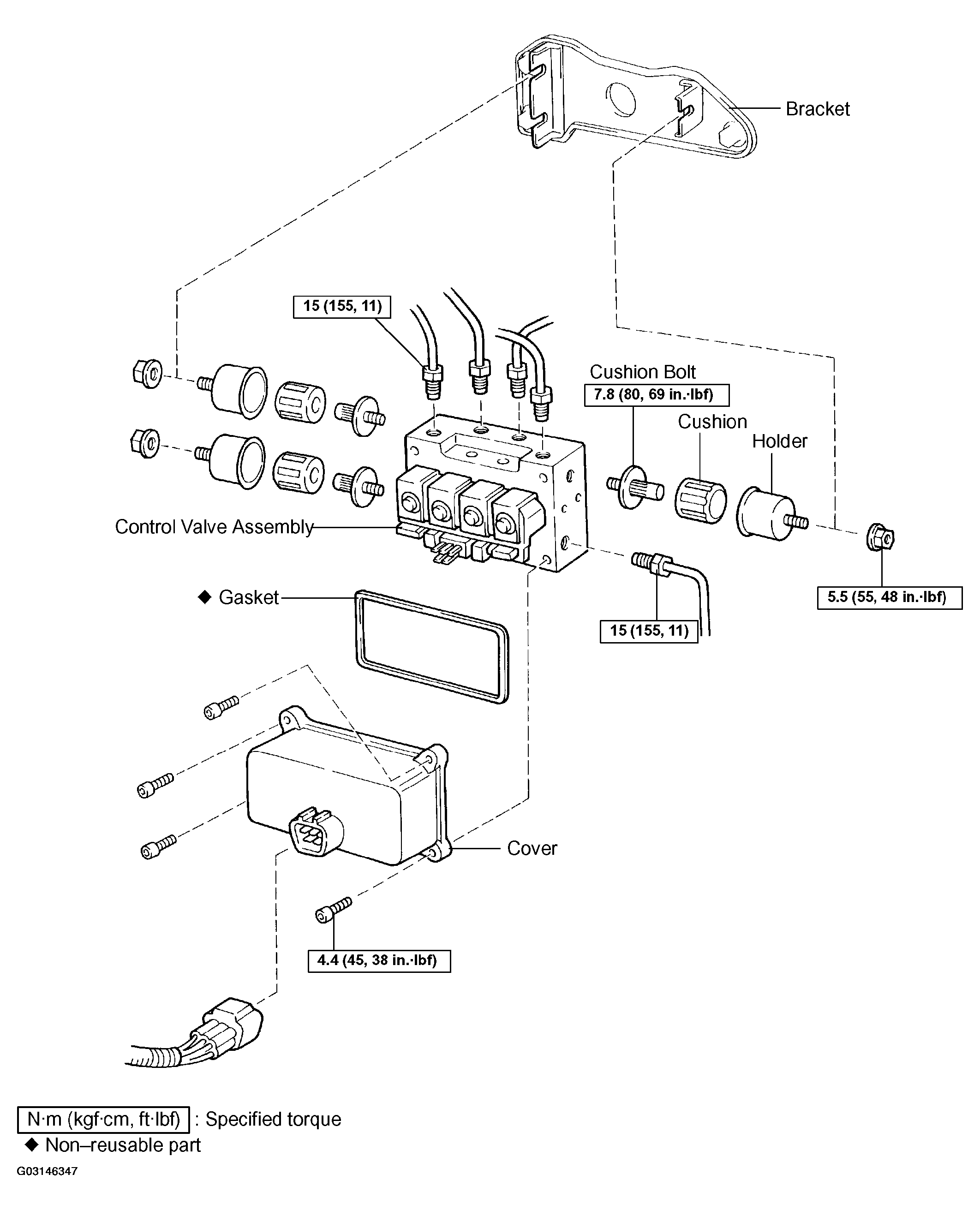

Fig 1: Exploded View Of Control Valve Assembly
G03146347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
