Pre-Check
›
Passive Mode Changing Method
Passive Mode Changing Method
For passive mode changing method flowchart, see
Fig 1
.

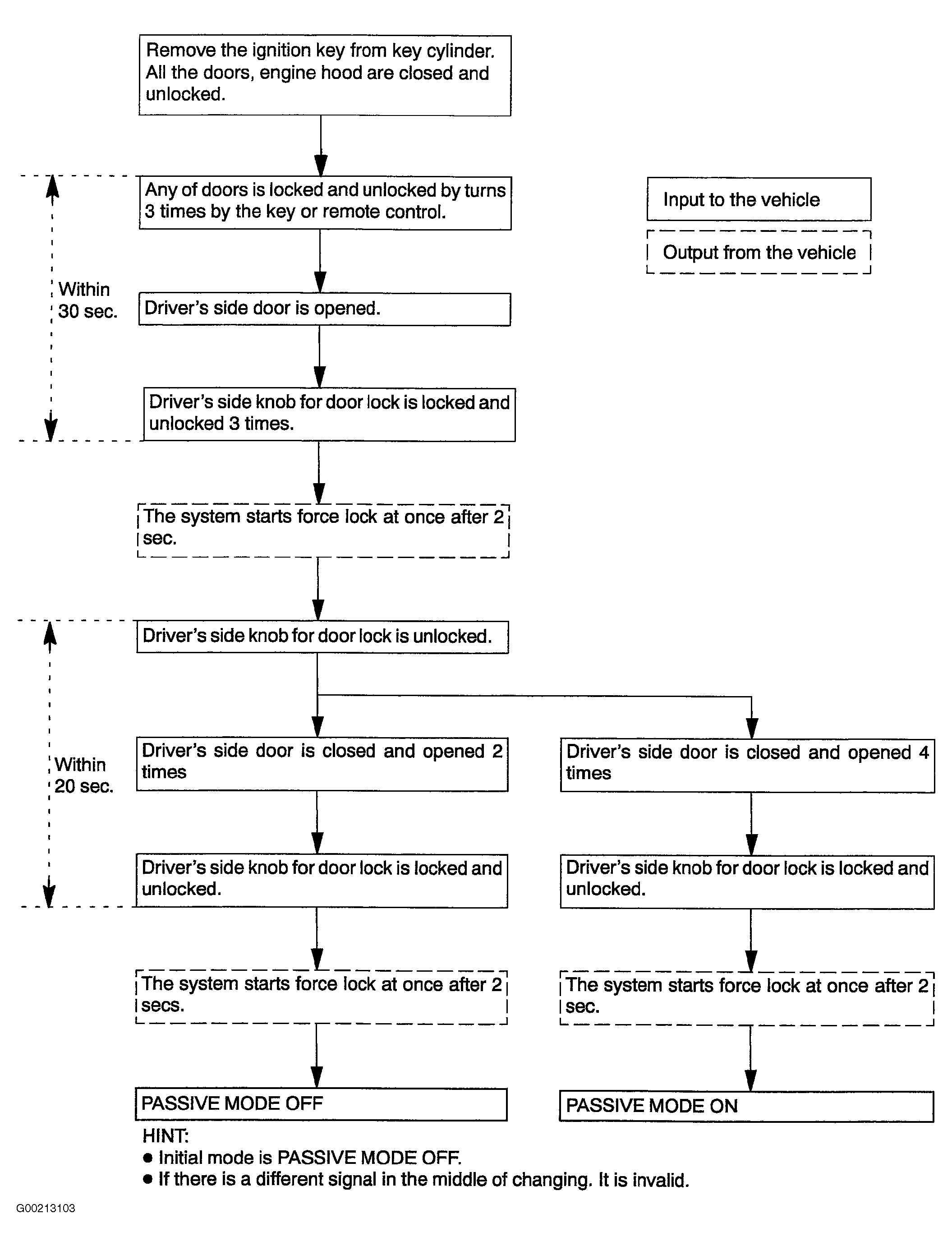

Fig 1: Identifying Passive Mode Changing Method Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
