Circuit Description
WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

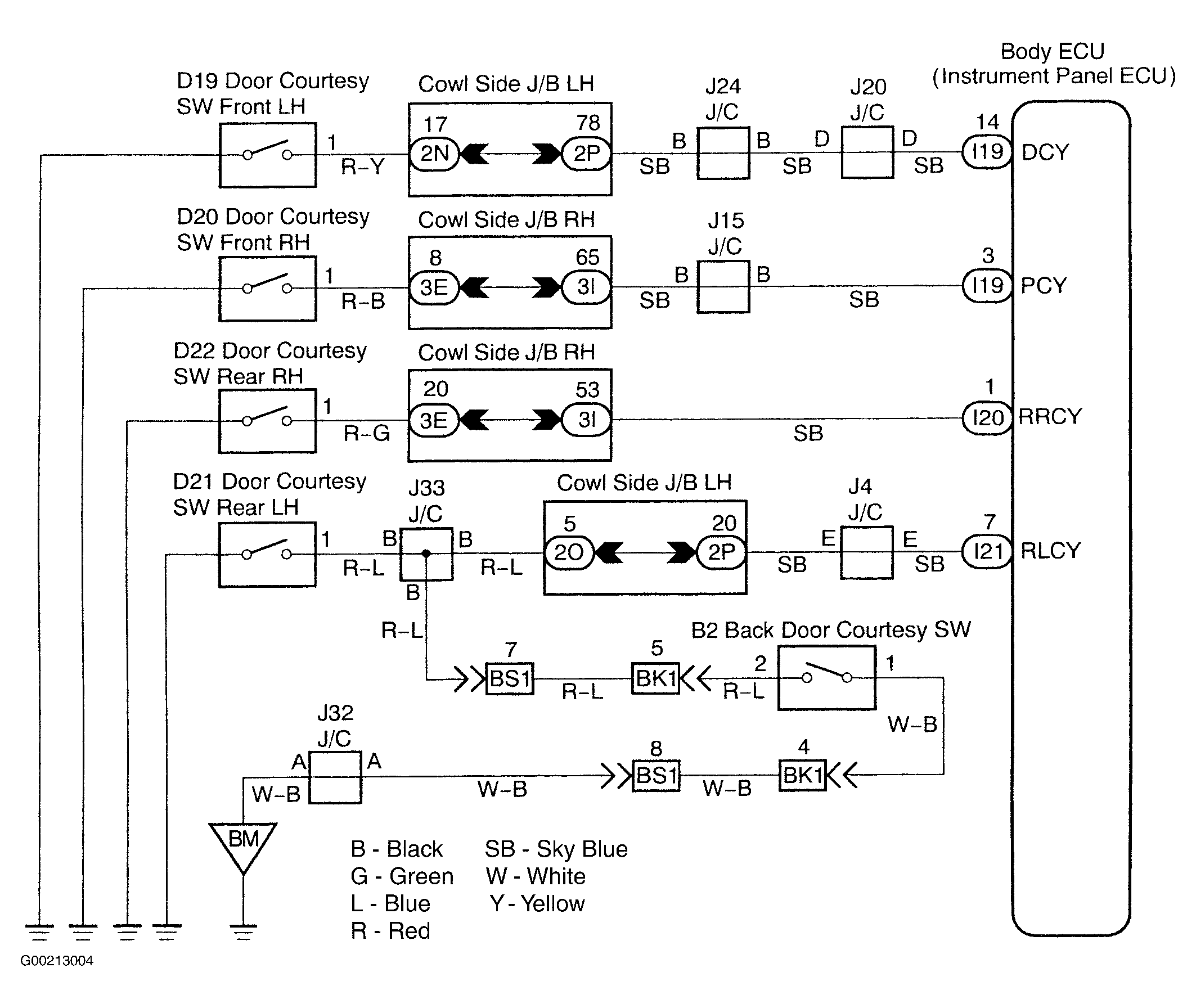

The door courtesy switch goes on when the door panel is opened and goes off when the door is closed. See Fig 1.
