Height Control Accumulator: Components

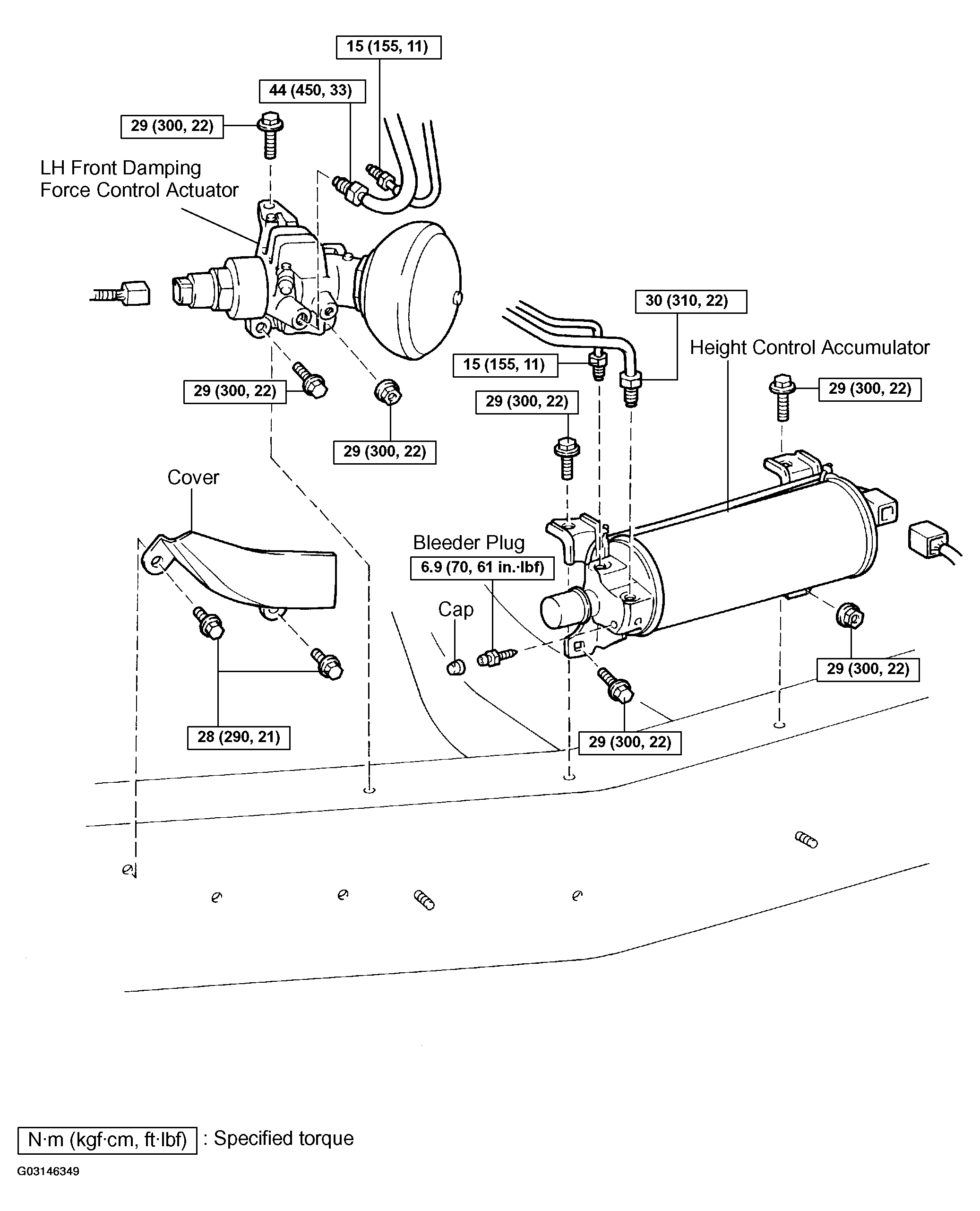

Fig 1: Exploded View Of Height Control Accumulator
G03146349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
