Cooling System (Mechanical): Radiator: Components

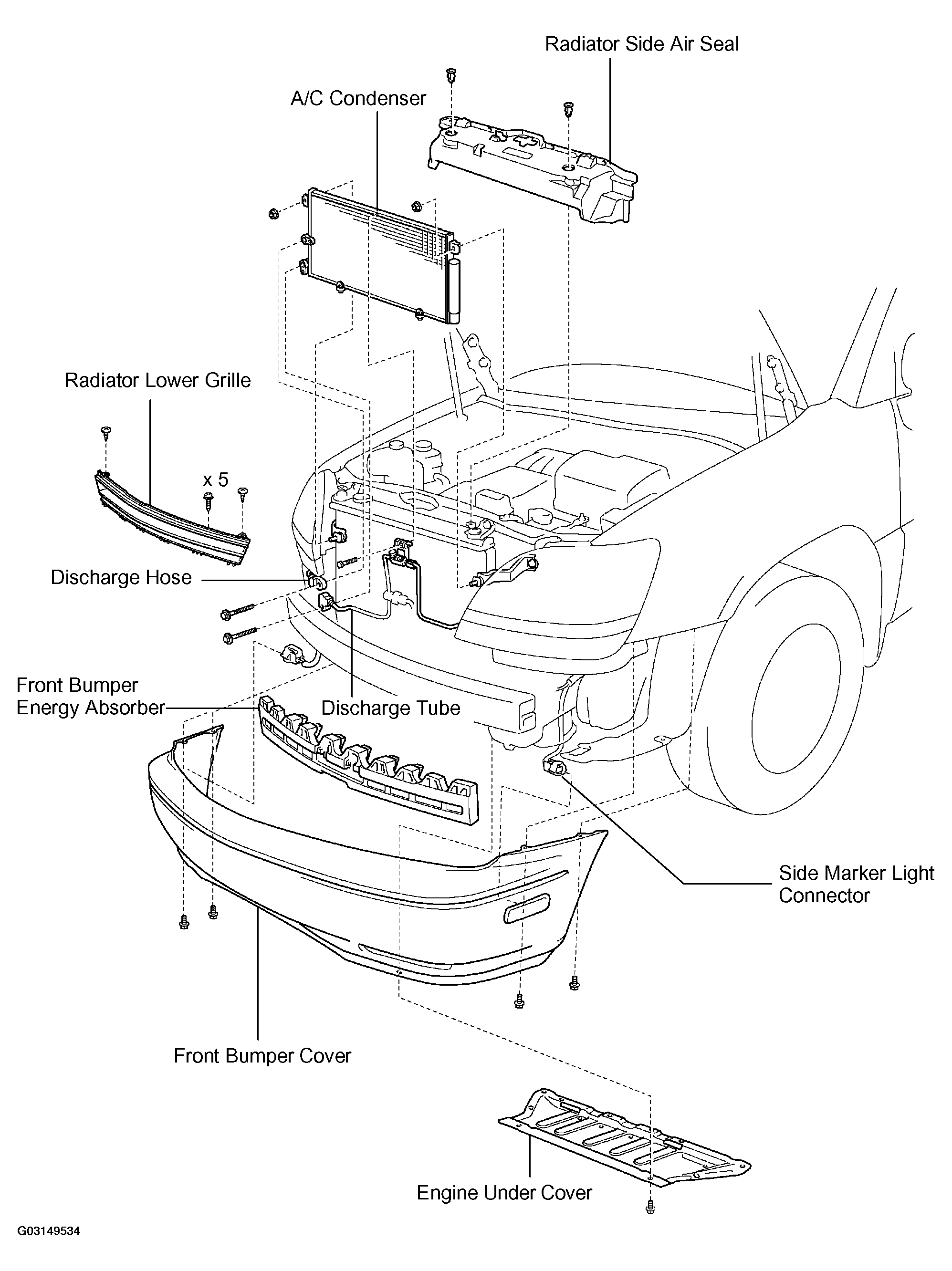

Fig 1: Identifying Components For Radiator Removal (1 Of 2)
G03149534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

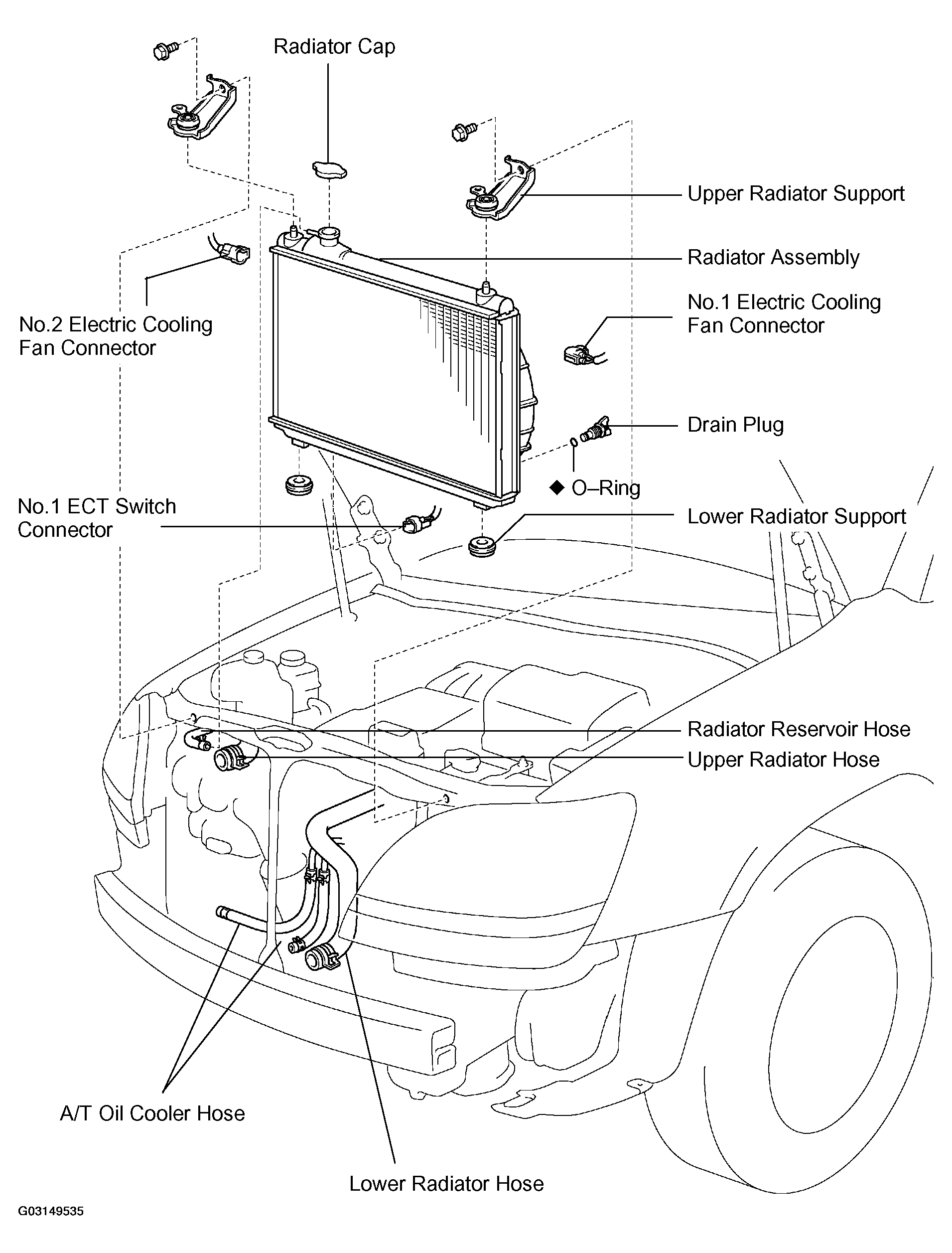

Fig 2: Identifying Components For Radiator Removal (2 Of 2)
G03149535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

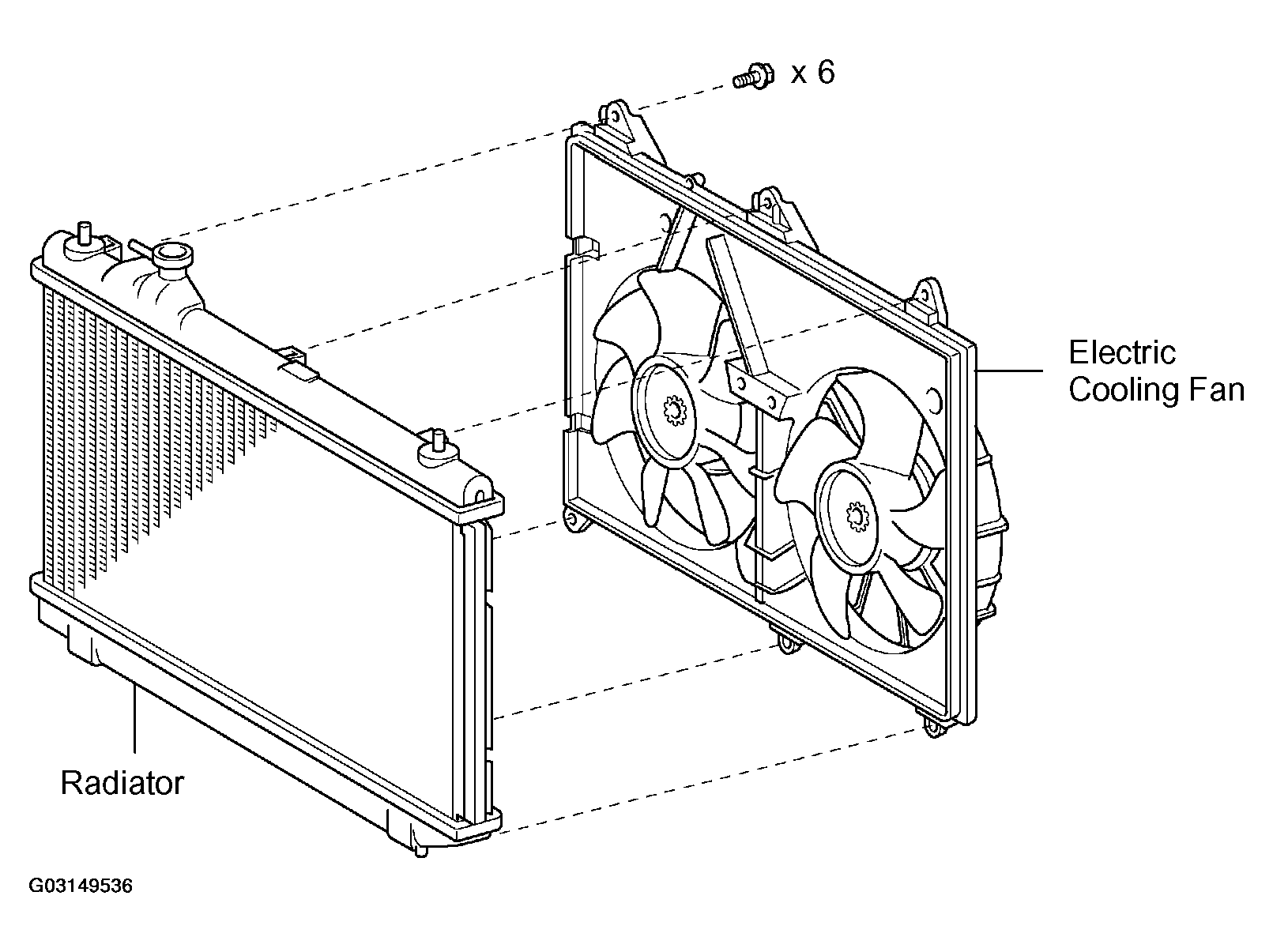

Fig 3: Removing Electric Cooling Fan From Radiator
G03149536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

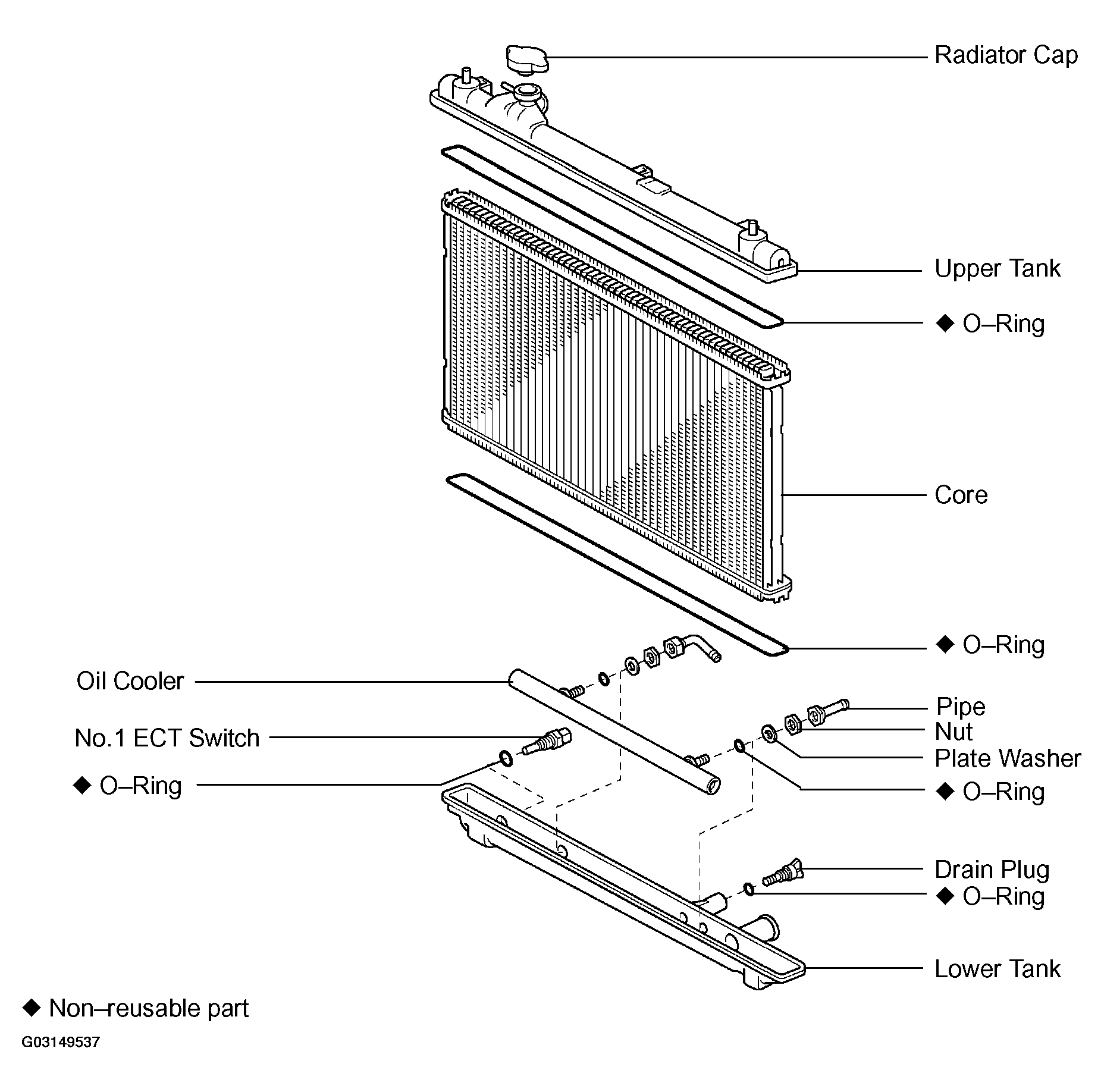

Fig 4: Exploded View Of Radiator
G03149537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
