Component Locations

COMPONENT LOCATIONS

Component

Location

Driver Side Junction Block (Body ECU)

⁽¹⁾

Door Courtesy Switch

⁽¹⁾

Front Door W/ Motor Lock Assembly

⁽¹⁾

Luggage Compartment Door Lock

⁽¹⁾

Power Window Master Switch

⁽¹⁾

Wireless (Door) Control Receiver

⁽¹⁾

⁽¹⁾	See Fig 1.

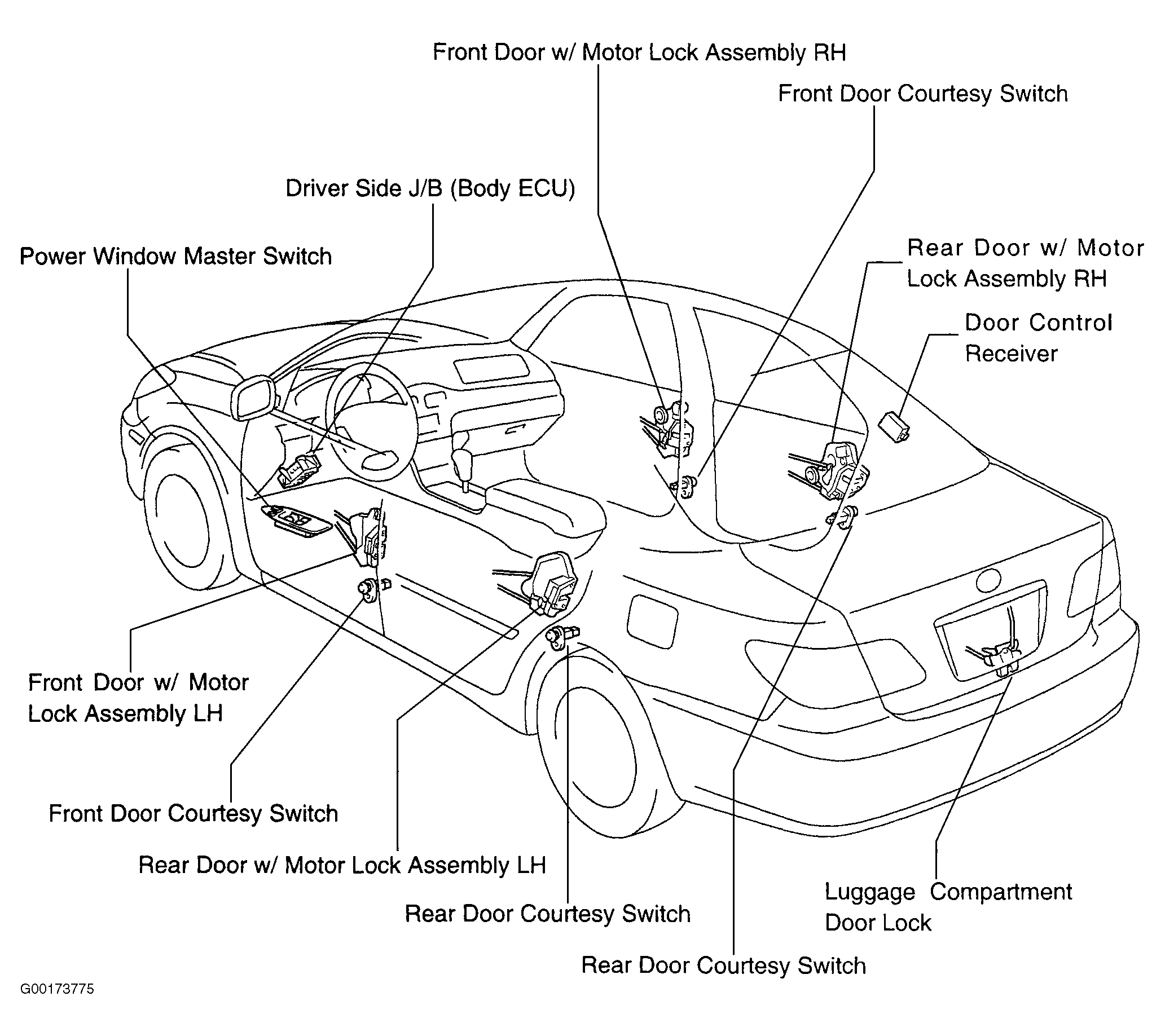

Fig 1: Identifying Remote Keyless Entry Component Locations
