Transmitter Sub-Assembly Module Set Door Control
Transmitter Sub-Assembly Module Set Door Control
For inspection, see
Fig 1
.

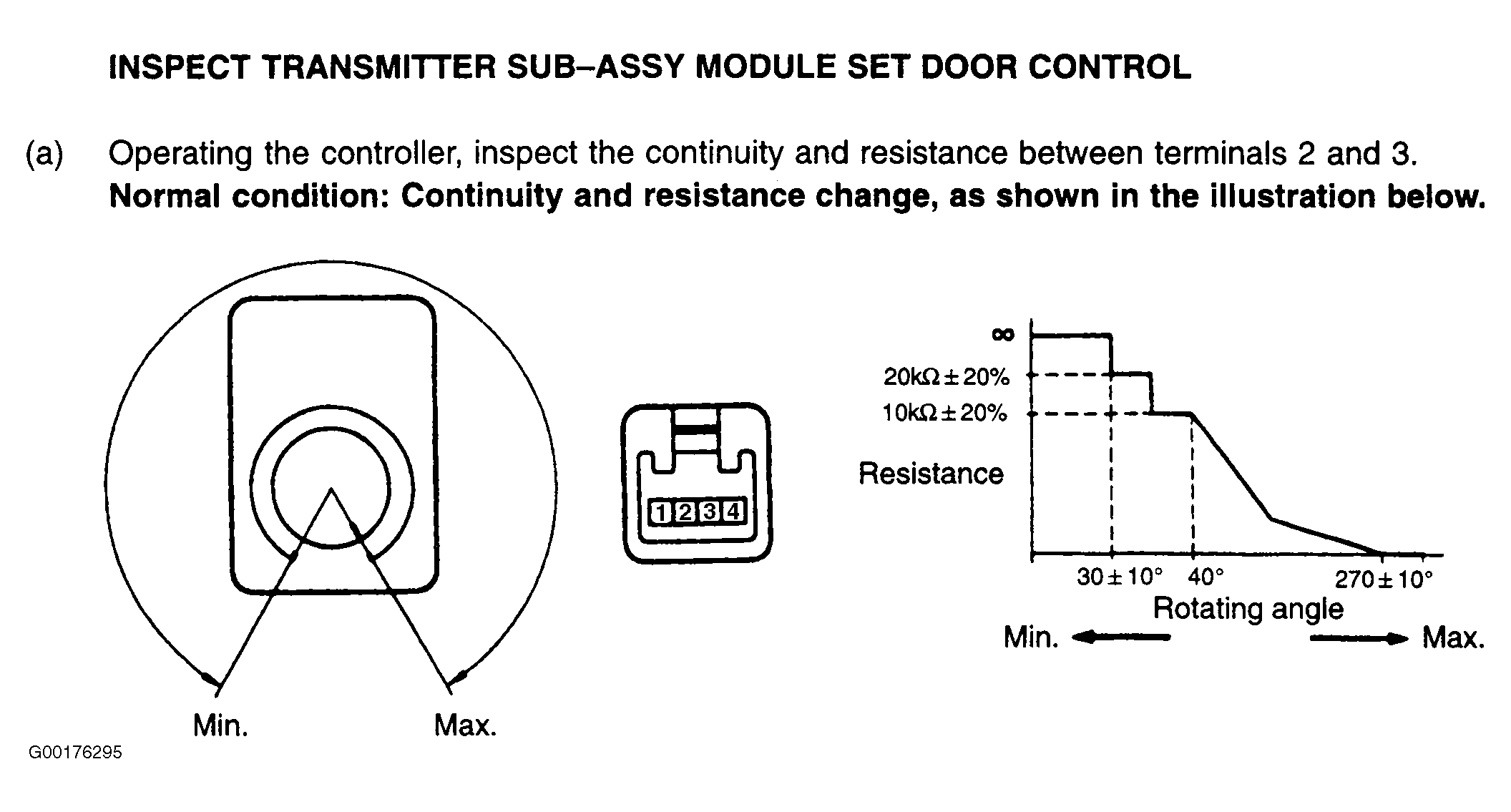

Fig 1: Inspecting Transmitter Sub-Assembly Module Set Door Control
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
