Removal & Installation : Components

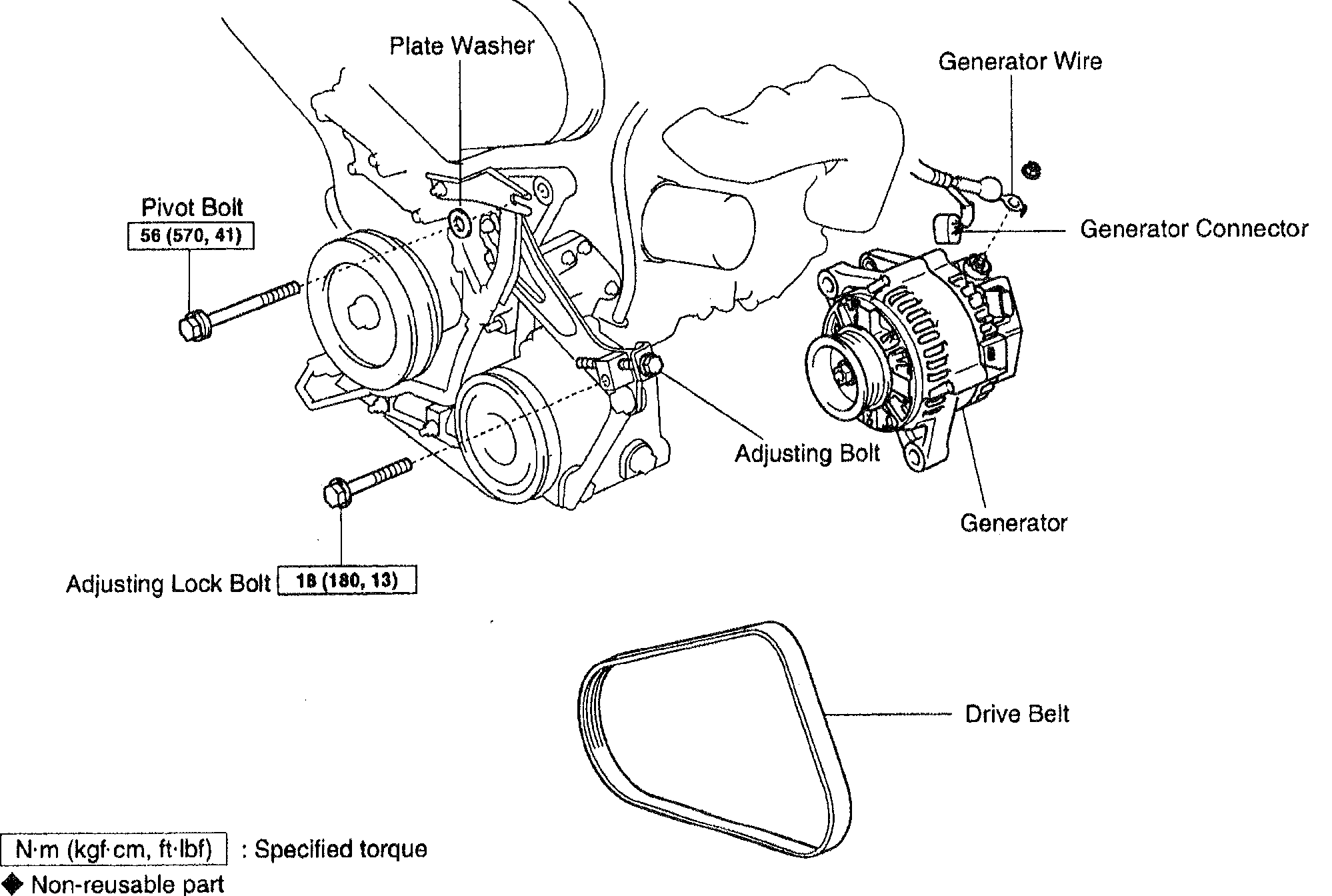

Fig 1: View Of Generator Removal & Installation With Torque Specifications

G00498791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
