Cooling System (Mechanical): Cooling: Coolant: Replacement

Drain coolant.
1. Remove the radiator cap from the water outlet.
  CAUTION: To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator are still hot, as fluid and steam can be blown out under pressure.
2. Loosen the radiator drain plug and drain the coolant.

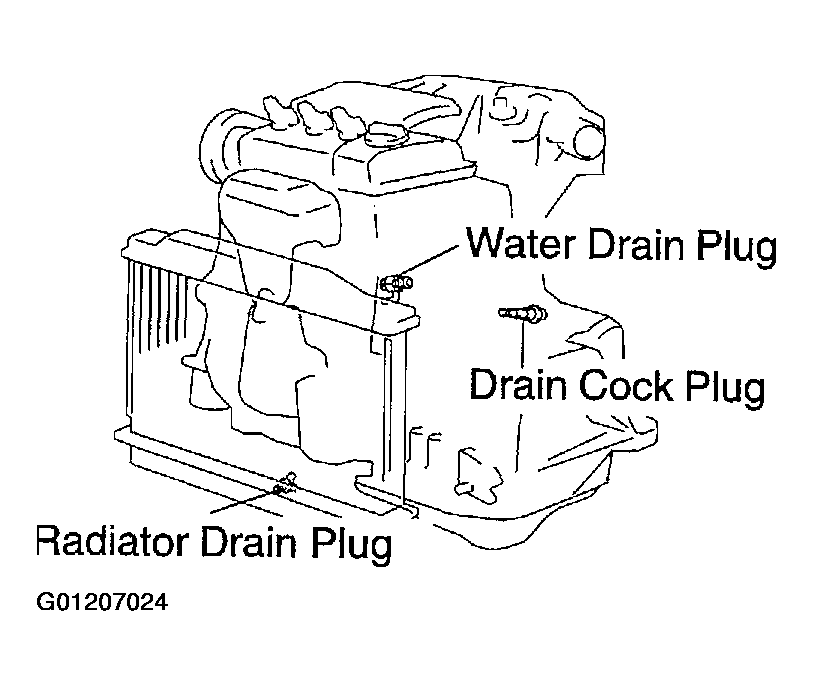

Fig 1: Displaying Coolant For Draining
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Add coolant.
1. Slowly fill the system with coolant.
  NOTE:
  - Use of improper coolants may damage engine cooling system.
  - Use "Toyota Long Life Coolant" or equivalent and mix it with plain water according to the manufacturer's directions.
  - Using of coolant with includes more than 50% (freezing protection down to -35°C (-31°F) or 60% (freezing protection down to -50°C (-58°F)) of ethylene-glycol is recommended but not more than 70%.
  NOTE:
  - Do not use an alcohol type coolant or plain water alone.
  - The coolant should be mixed with plain water (preferably demineralized water).
    Capacity: 9.2 liters (9.7 US qts, 8.1 lmp. qts)
Check engine coolant leak.
1. Fill the radiator with coolant and attach a radiator cap tester.
2. Pump it to 118 kPa (1.2 kgf/cm² ), and check leakage.
