Exhaust Pipe: Components

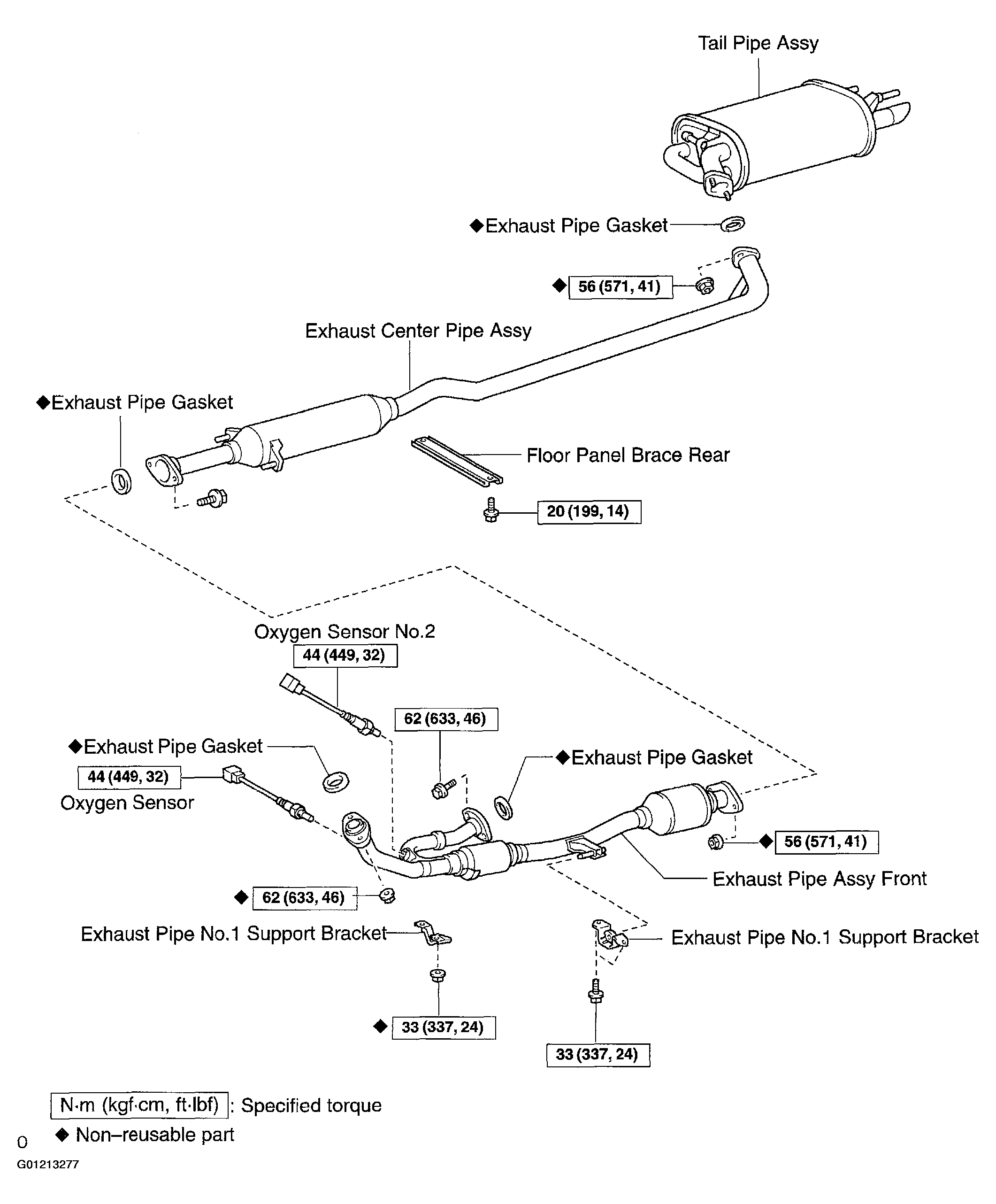

Fig 1: Displaying Exhaust Pipe Components
G01213277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
