Throttle Body Assembly: Components: Notes

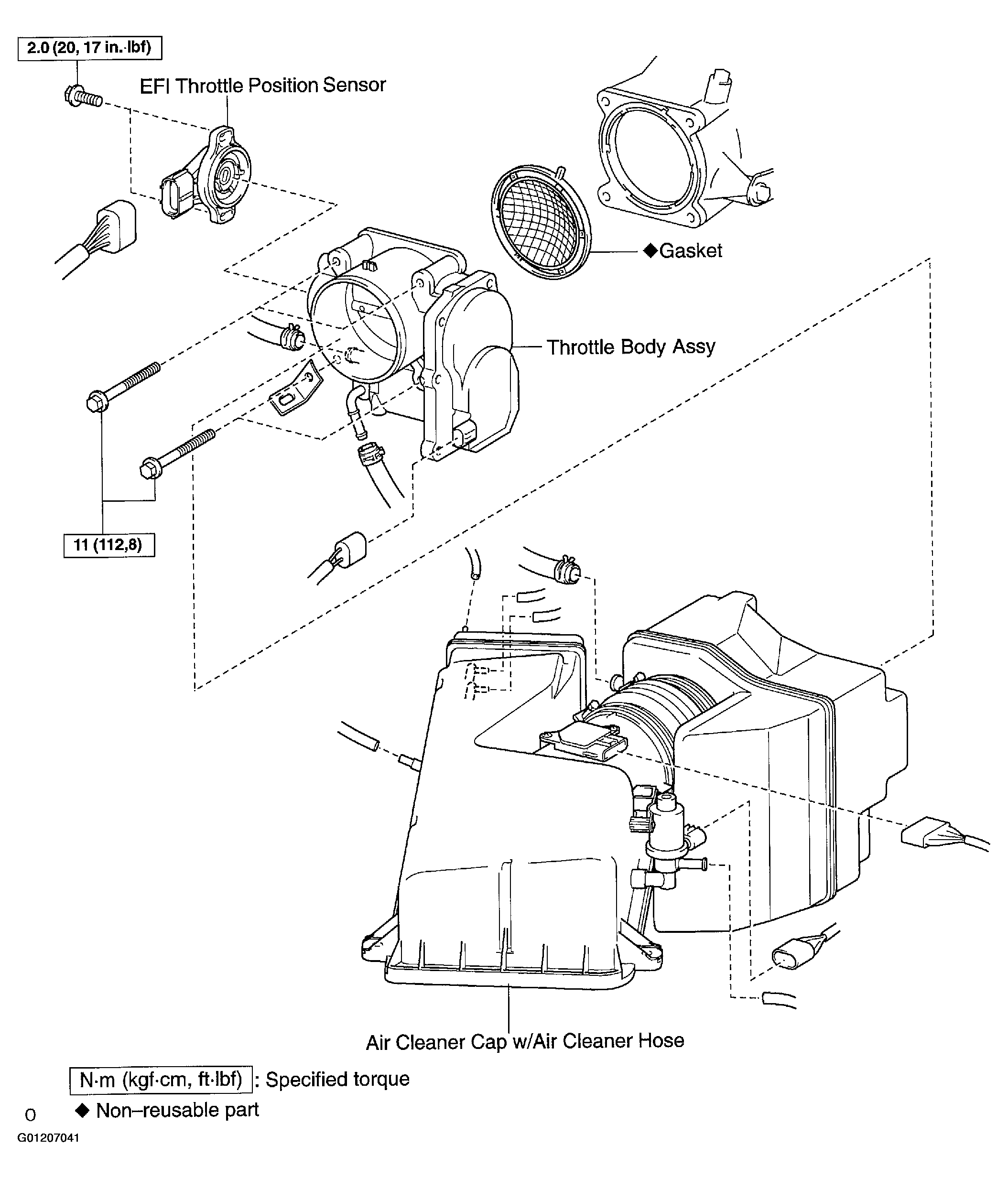

Fig 1: Displaying Throttle Body Assembly Components
G01207041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
