Fuel Injector ASSY: Components

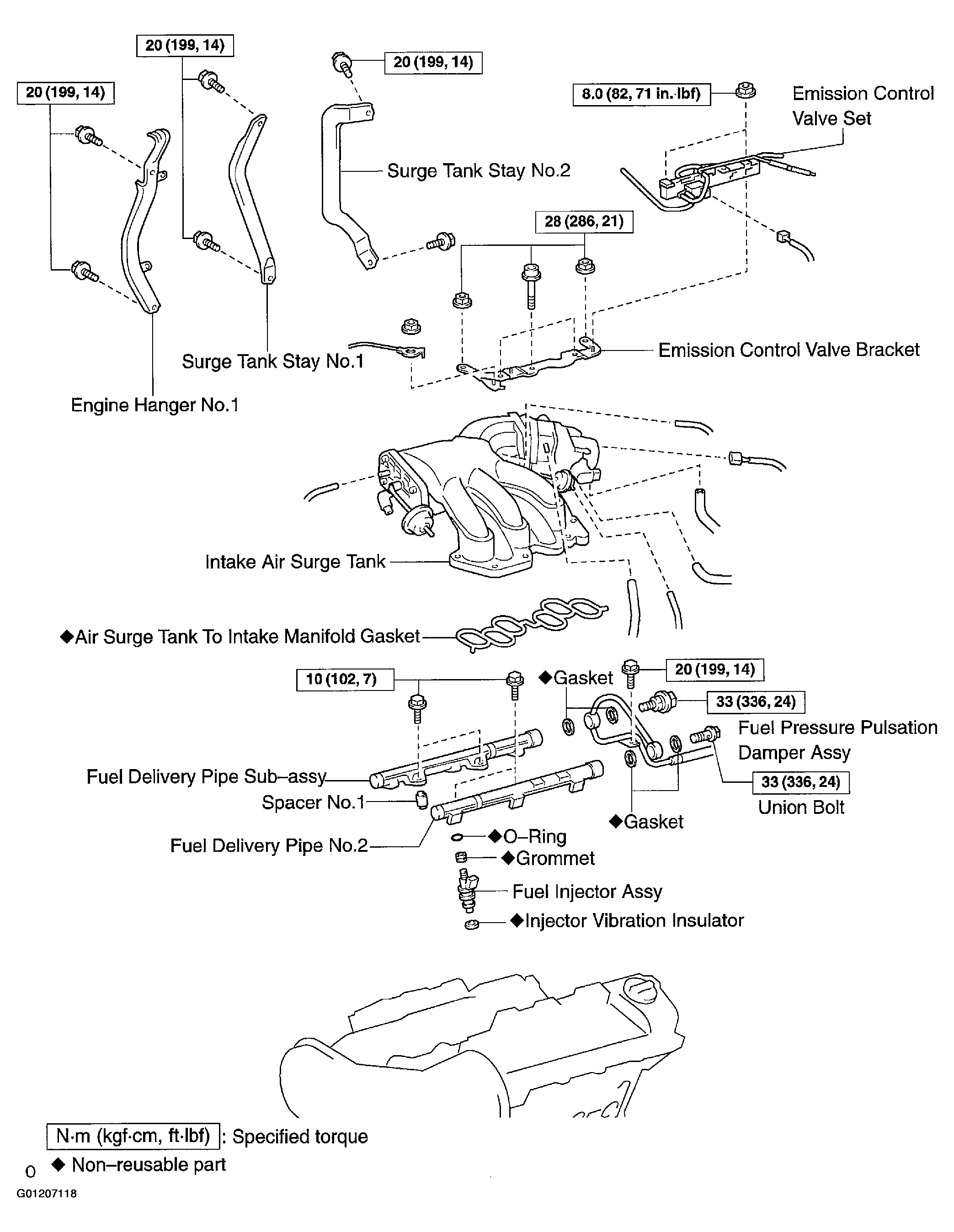

Fig 1: Fuel Injector Assy Components
G01207118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
