Vane Pump Assembly: Components

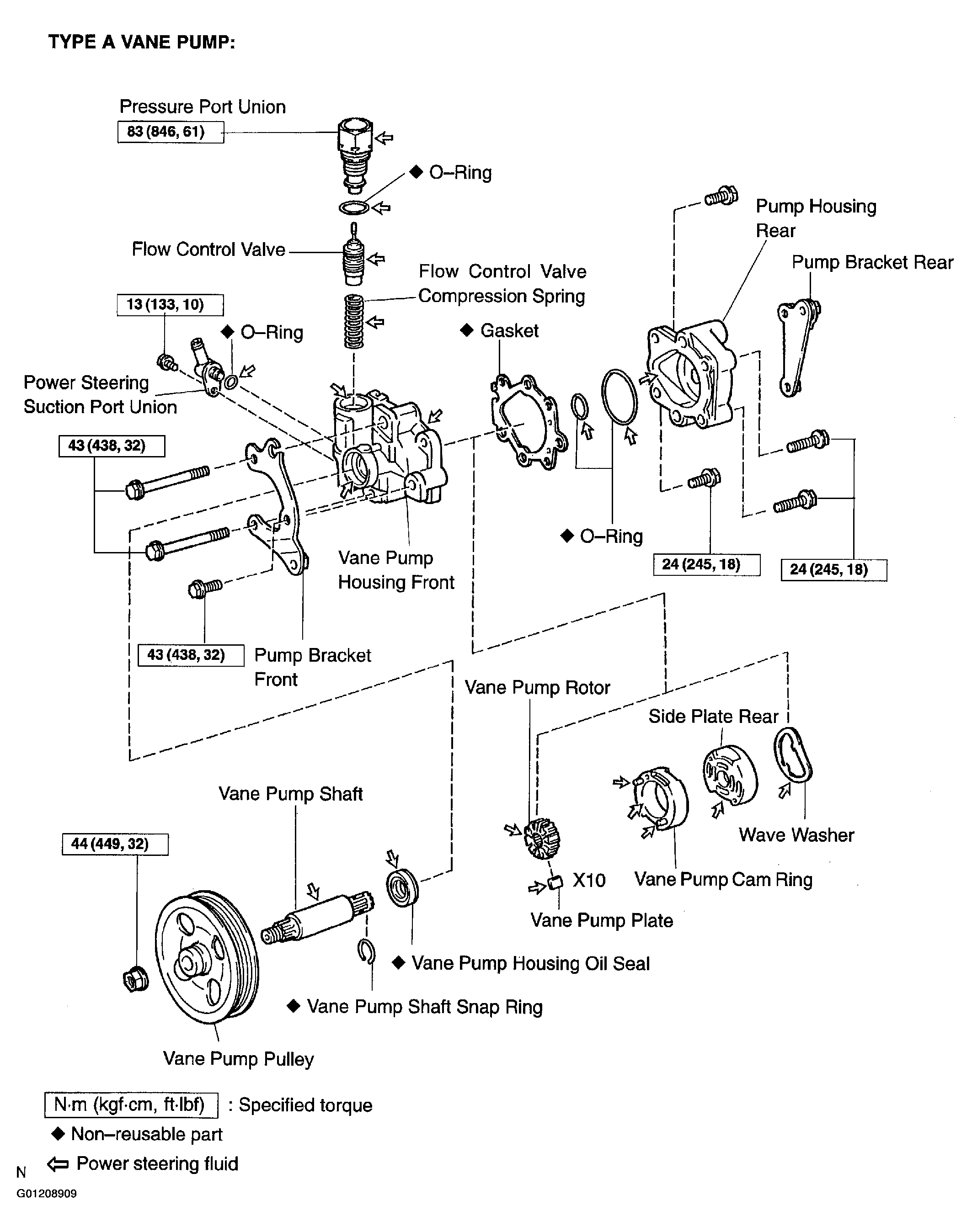

Fig 1: Displaying Type "A" Vane Pump Assembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

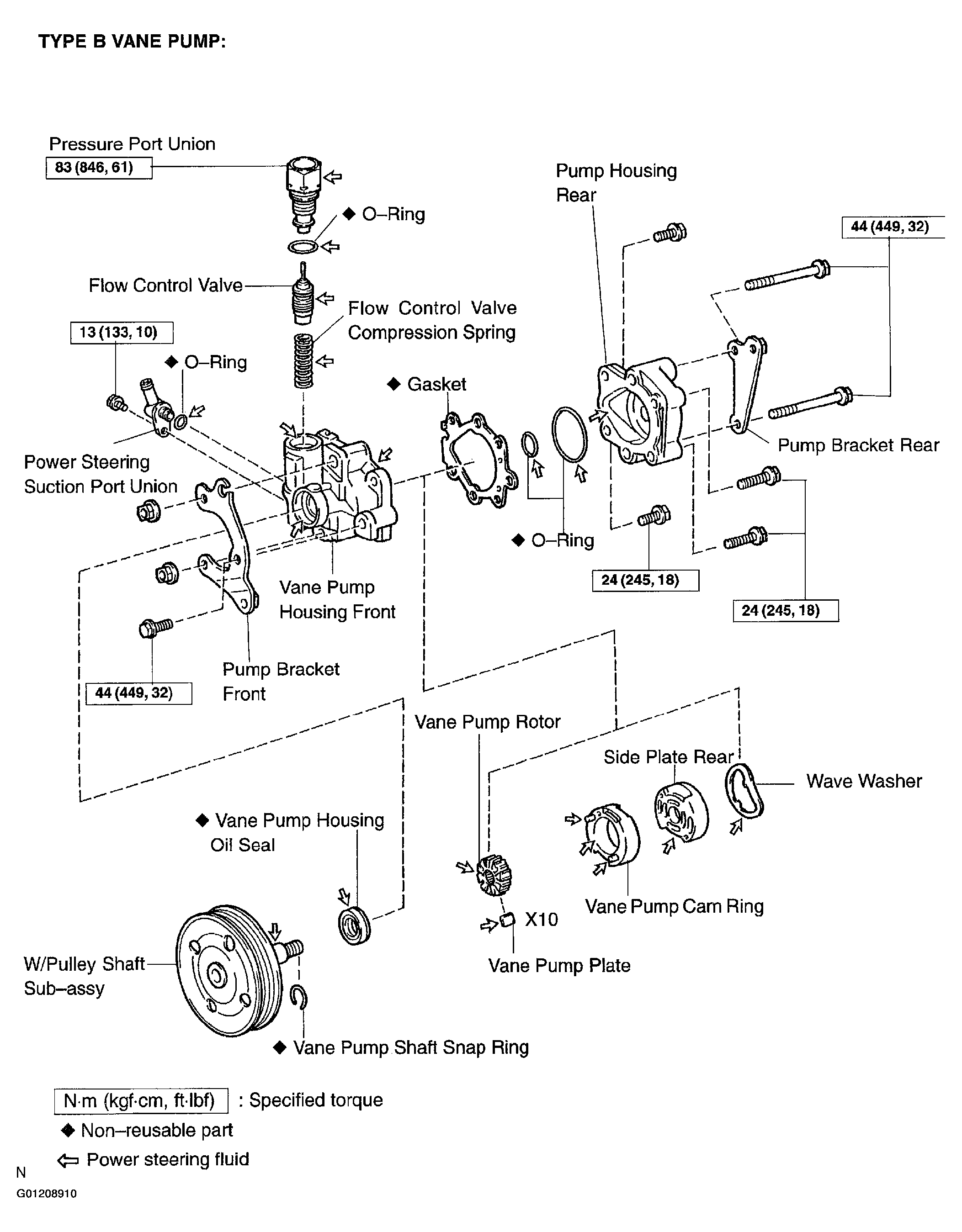

Fig 2: Displaying Type "B" Vane Pump Assembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
