Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

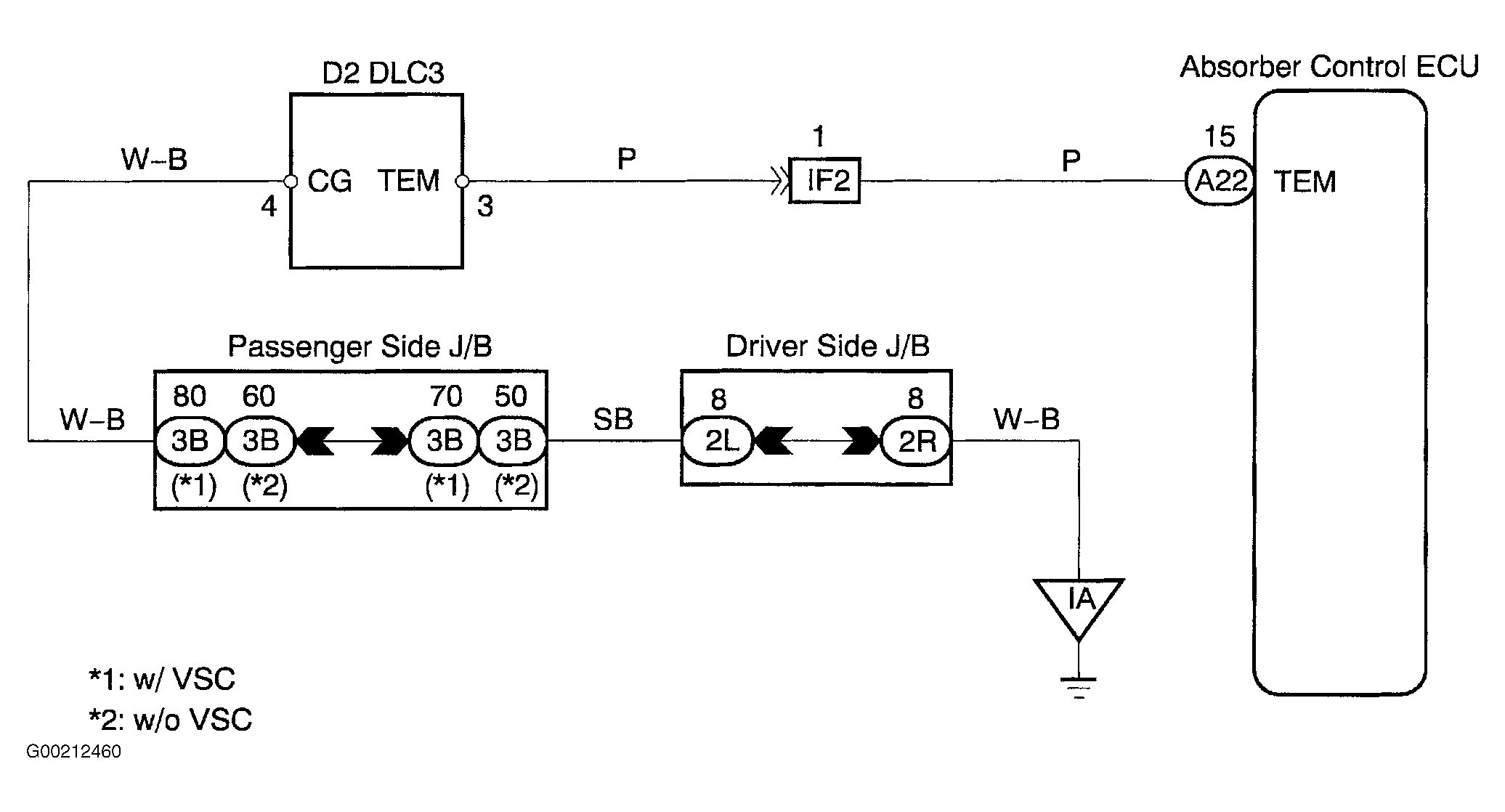

Fig 1: Wiring Diagram TEM Terminal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

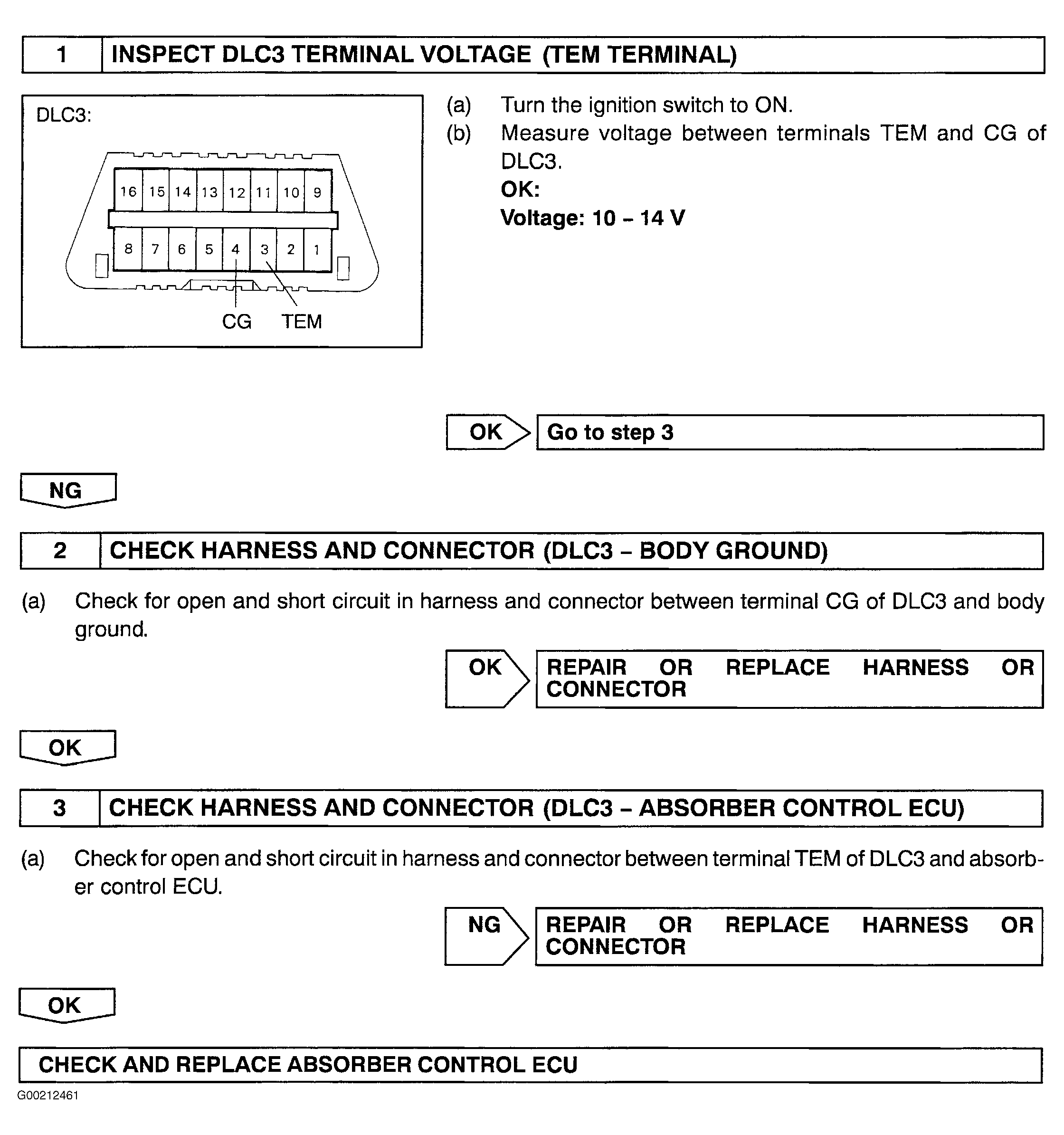

Fig 2: Testing Procedure TEM Terminal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
