Alignment Specifications & Procedures: Specifications

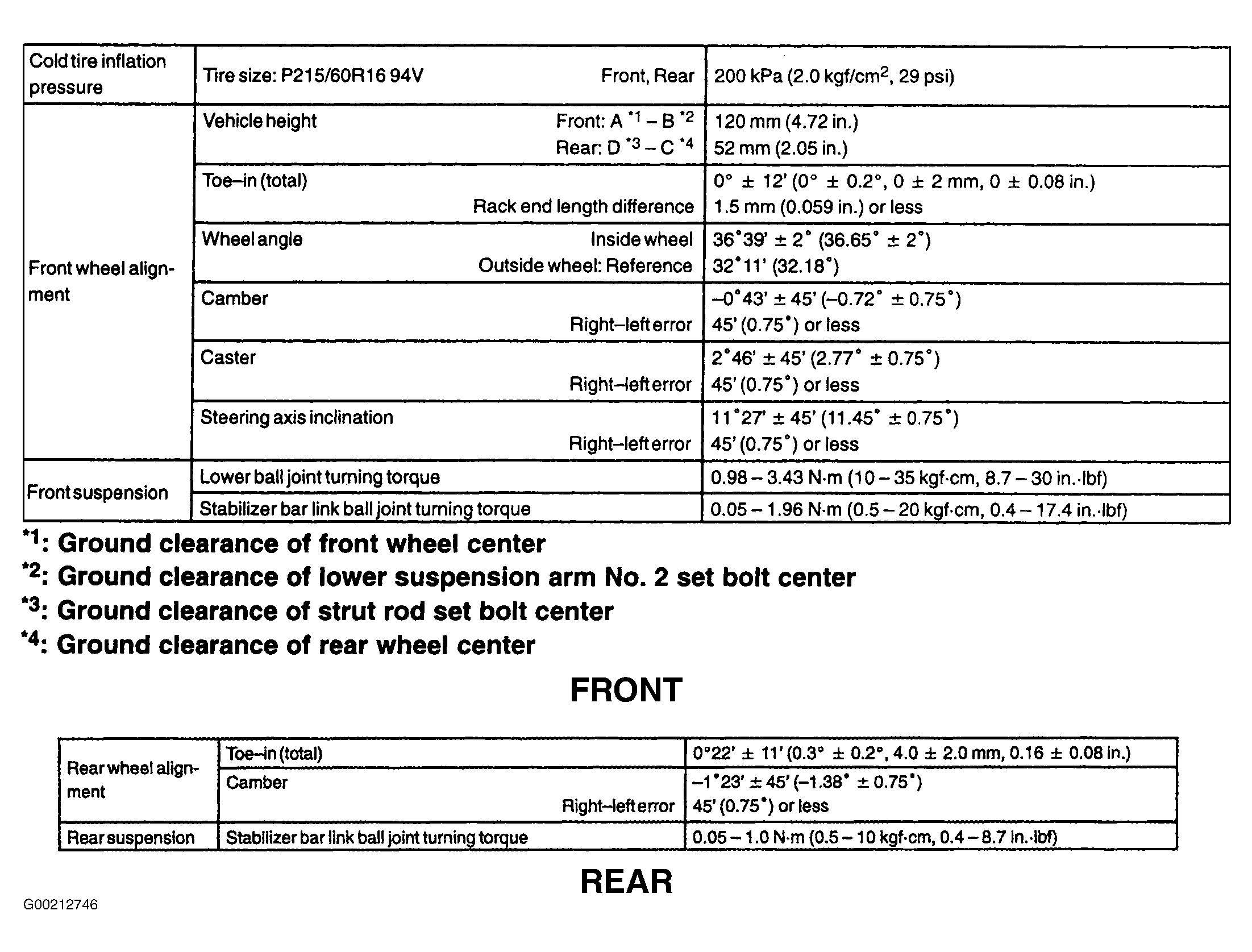

Fig 1: Wheel Alignment Specifications (ES 300)
G00212746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
