Home › Lexus › 2002 › GS 300 › Repair and Diagnosis › Engine Mechanical › Exhaust System › Components

Exhaust System: Components

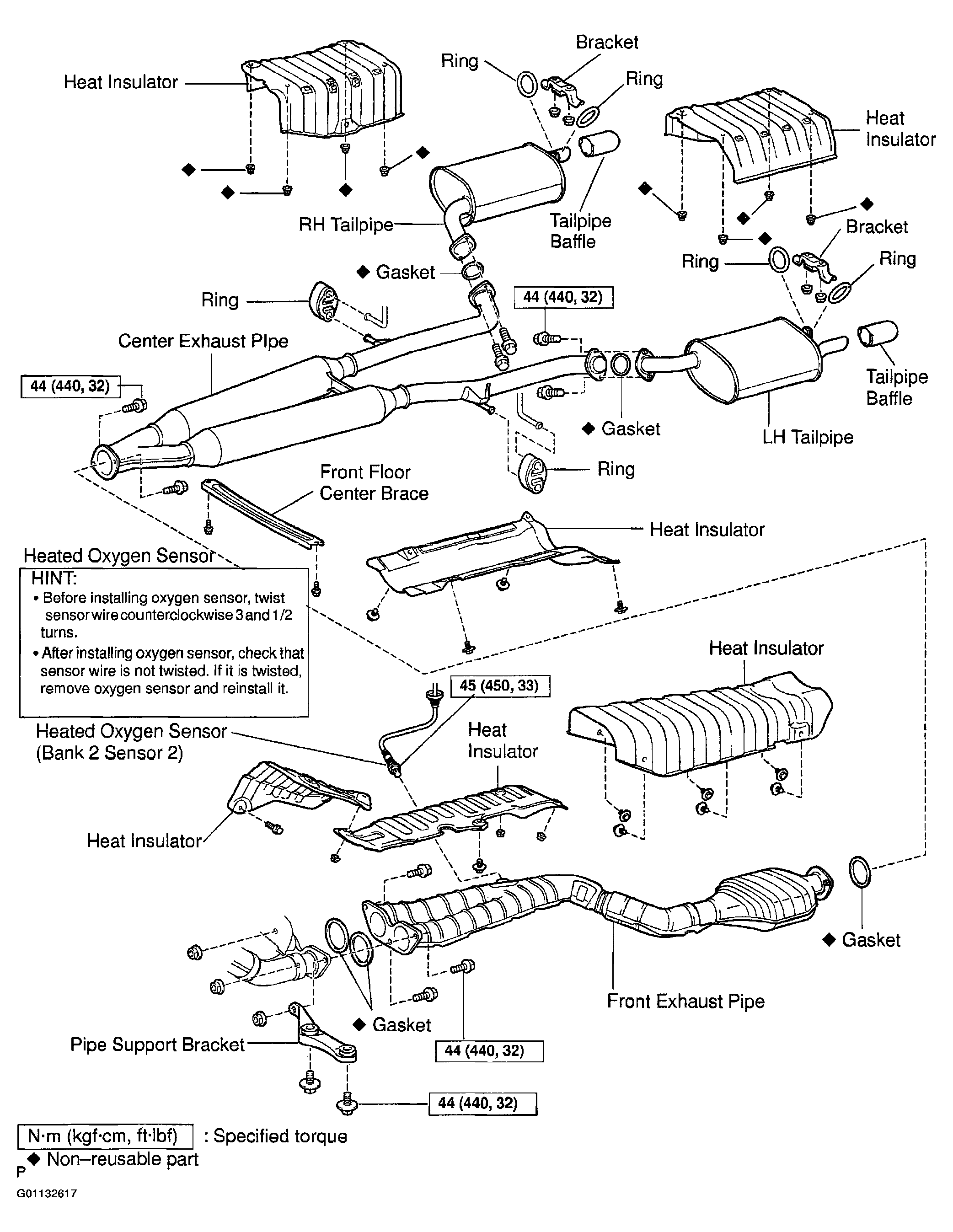

Fig 1: Identifying Exhaust System Components
G01132617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
