Front Airbag Sensor: Installation

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT AIRBAG SENSOR

    Install the sensor with bolt and nut, then connect the connector.

    Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

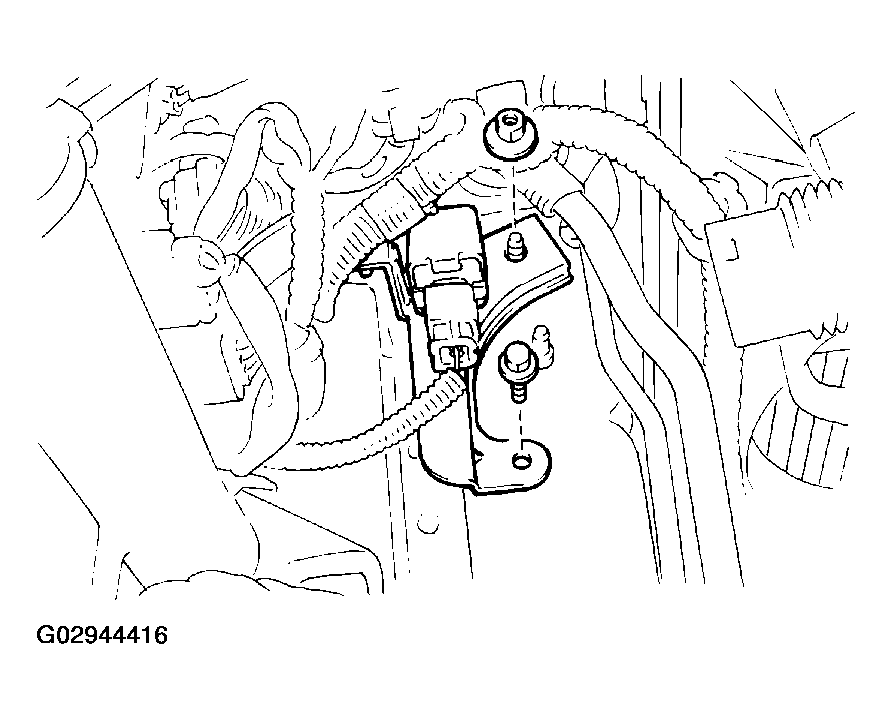

    Fig 1: Installing LH Sensor With Bolt And Nut
    G02944416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

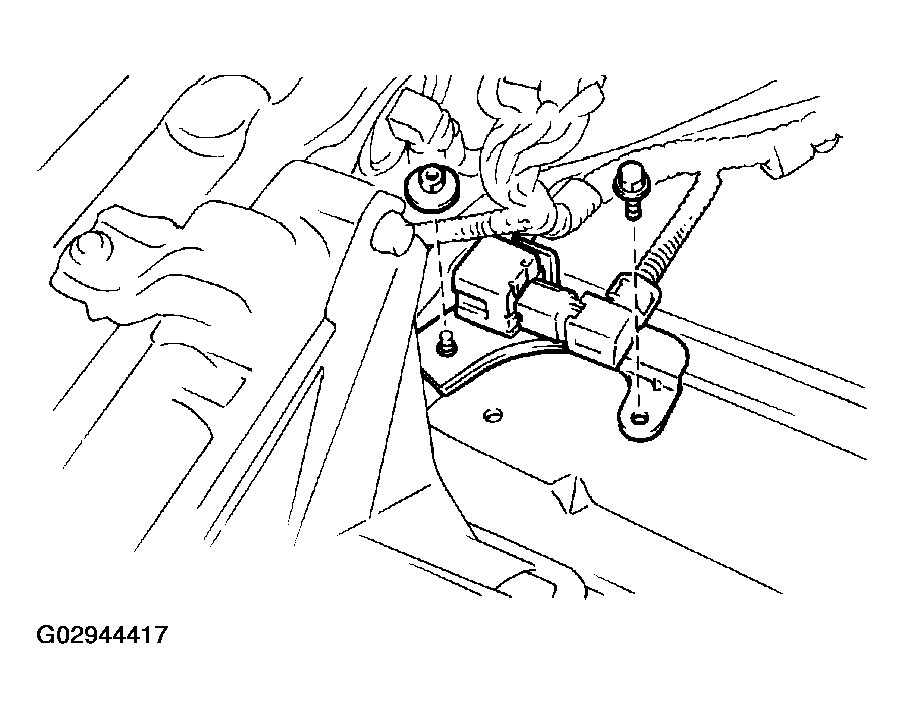

    Fig 2: Installing RH Sensor With Bolt And Nut
    G02944417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Make sure the sensor is installed to the specified torque.
    • If the sensor has been dropped, or there are cracks, dents or other defects in the case, brackets or connector, replace the removed sensor. Always replace the set bolt and nut with new ones.
    • The sensor set bolt and nut have been anti-rust treated. When the sensor is removed, always replace the set bolt and nut with new ones.
    • After installation, shake the sensor to check that there is no looseness.
    • The front sensor is equipped with an electrical connection check mechanism. Be sure to lock this mechanism securely when connecting the connector. If the connector is not securely locked, a malfunction code will be detected by the diagnostic system.
  2. INSTALL REMOVED PARTS
