Circuit Description

For the passenger door power window switch circuit diagram, see Fig 1.

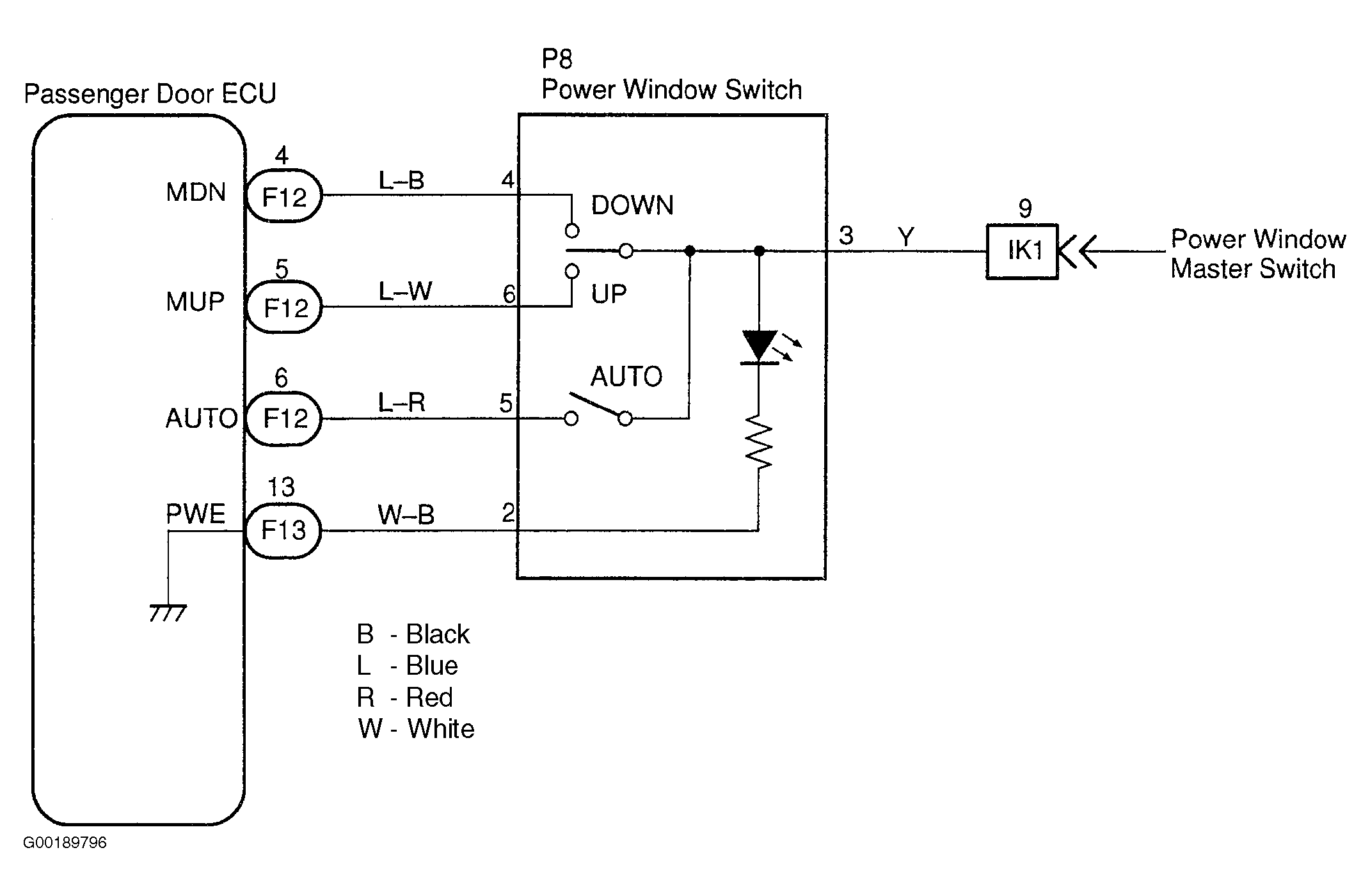

Fig 1: Identifying Passenger Door Power Window Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
