Exhaust System: Components

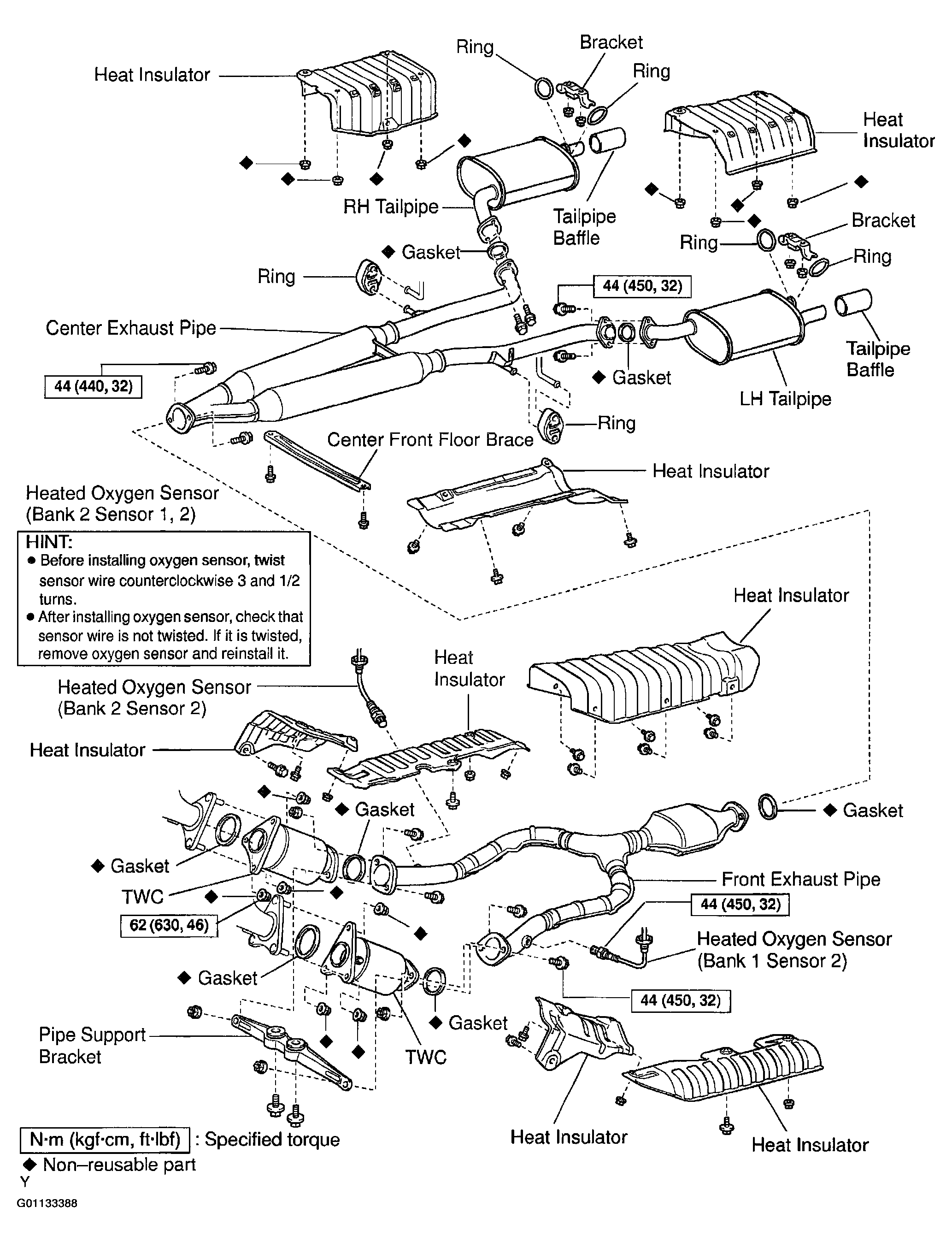

Fig 1: Identifying Exhaust System Components
G01133388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
