Section 126 (Radiator): Components

WARNING: This page is about a different car, the 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

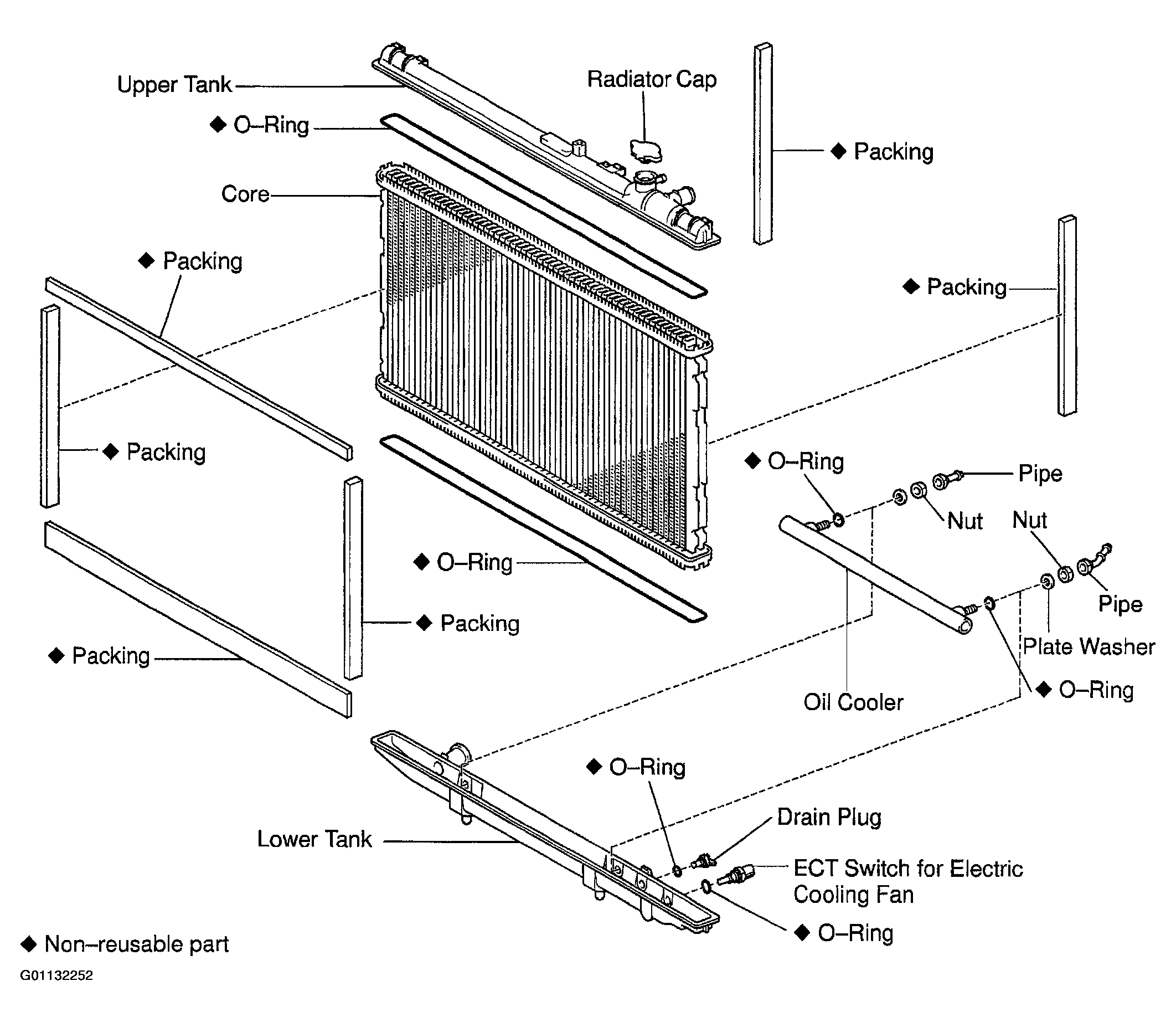

Fig 1: Identifying Radiator Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

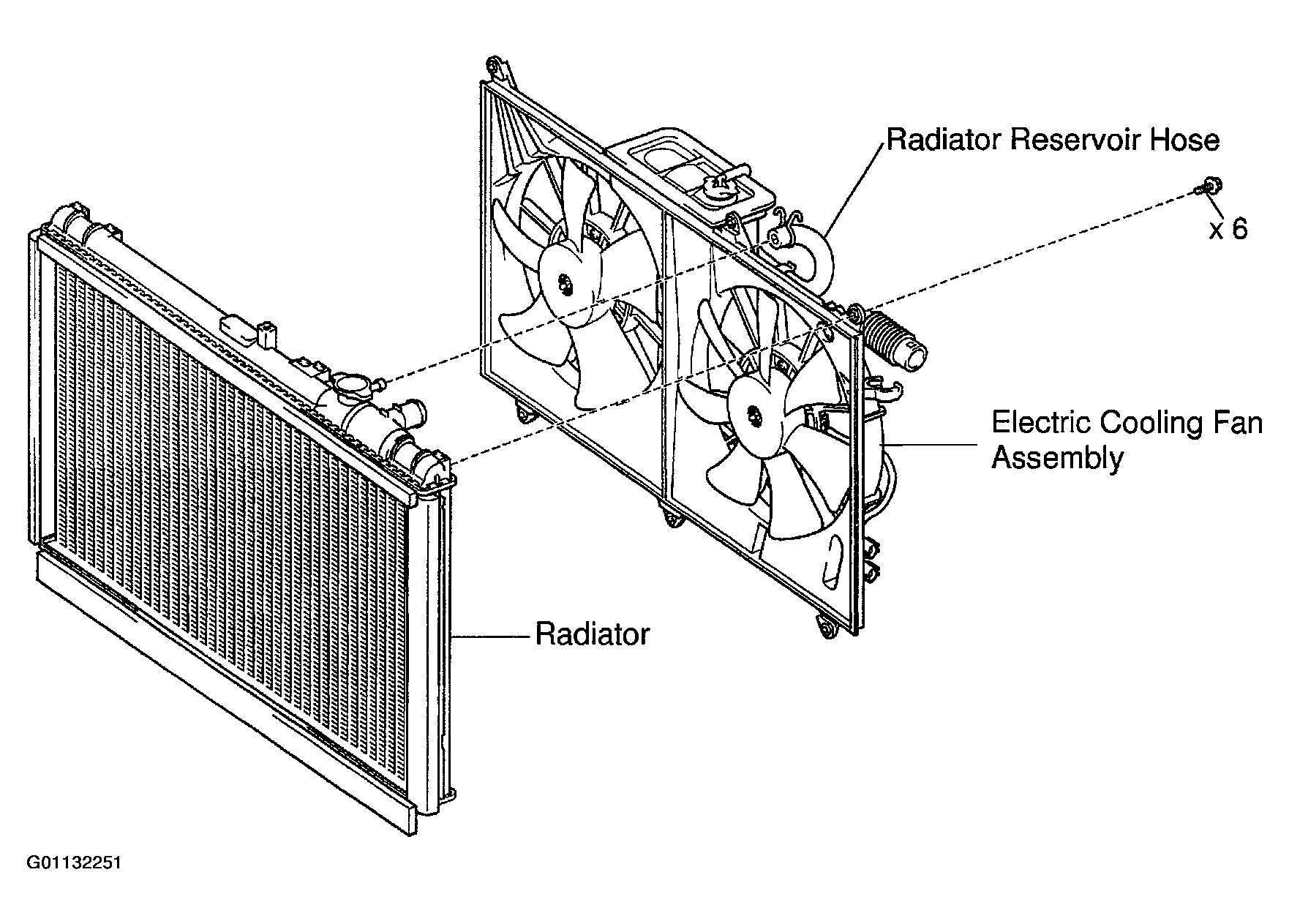

Fig 2: Identifying Radiator Components (2 Of 3)

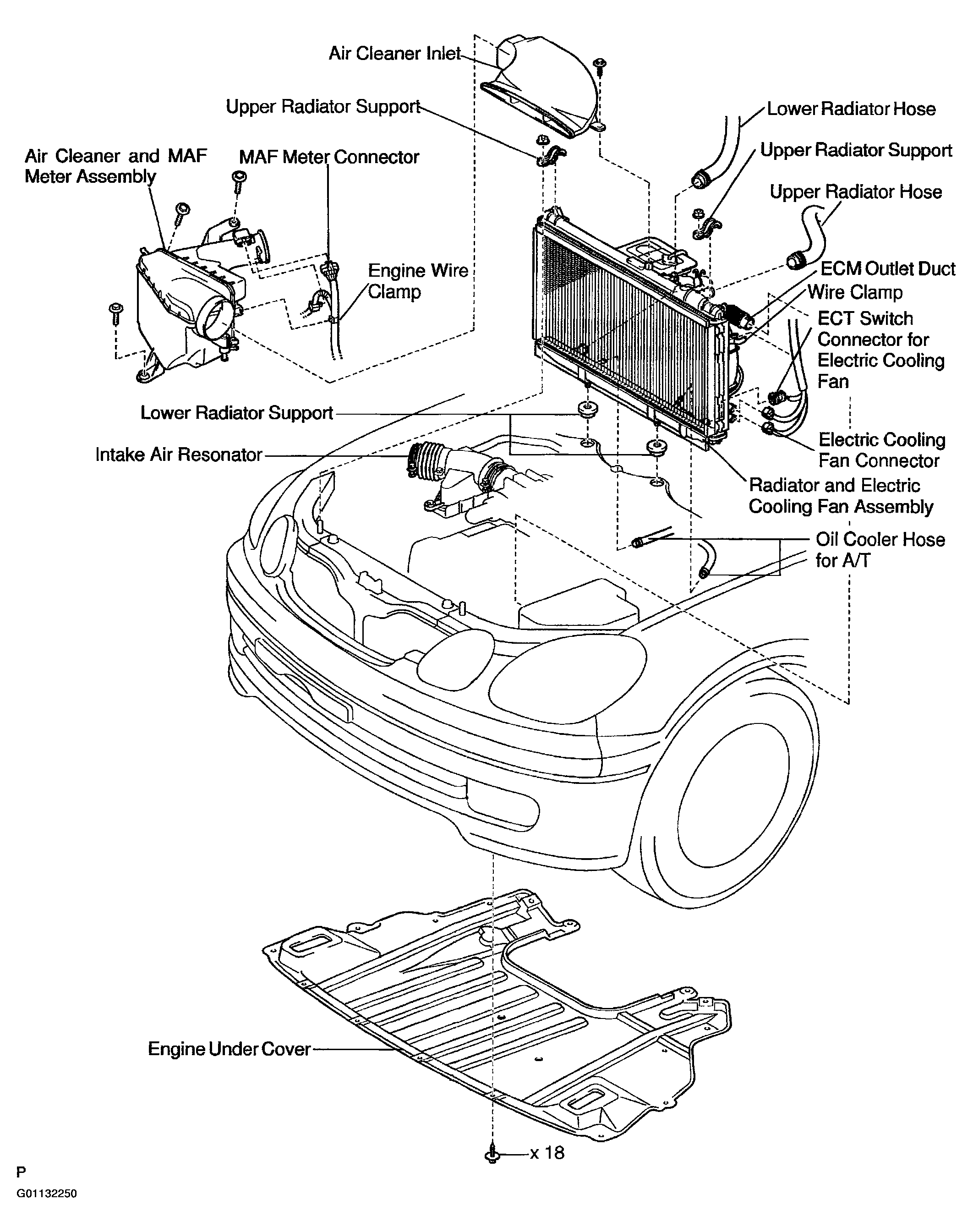

Fig 3: Identifying Radiator Components (3 Of 3)
