Air Conditioning Control Assembly: Removal

WARNING: This page is about a different car, the 2004 Lexus GS 430, 2004 Lexus GS 300, 2003 Lexus GS 430, and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THESE PARTS:
    1. No. 2 register
    2. Cluster finish panel:

      For 2004 model (See REMOVAL , INSTRUMENT PANEL).

      For 2003 model (See REMOVAL , INSTRUMENT PANEL).

  2. REMOVE A/C CONTROL ASSEMBLY WITH RADIO

    Remove the 4 bolts and pull out the A/C control assembly, then disconnect the connectors.

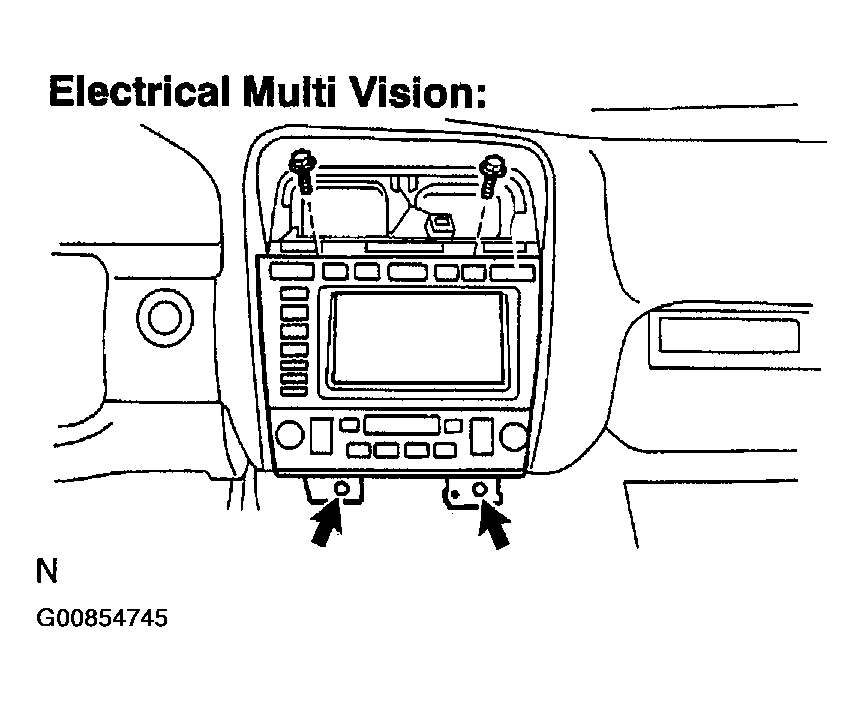

    Fig 1: Removing A/C Control Assembly
    G00854745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

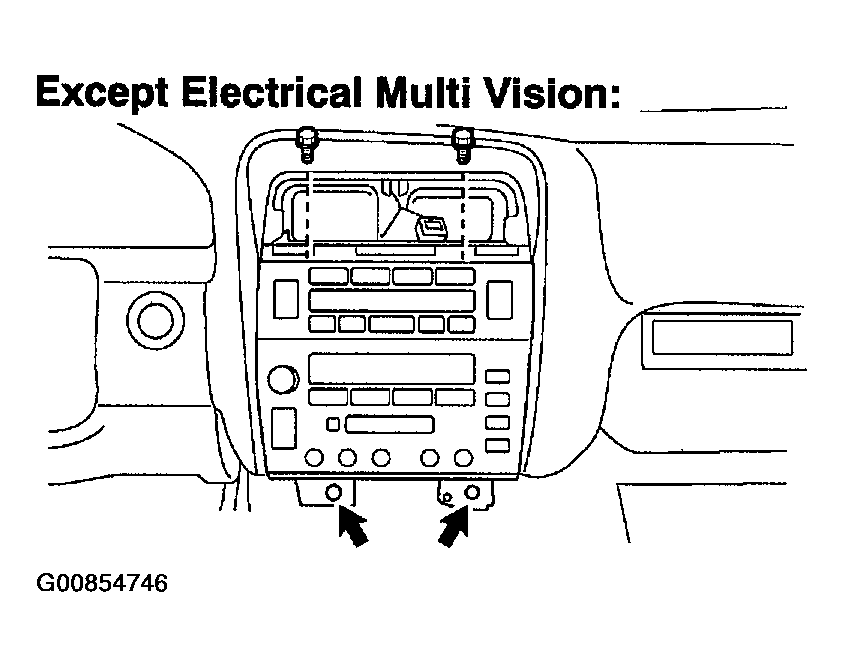

    Fig 2: Removing A/C Control Assembly With Radio Except Electrical Multi Vision
    G00854746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE A/C CONTROL ASSEMBLY FROM RADIO

    Remove the 8 bolts, 2 screw and 2 brackets, then remove the A/C control assembly.

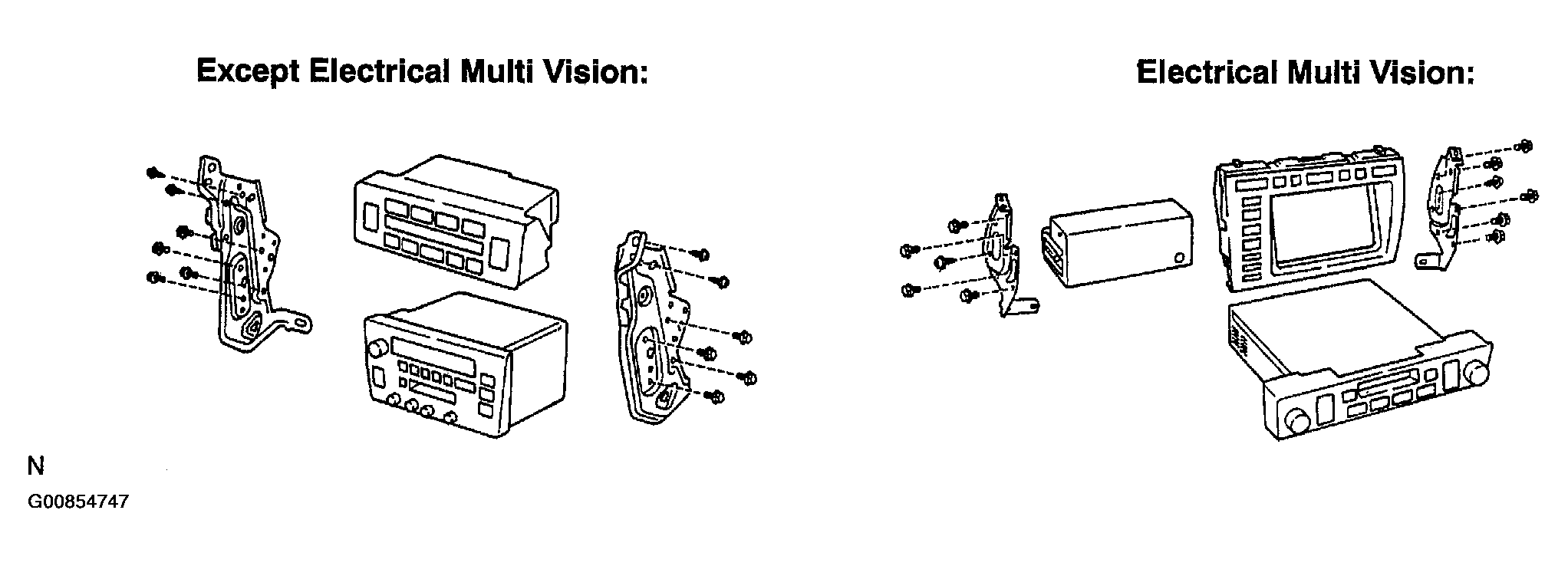

    Fig 3: Removing A/C Control Assembly
    G00854747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
