Section 330 (Interior Light System): Location

WARNING: This page is about a different car, the 2003 Lexus GS 430 and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

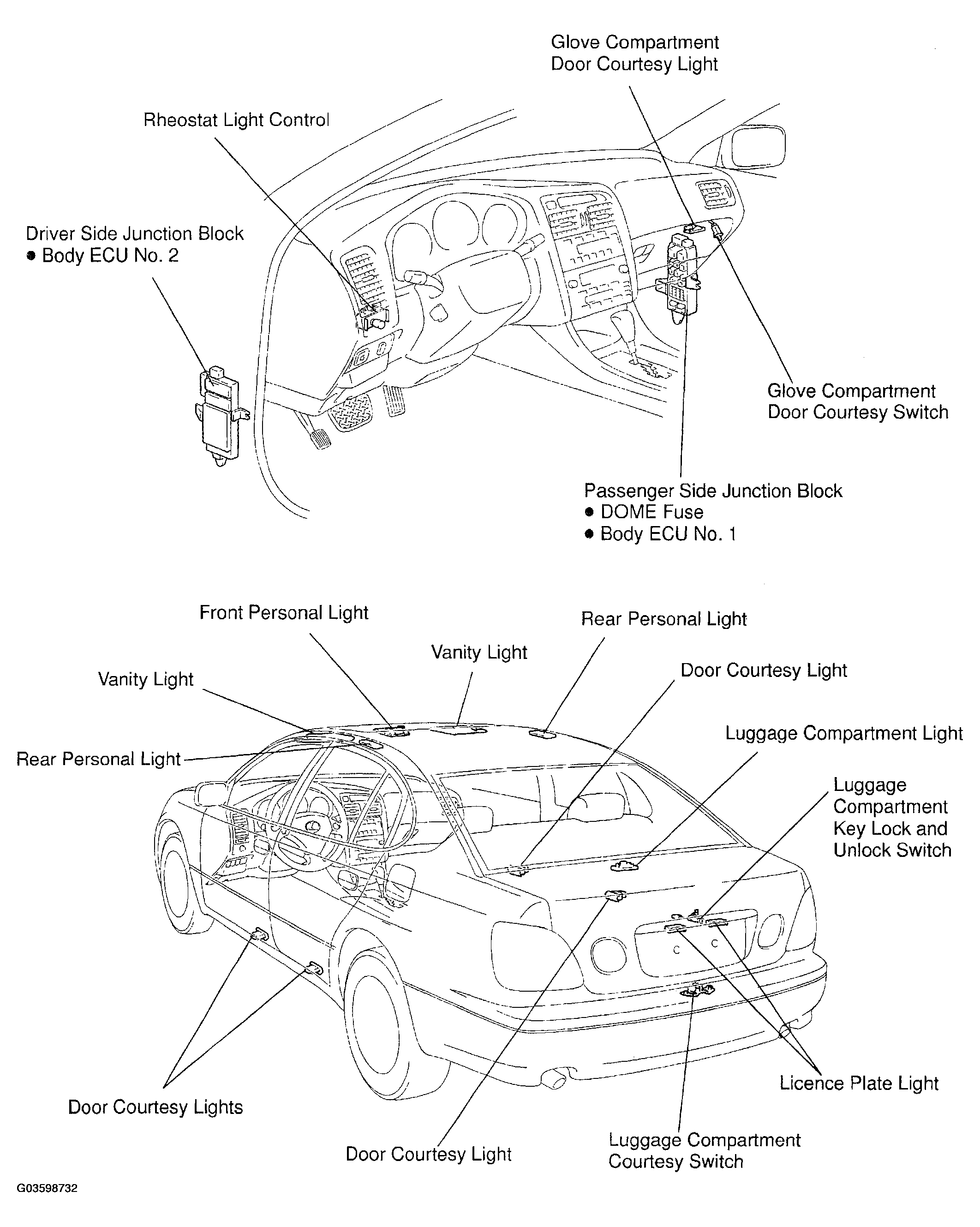

Fig 1: Locating Interior Light System Components
G03598732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
