Section 382 (Sliding Roof): Disassembly

1. Using a screwdriver, slide the drive cable rearward.

   HINT:

   Tape the screwdriver tip before use.

2. Remove the 4 screws and wind deflector panel.

Fig 1: Removing Wind Deflector Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and drive gear assembly.
2. Remove the 2 screws and map lamp bracket from the gear.
3. Disconnect the connector.

1. Remove the 10 screws.
2. Slide the drive cables forward.
3. Remove the cable guide casing.

Remove the roof drip channel from the drive cables.

Fig 2: Removing Roof Drip Channel From Drive Cables

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

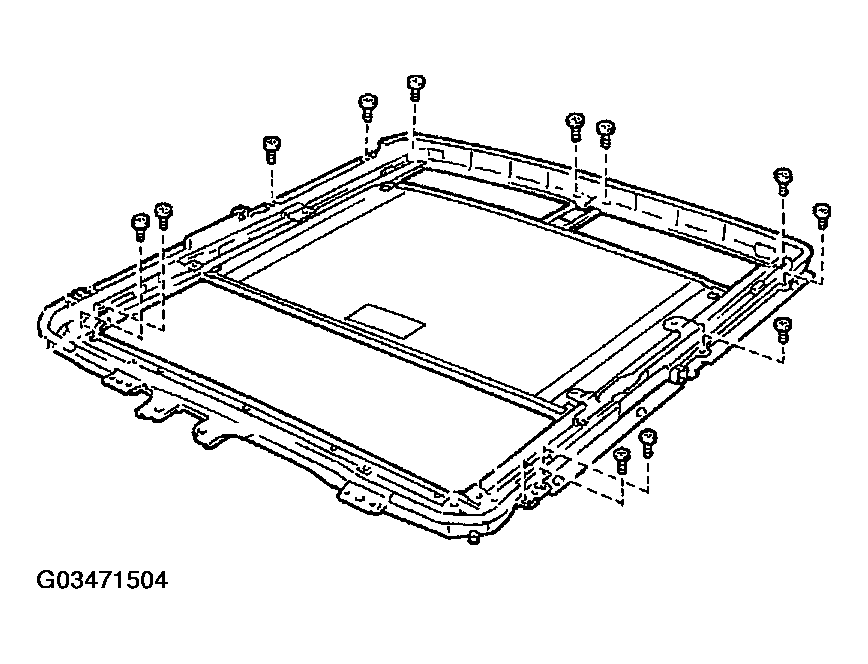

Remove the 12 screws and sliding roof casing.

Fig 3: Removing Screws And Sliding Roof Casing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw.
2. Slide the sliding roof guide block forward to remove it.
3. Use the same manner described above to the other side.

Remove the 2 screws and 2 stoppers from the drive rails.

Slide the sunshade trim rearward to remove it.

Fig 4: Removing Sunshade Trim

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide the drive cables forward to remove them from the drive rails.

Remove the 2 screws and rear housing frame from the center housing frame.

Remove the 4 screws and center housing frame from the drive rails.

Remove the 4 screws and brackets from the drive rails.
