Section 382 (Sliding Roof): Installation

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SLIDING ROOF HOUSING
    1. Install the sliding roof housing with the 6 nuts to the body.

      Torque: 5.5 N.m (56 kgf.cm, 49 in. lbf)

    2. Install the 6 brackets with the 12 bolts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in. lbf)

    3. Connect the 4 drain hoses with the 4 clips to the housing.

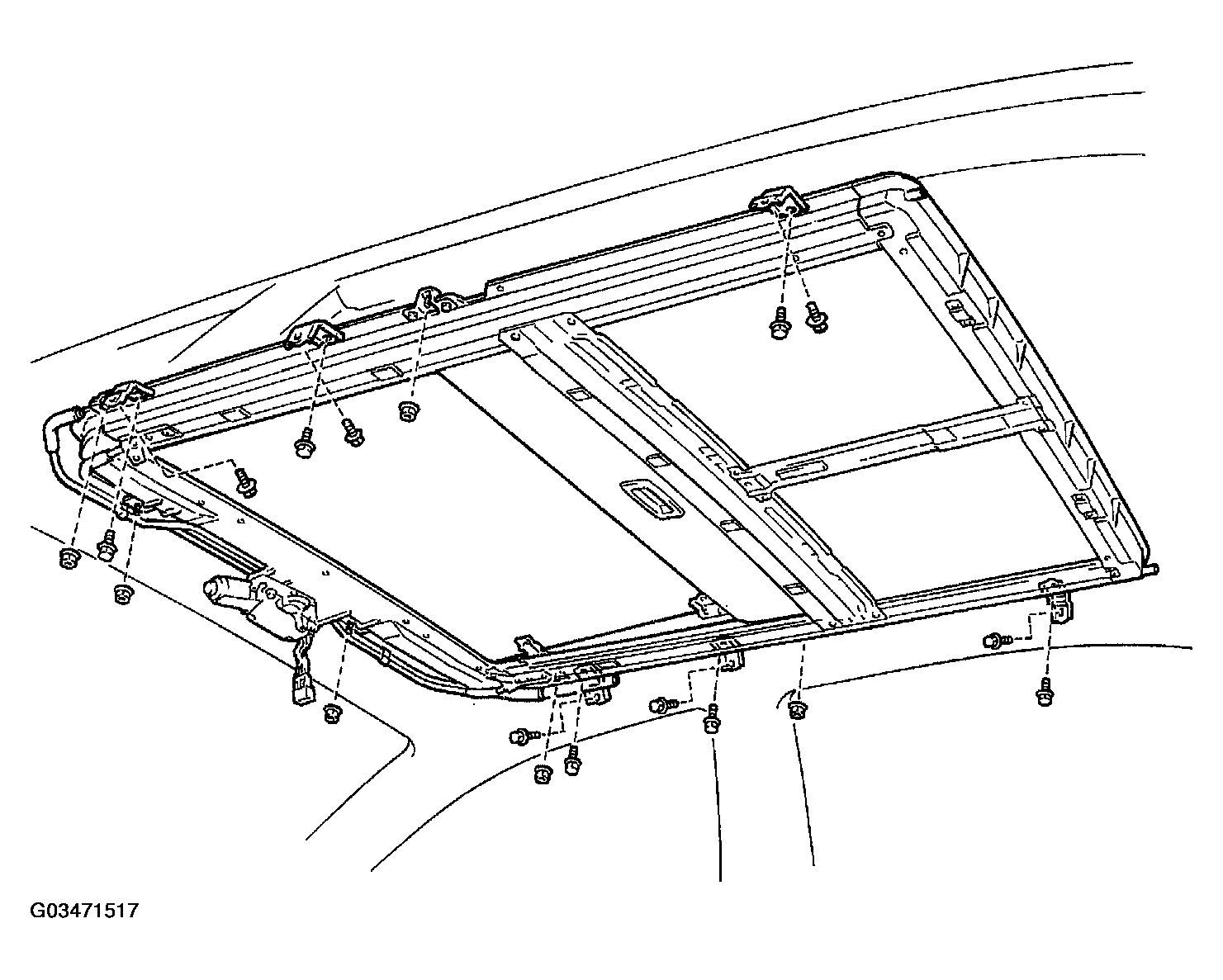

    Fig 1: Connecting Drain Hoses With Clips To Housing
    G03471517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SLIDING ROOF GLASS

    Install the sliding roof glass with the 4 nuts.

    Torque: 5.5 N.m (56 kgf.cm, 49 in. lbf)

    Fig 2: Installing Sliding Roof Glass
    G03471518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SLIDING ROOF GARNISHES

    Install the sliding roof garnishes to the body.

    Fig 3: Installing Sliding Roof Garnishes To Body
    G03471519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL ROOF HEADLINING
    1. Install the 2 side rail spacers with the 6 screws.
    2. Slide the roof headlining rearward to connect the hook to the body.
    3. Fasten the fastener tape and install the 3 clips to the body.

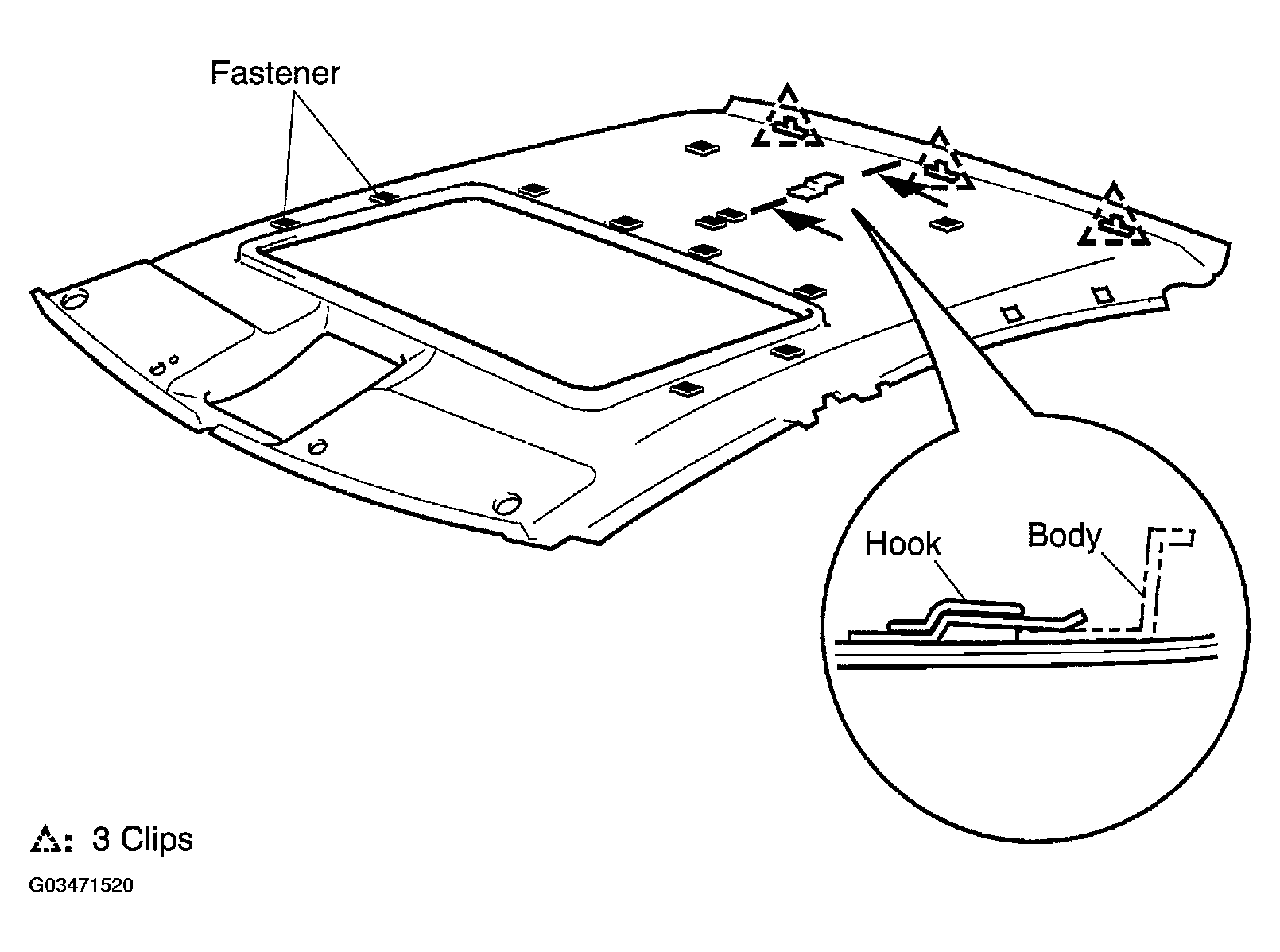

    Fig 4: Installing Roof Headlining
    G03471520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL HOLDERS

    Install the 2 holders with the 2 screws.

  6. INSTALL ROOF SIDE INNER GARNISH
    1. Install the roof side inner garnish spacer with the 3 screws.
    2. Install the roof side inner garnish as shown in the illustration.
    3. Use the same manner described above to the other side
    Fig 5: Installing Roof Side Inner Garnish
    G03471521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CENTER PILLAR UPPER GARNISH
    1. Install center pillar upper garnish with the 2 screws.
    2. Use the same manner described above to the other side.
    Fig 6: Installing Center Pillar Upper Garnish
    G03471522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL CENTER PILLAR LOWER GARNISH
    1. Install the center pillar lower garnish as shown in the illustration.
    2. Use the same manner described above to the other side.
    Fig 7: Installing Center Pillar Lower Garnish
    G03471523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT PILLAR GARNISH
    1. Install the front pillar garnish and cover.
    2. Install the bolt.

      Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

    3. Close the cover.
    4. Use the same manner described above to the other side.
  10. INSTALL MAP LAMP ASSEMBLY
    1. Connect the connectors.
    2. Install the map lamp assembly with the 4 screws.
    3. Install the lens and cover.
  11. INSTALL INNER REAR VIEW MIRROR COVER
  12. INSTALL SUN VISORS
  13. INSTALL ASSIST GRIPS
  14. INSTALL REAR PERSONAL LIGHTS
  15. INSTALL REAR DOOR OPENING TRIMS
  16. INSTALL FRONT DOOR OPENING TRIMS
  17. INSTALL REAR SEAT SIDE GARNISHES
  18. INSTALL REAR DOOR INSIDE SCUFF PLATES
  19. INSTALL FRONT DOOR INSIDE SCUFF PLATES
  20. INSTALL REAR SEATBACK (See  INSTALLATION  )
  21. INSTALL REAR SEAT CUSHION (See  INSTALLATION  )
