Section 470 (Roof Headlining): Components

WARNING: This page is about a different car, the 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

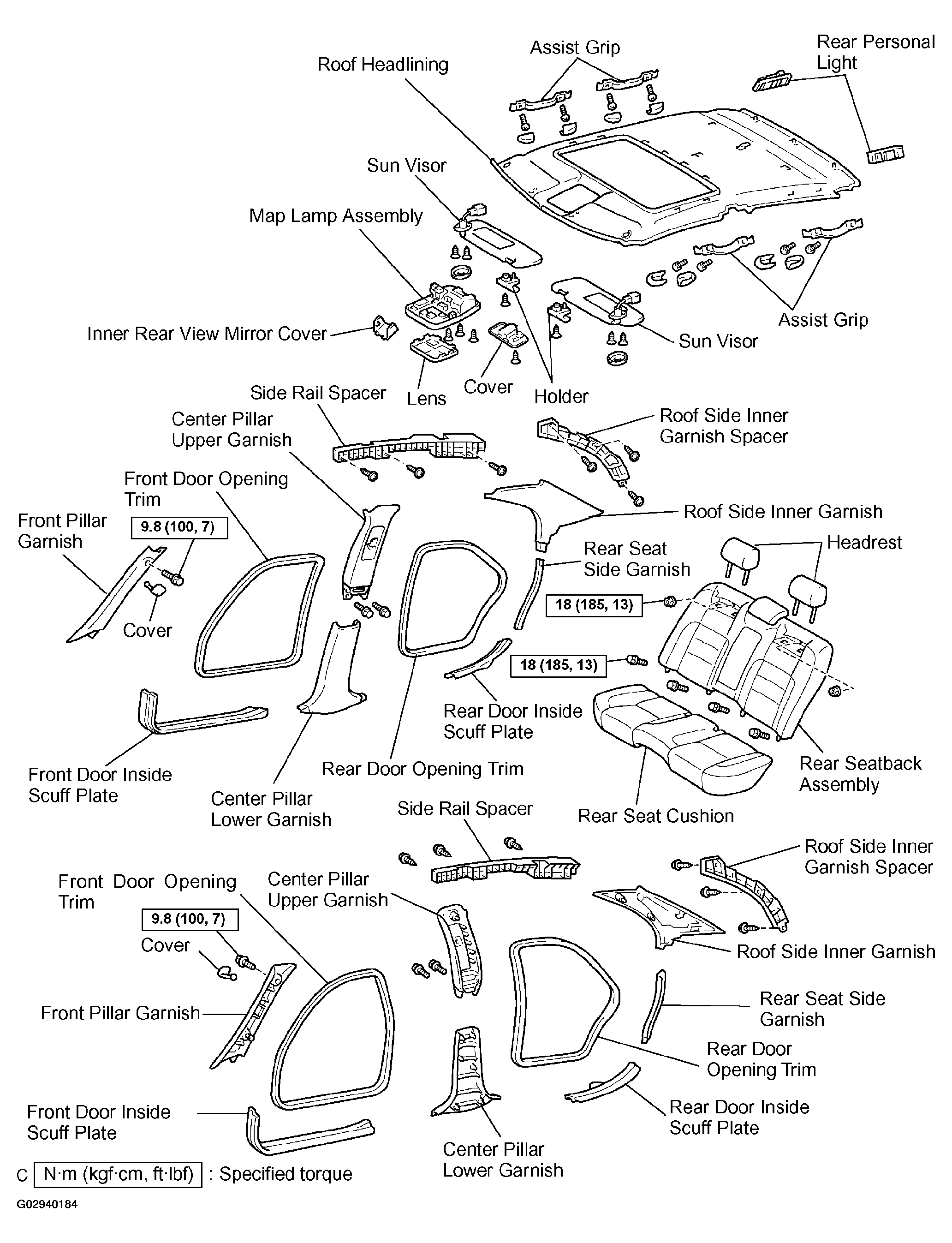

Fig 1: Identifying Roof Headlining Components
G02940184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
