Section 470 (Roof Headlining): Installation

1. Install the 2 side rail spacers with the 6 screws.
2. Slide the roof headlining rearward to connect the hook to the body.
3. Fasten the fastener tape and install the 3 clips to the body.

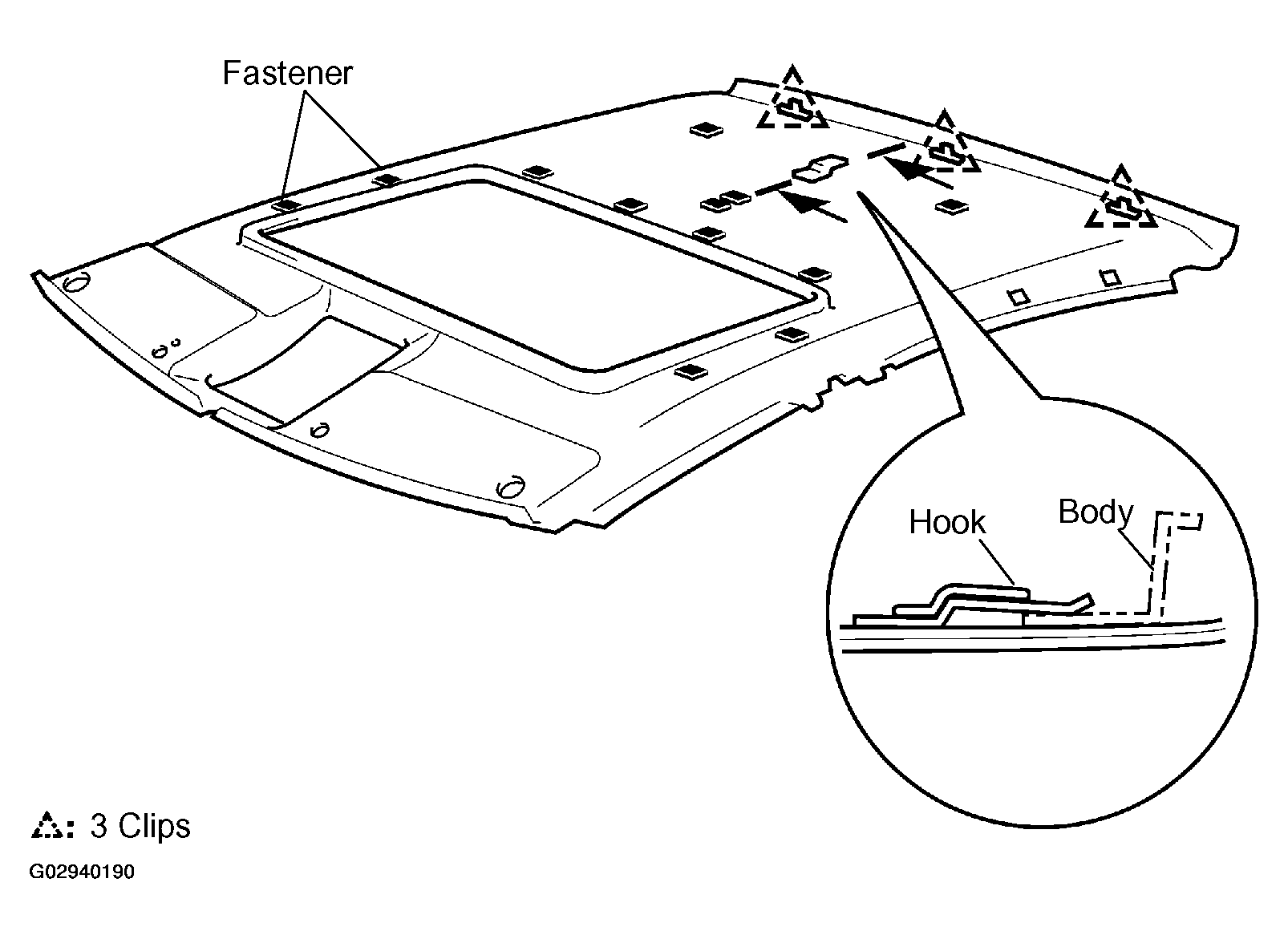

   Fig 1: Installing Roof Headlining

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the 2 holders with the 2 screws.

1. Install the roof side inner garnish spacer with the 3 screws.
2. Install the roof side inner garnish as shown in the illustration.
3. Use the same manner described above to the other side.
   Fig 2: Installing Roof Side Inner Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install center pillar upper garnish with the 2 screws.
2. Use the same manner described above to the other side.
   Fig 3: Installing Center Pillar Upper Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the center pillar lower garnish as shown in the illustration.
2. Use the same manner described above to the other side.
   Fig 4: Installing Center Pillar Lower Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front pillar garnish and cover.
2. Install the bolt.

   Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

3. Close the cover.
4. Use the same manner described above to the other side.

1. Connect the connectors.
2. Install the map lamp assembly with the 4 screws.
   Fig 5: Installing Front Pillar Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the lens and cover.
