Alignment Specifications & Procedures: Specifications

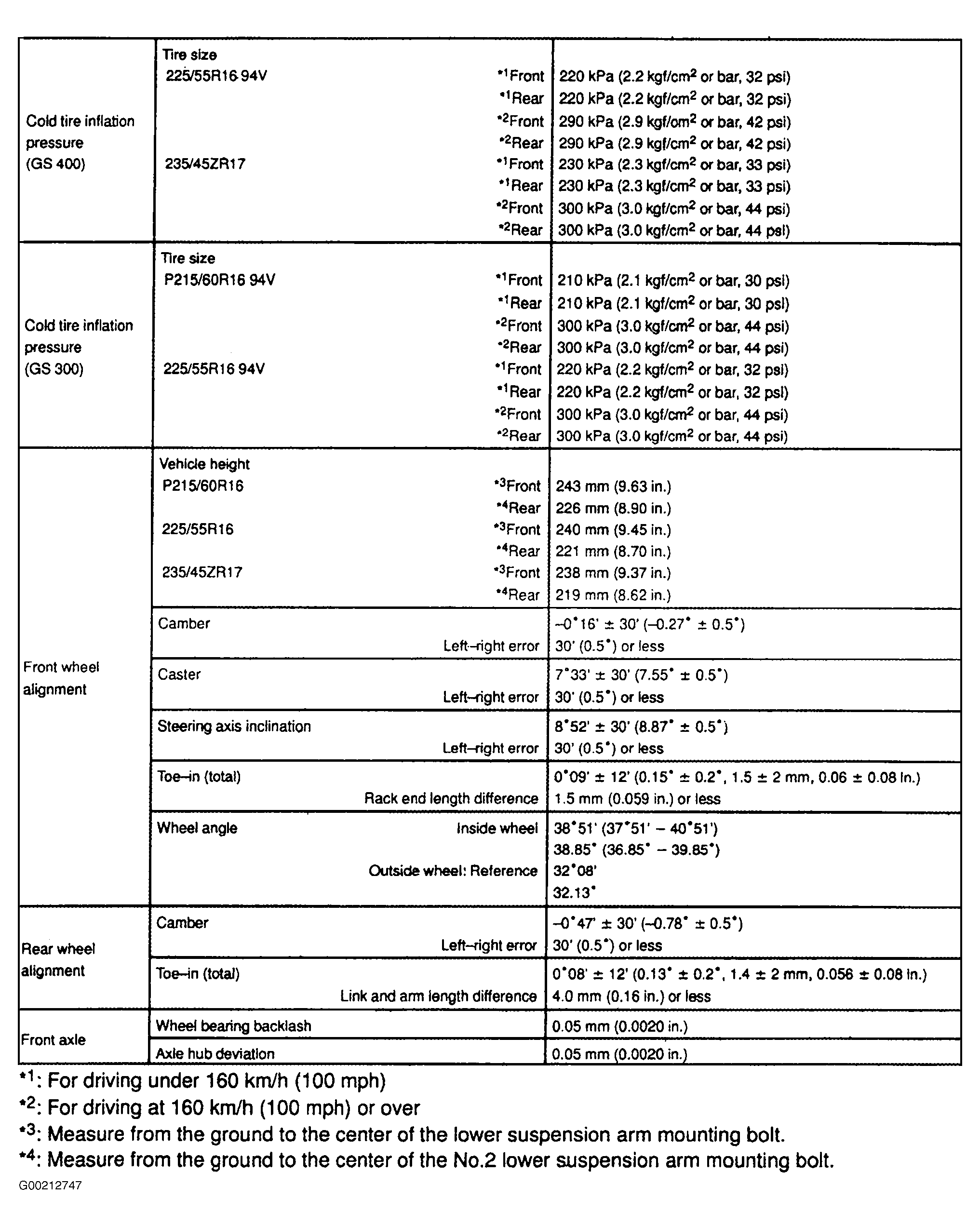

Fig 1: Wheel Alignment Specifications - GS 300 & GS 430
G00212747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
