Problem Symptoms Table
›
Headlight Cleaner System
Headlight Cleaner System

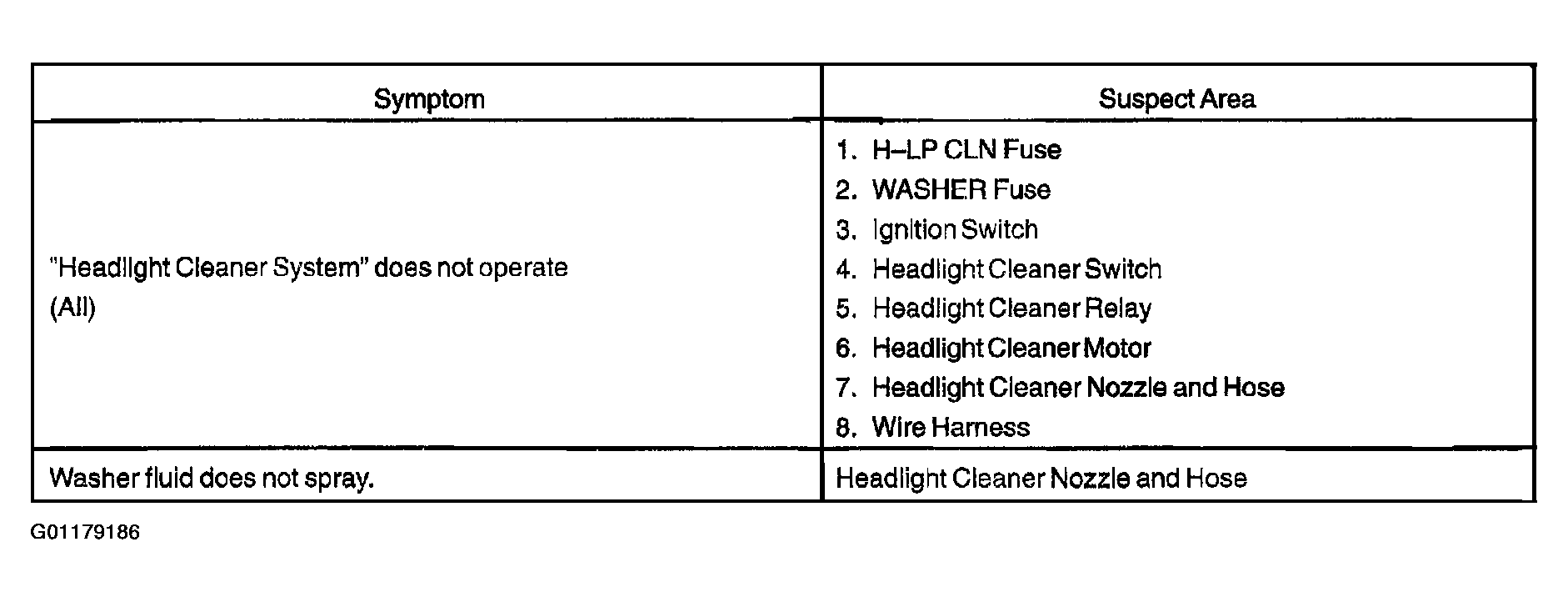

Fig 1: Identifying Headlight Cleaner System Symptom/Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
