Key Unlock Warning Switch

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

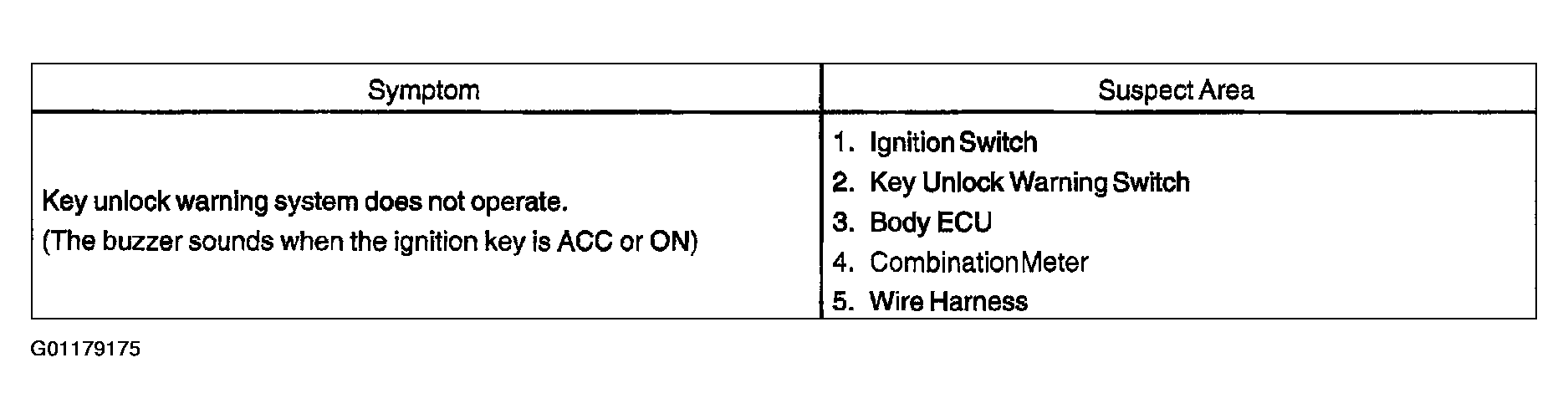

Fig 1: Identifying Ignition Switch Symptom/Suspect Areas
G01179175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
