Power Door Lock Control System

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

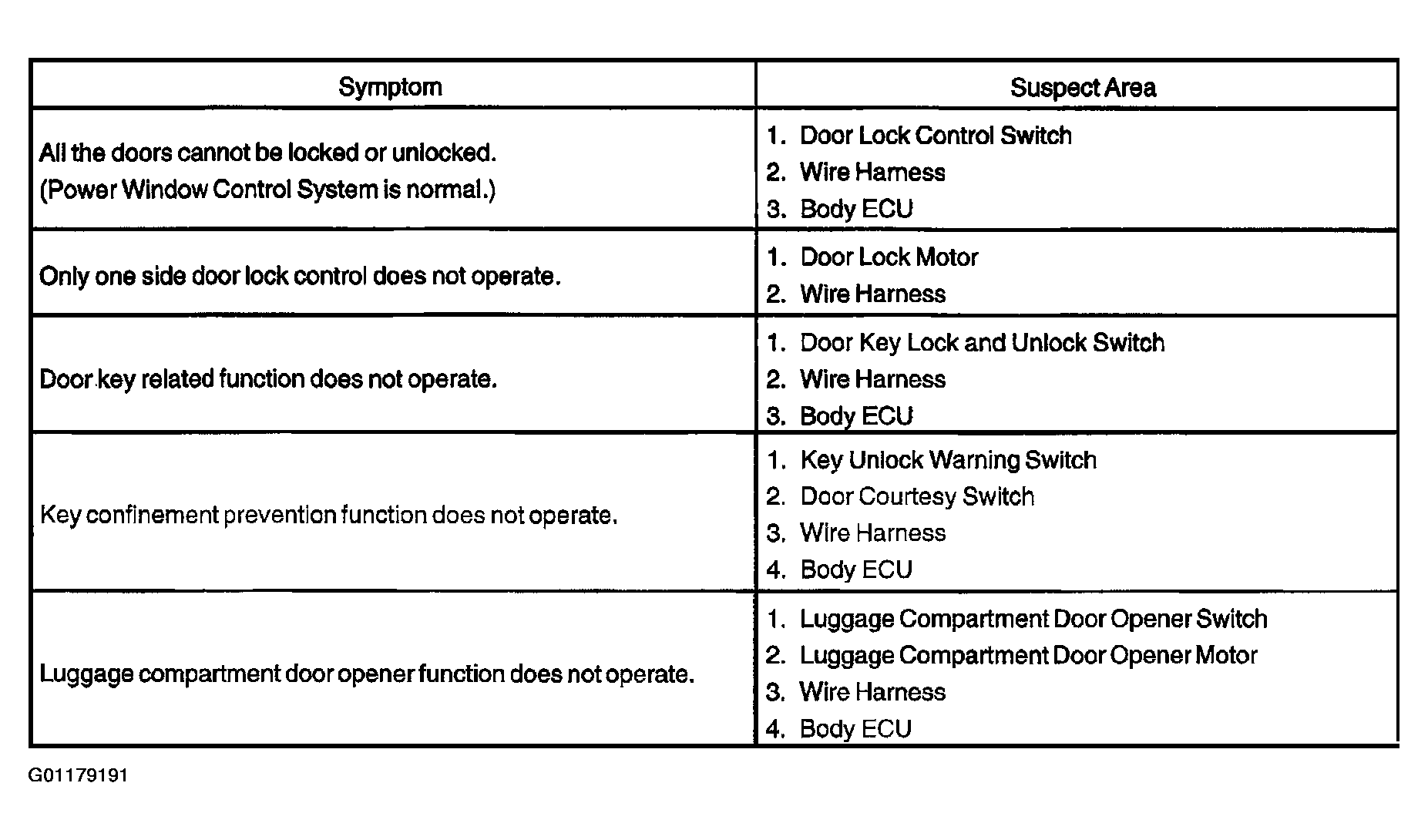

Fig 1: Identifying Power Door Lock Control System Symptom/Suspect Areas
G01179191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
