Power Seat Control System
Power Seat Control System

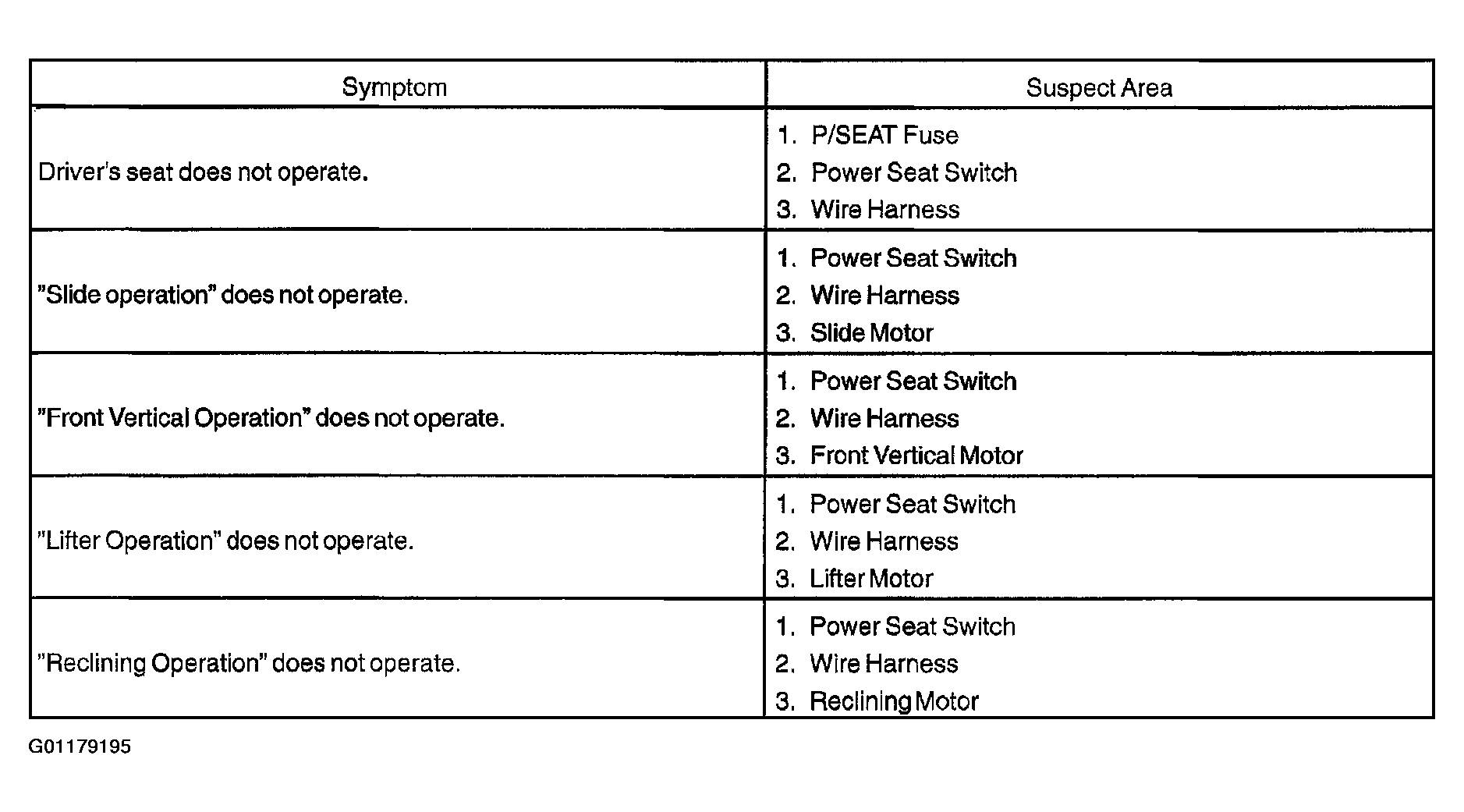

Fig 1: Identifying Power Seat Control System Symptom/Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(D): Driver's Seat
(P): Passenger's Seat
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
