Seat Heater System
Seat Heater System

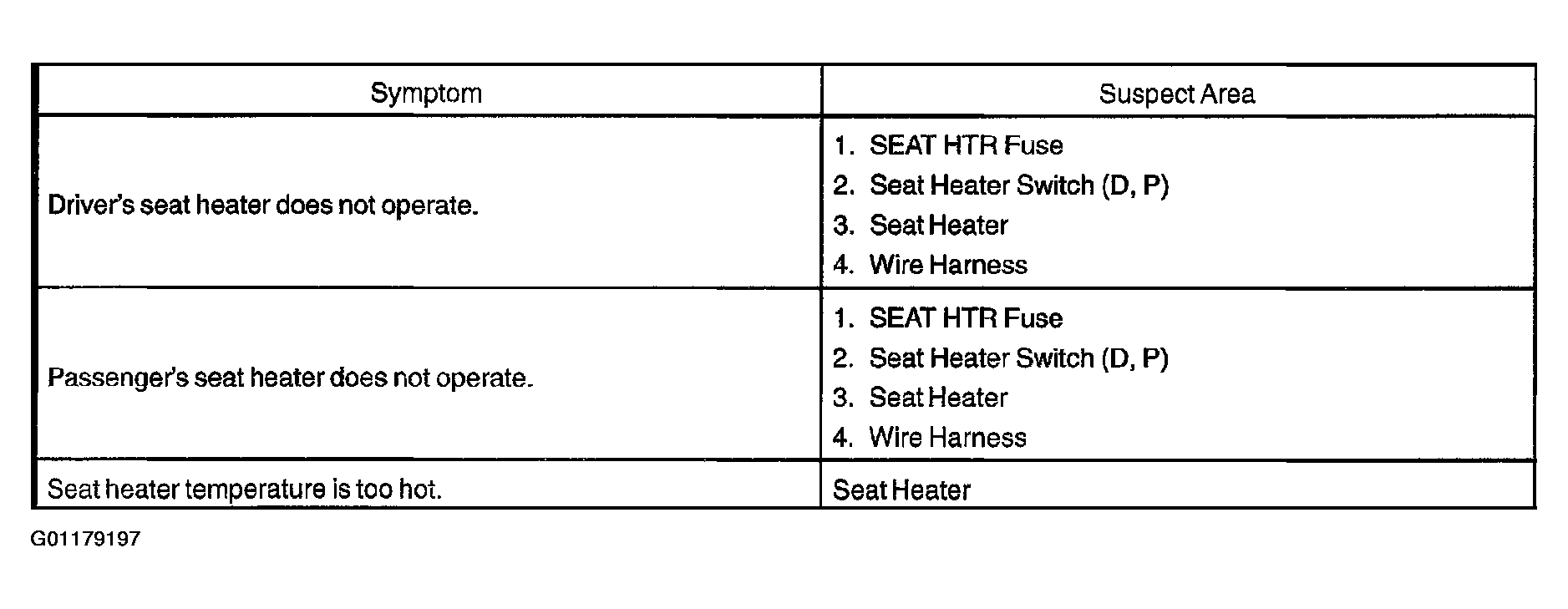

Fig 1: Identifying Seat Heater System Symptom/Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
