Problem Symptoms Table
›
Sliding Roof System
Sliding Roof System

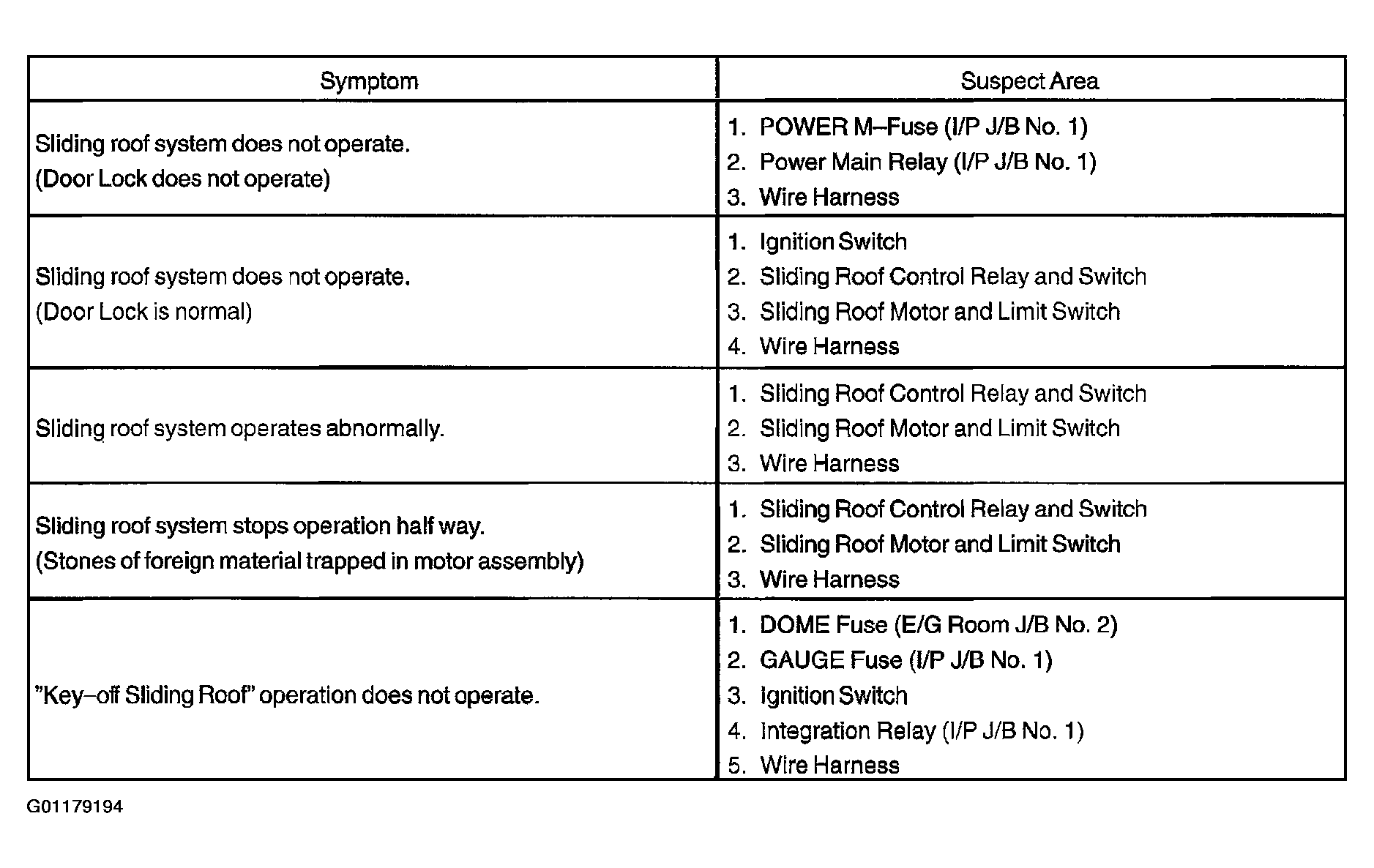

Fig 1: Identifying Sliding Roof System Symptom/Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
