Lexus
›
2002
›
IS 300 Base, Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock
›
Pin Voltage Test
Pin Voltage Test

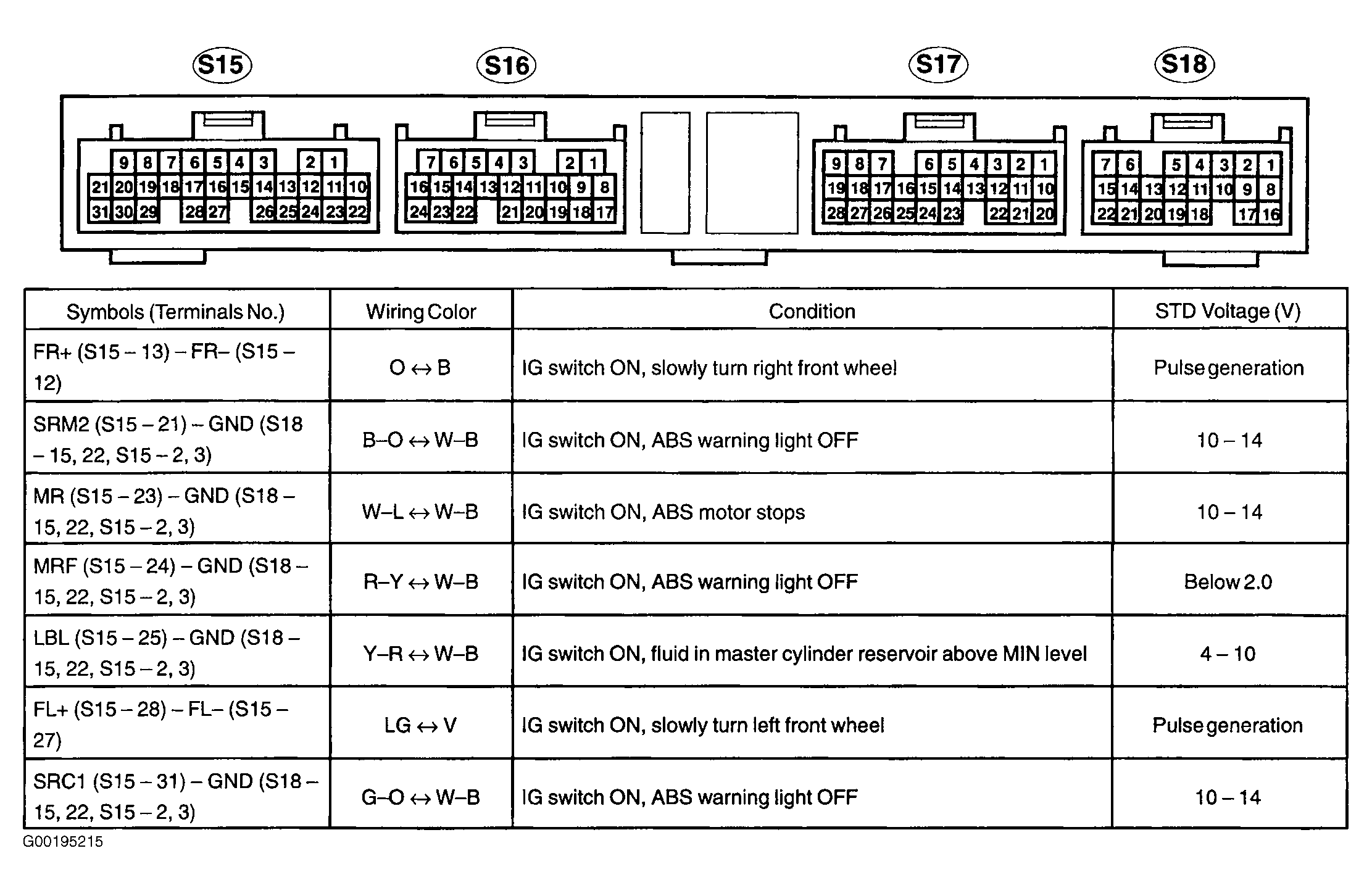

Fig 1: ABS ECU Pin Voltage Chart (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

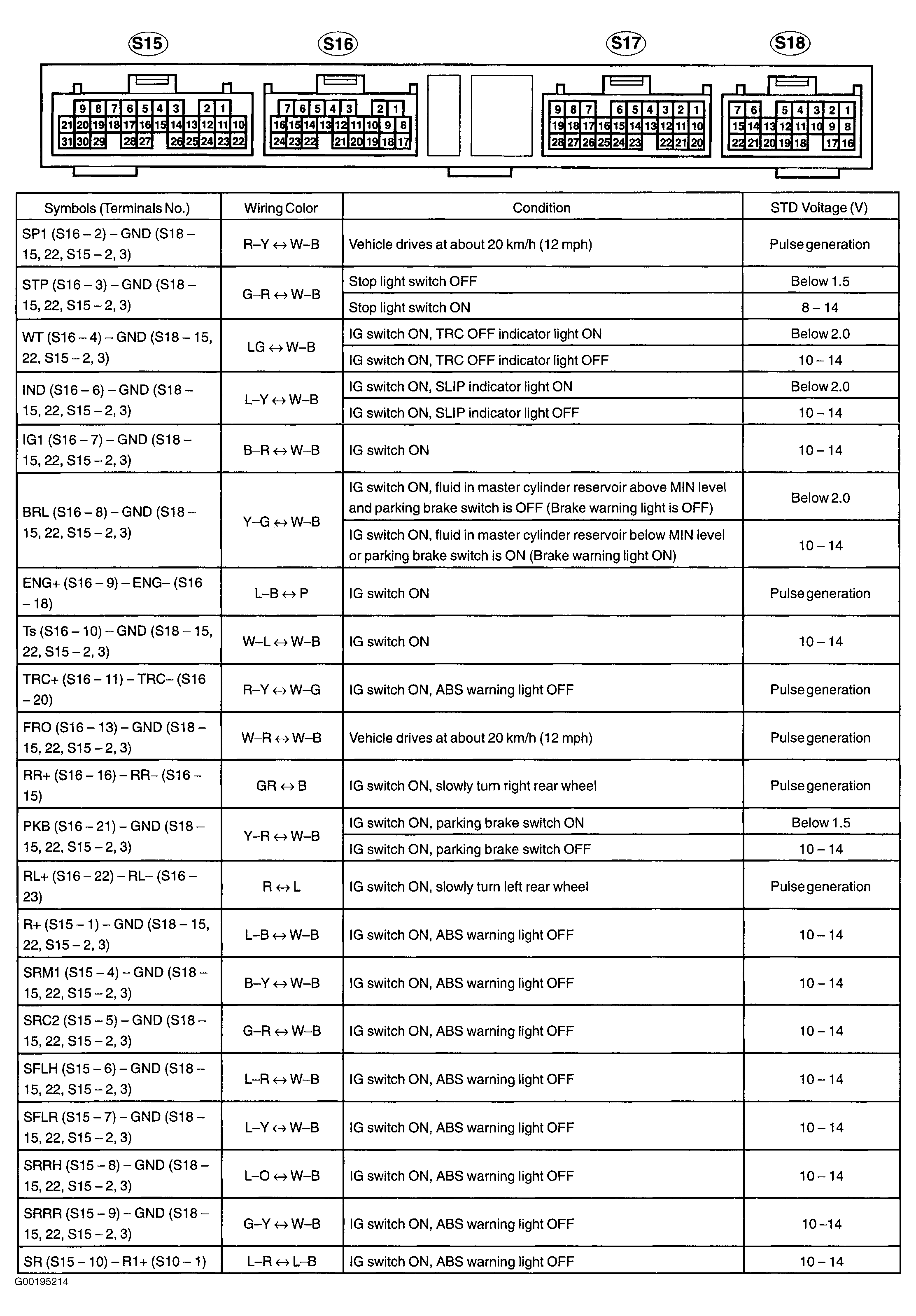

Fig 2: ABS ECU Pin Voltage Chart (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

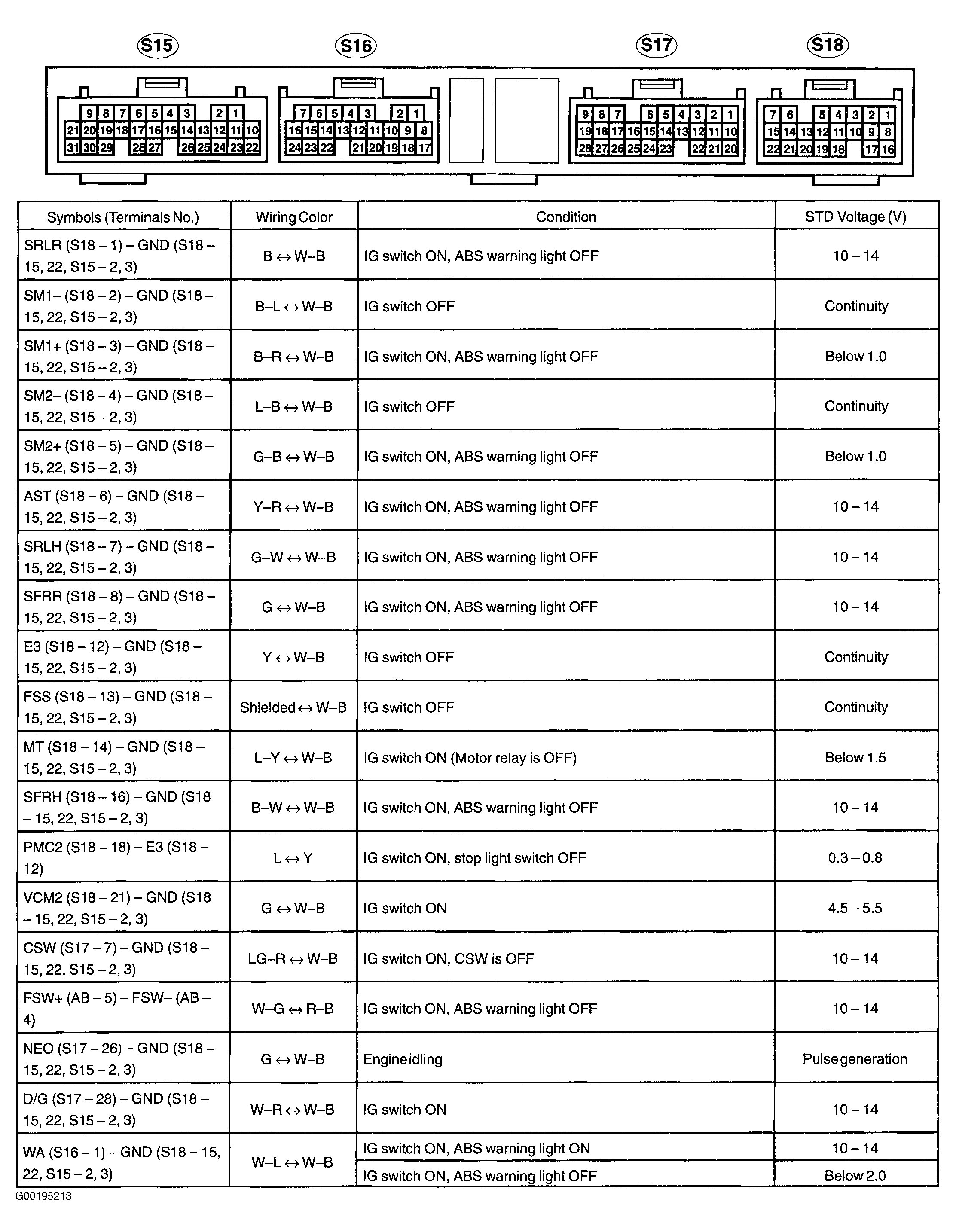

Fig 3: ABS ECU Pin Voltage Chart (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
