Power Steering Vane Pump: Components

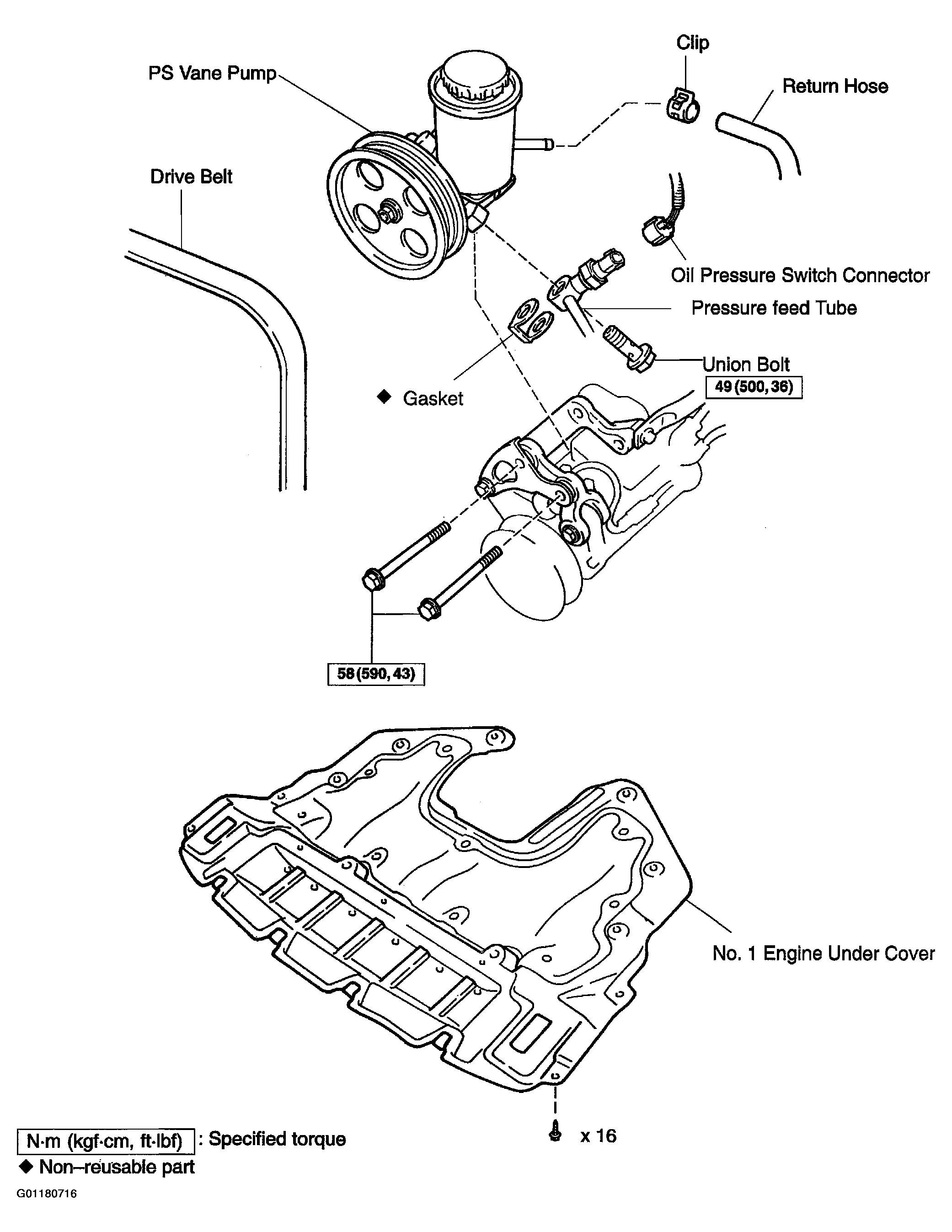

Fig 1: Identifying Power Steering Vane Pump Components (1 Of 2)
G01180716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

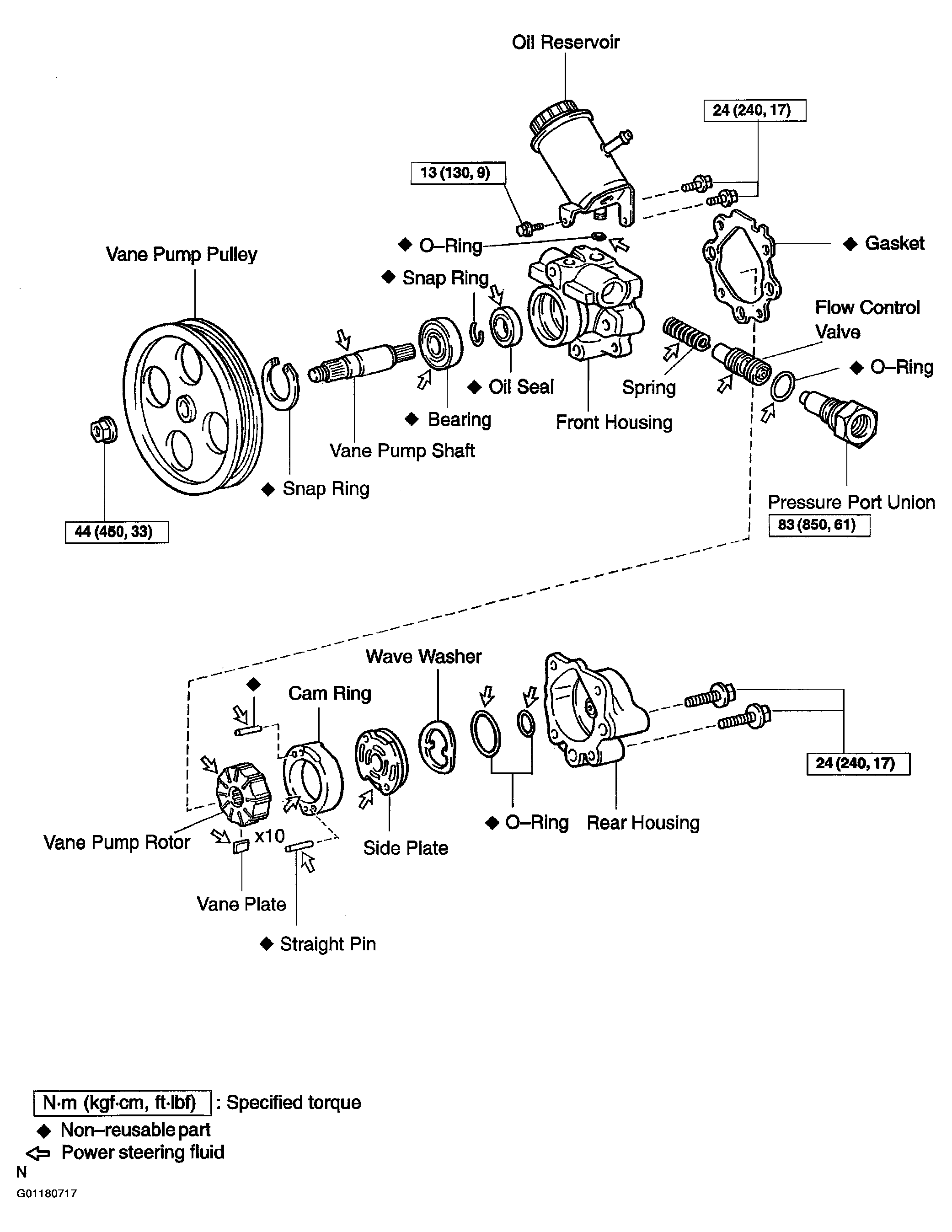

Fig 2: Identifying Power Steering Vane Pump Components (2 Of 2)
G01180717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
