Wiper And Washer System
Wiper And Washer System

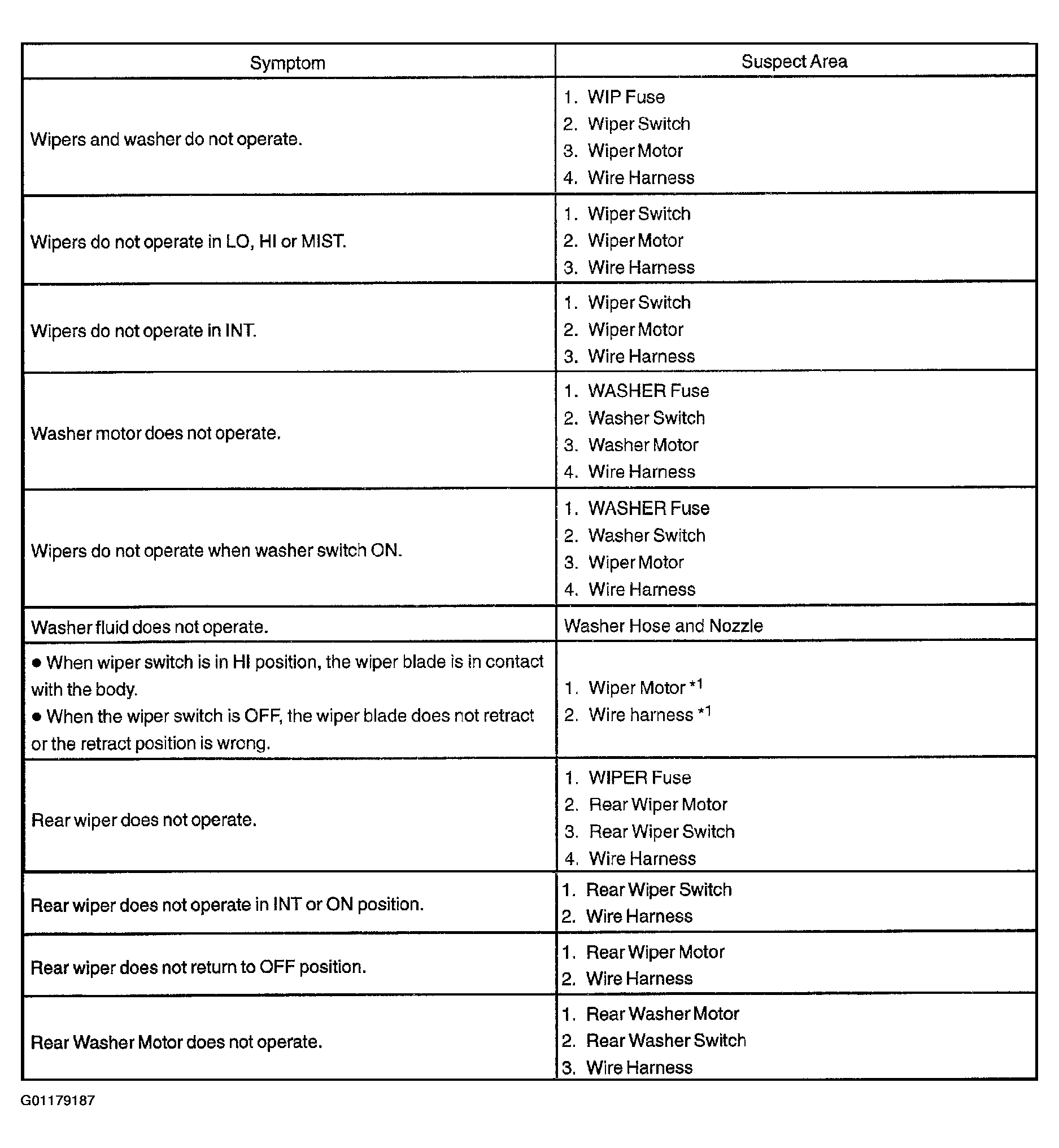

Fig 1: Identifying Wiper & Washer System Symptom/Suspect Areas
