Testing Procedure

For testing procedure, see Fig 1 and Fig 2 .

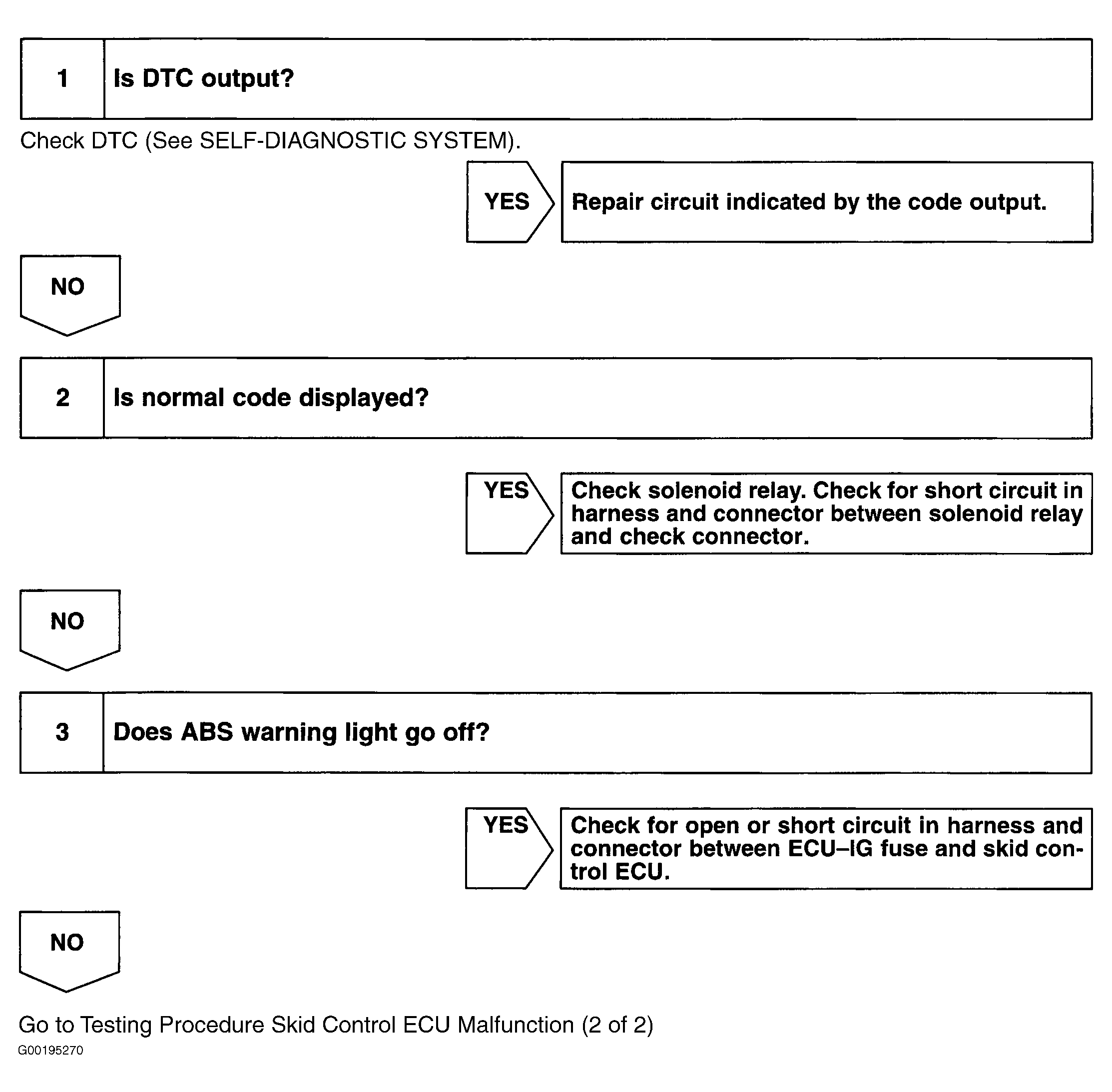

Fig 1: Testing Procedure Skid Control ECU Malfunction (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

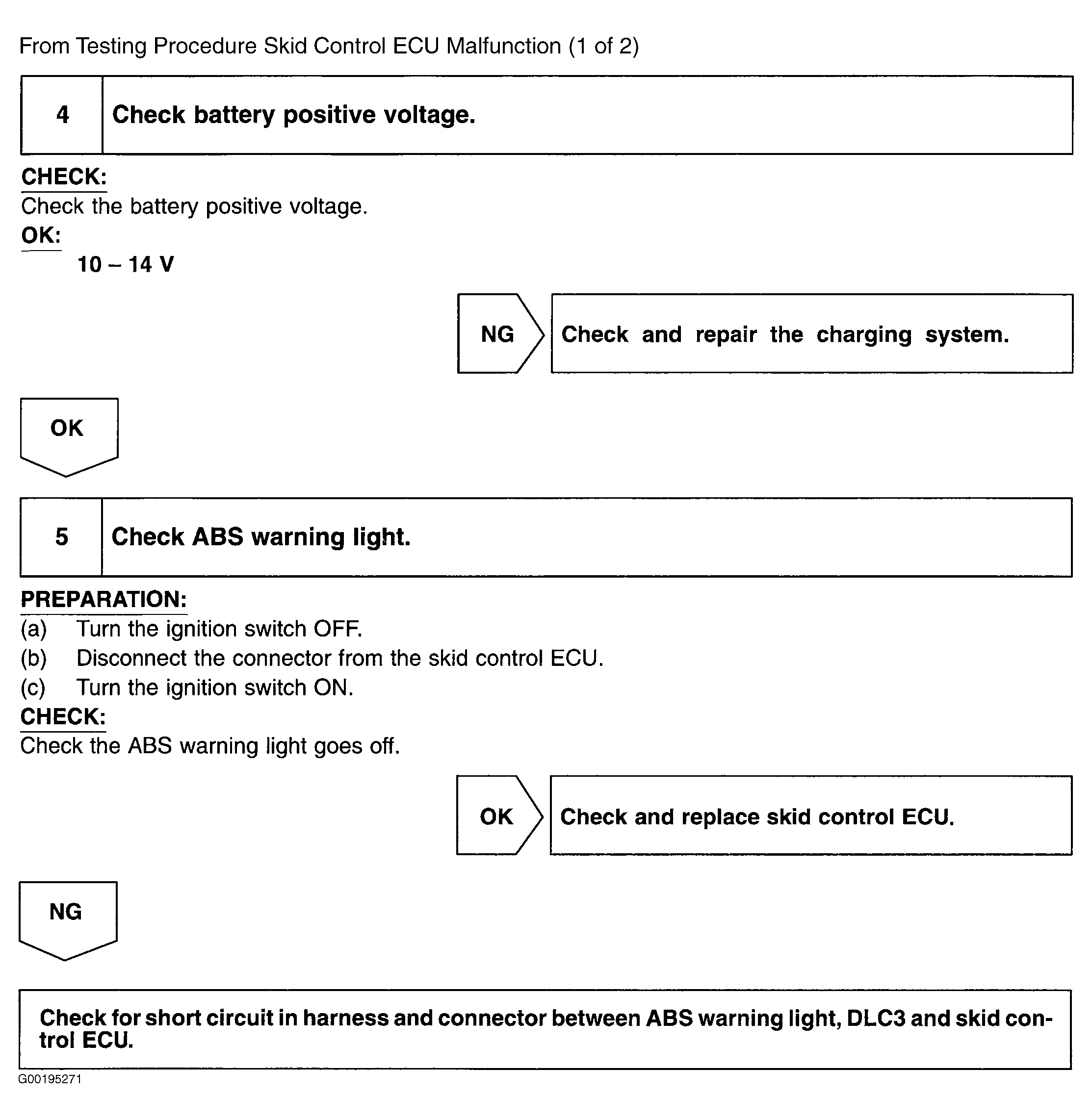

Fig 2: Testing Procedure Skid Control ECU Malfunction (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
