Circuit Description

The hazard warning switch sends a signal to the driver side junction block (body No. 2) ECU. See Fig 1.

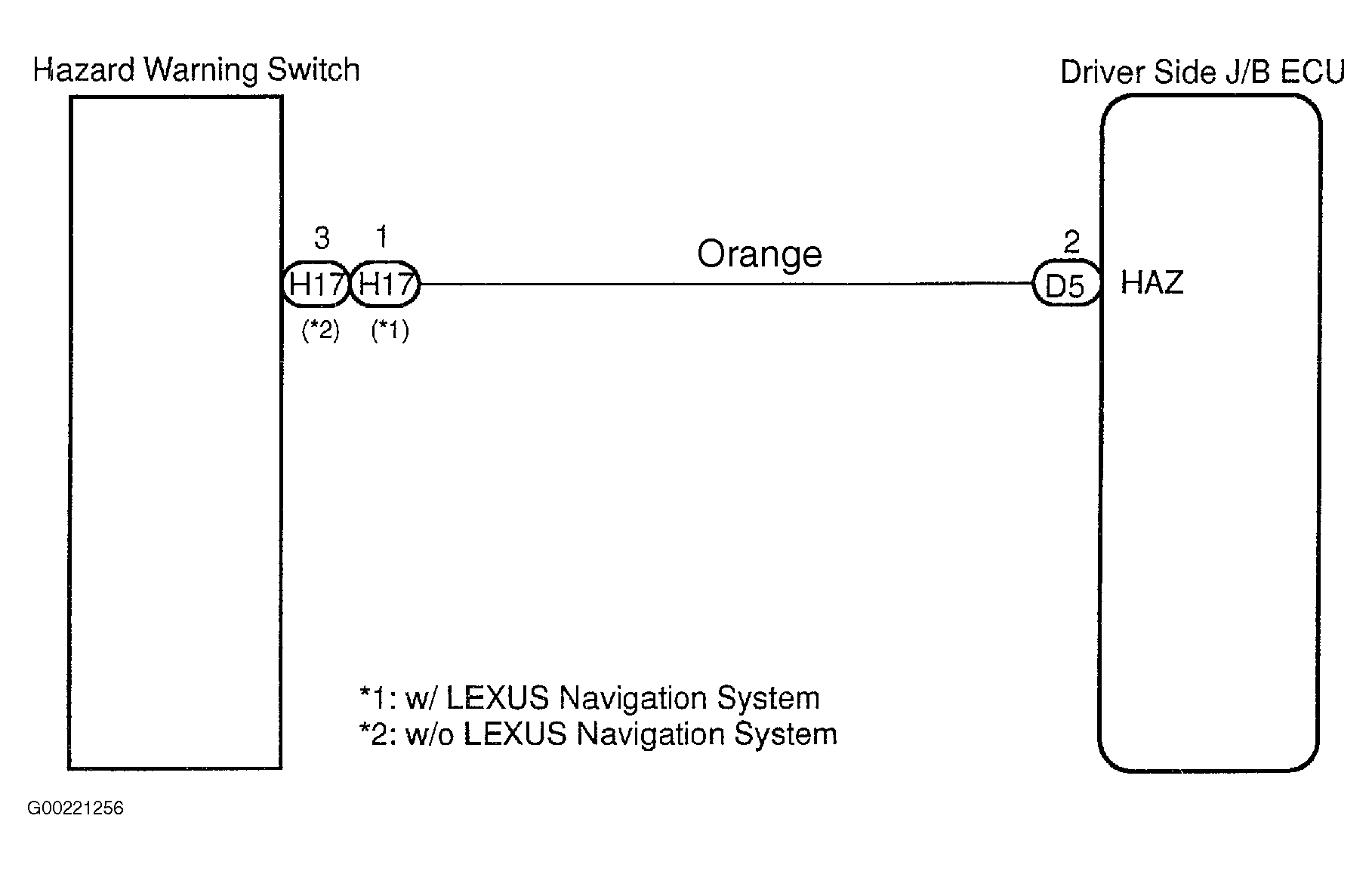

Fig 1: Identifying Hazard Switch Circuit
G00221256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
