Circuit Description

Receiving the brake pedal signal from the luggage room junction block (body No. 4) ECU makes the stop light come on. For circuit diagram, see Fig 1.

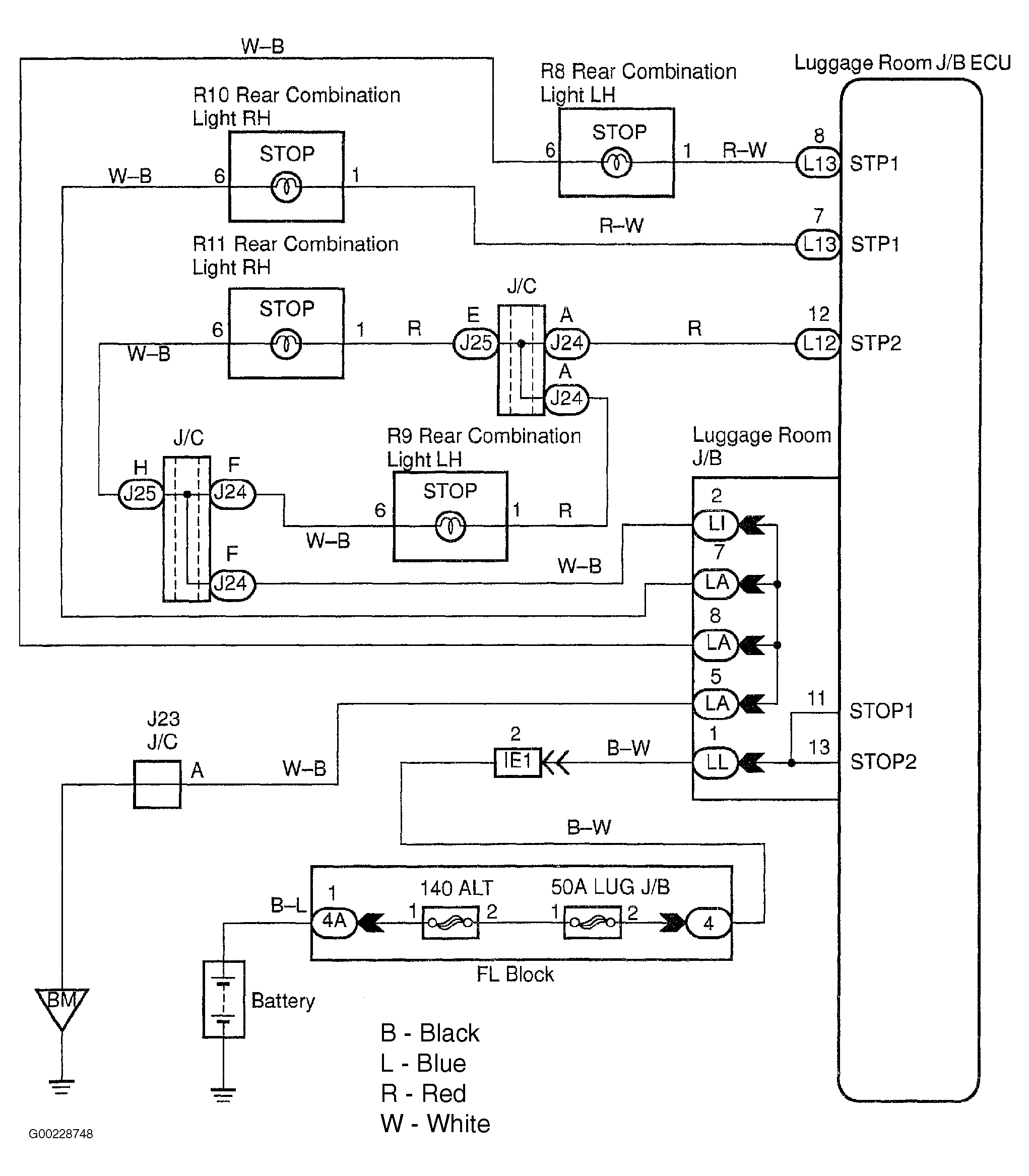

Fig 1: Identifying Stop Light Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
