Component Locations

For component locations, see Fig 1-Fig 5 .

Fig 1: Identifying Driver Side Junction Block (Body No. 2) Control System Component Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Passenger Side Junction Block (Body No. 3) Control System Component Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

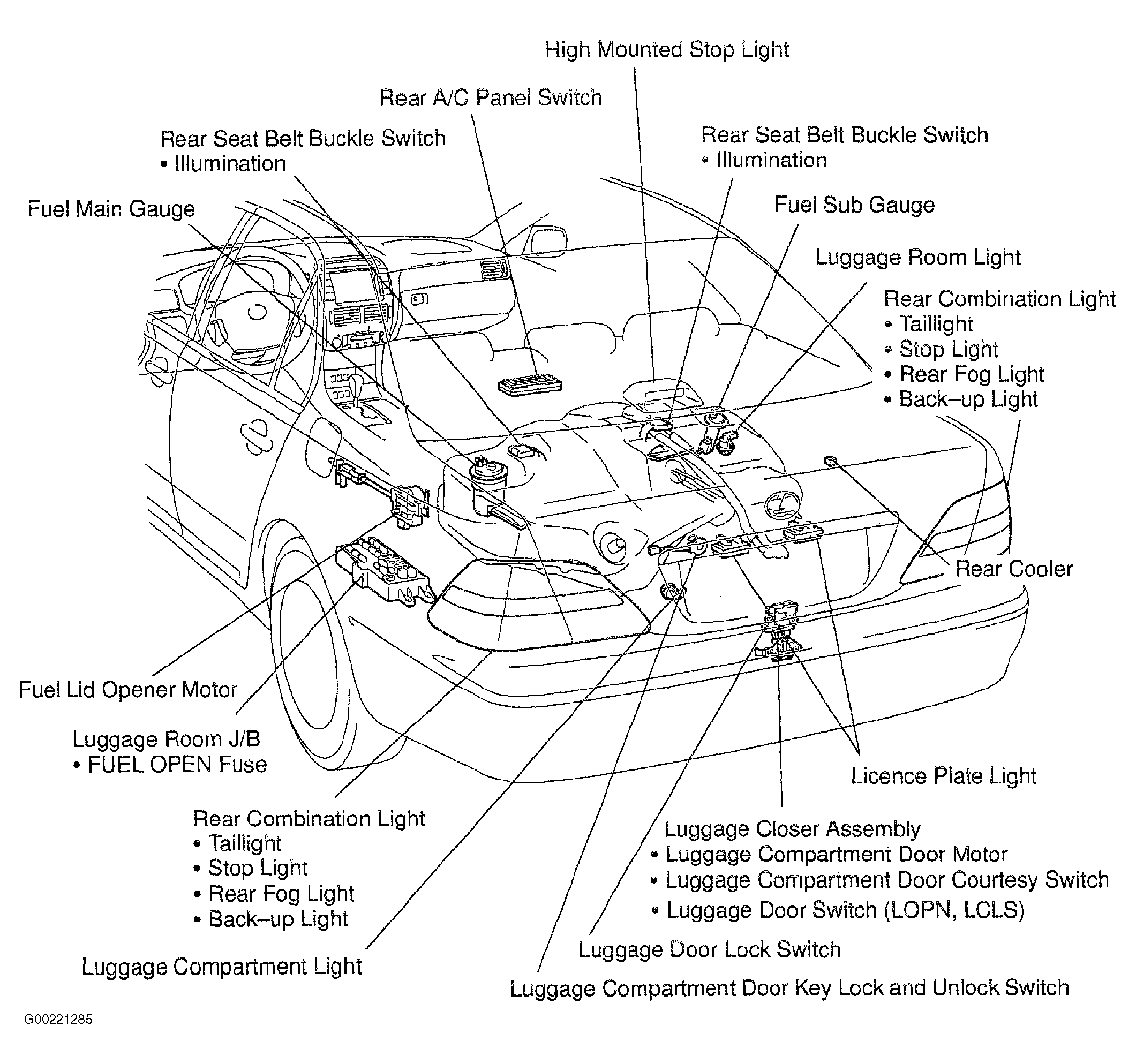

Fig 3: Identifying Luggage Room Junction Block (Body No. 4) Control System Component Locations (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Luggage Room Junction Block (Body No. 4) Control System Component Locations (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

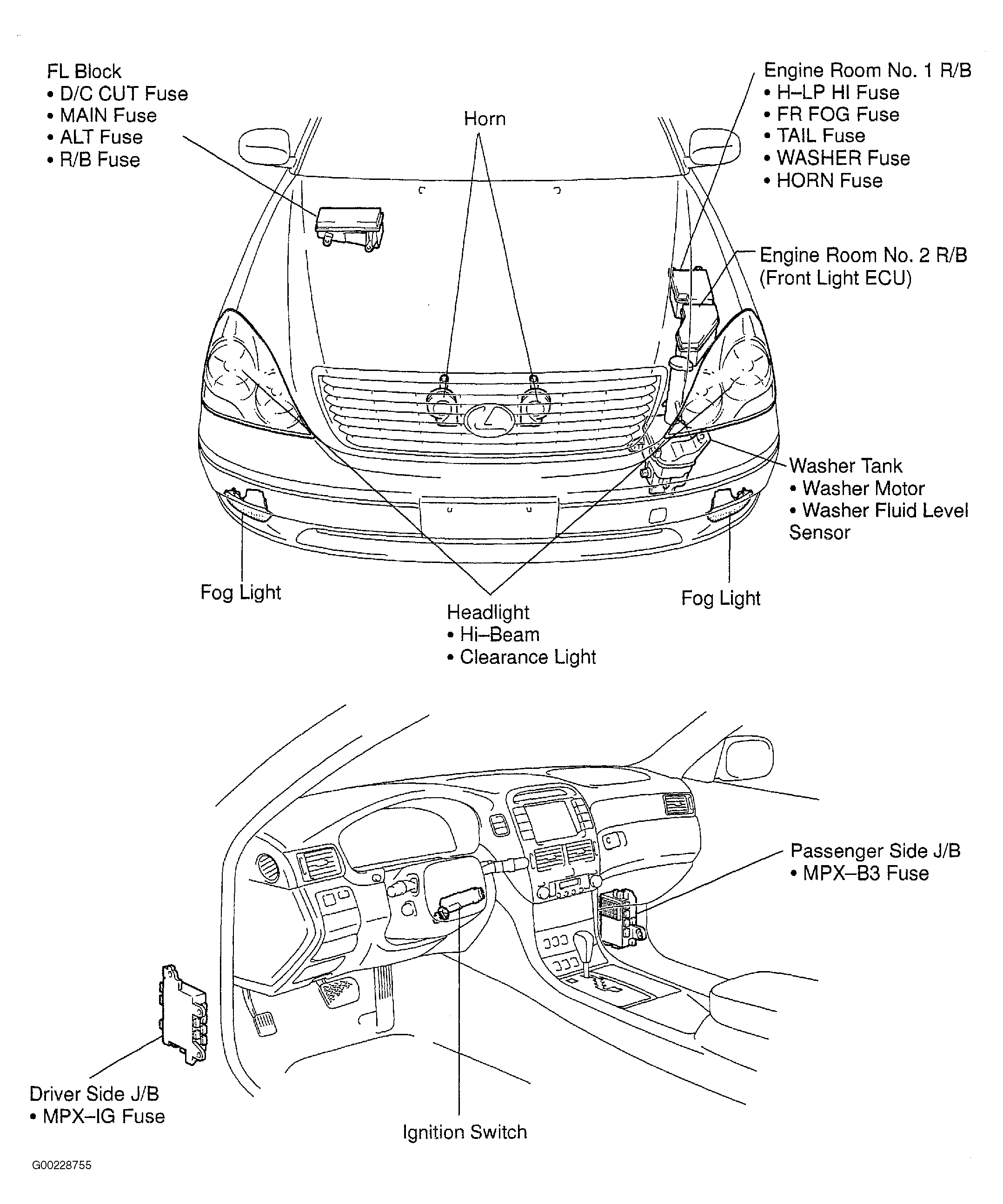

Fig 5: Identifying Front Light (Body No. 5) Control System Component Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
